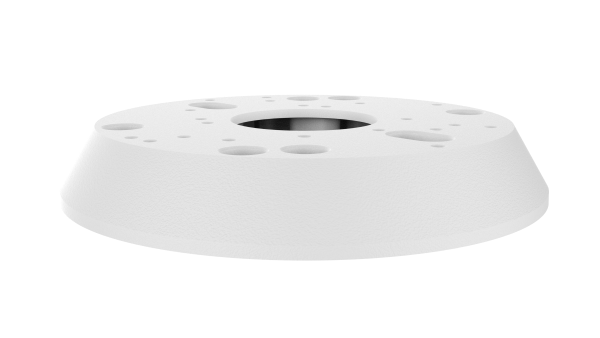

Uniview tr-sm05-in Switch Box Adapter Fixed Dome

Product Description

The UNIVIEW tr-sm05-in is an electric-box transfer plate designed to mount fixed dome IP cameras to a standard electrical switch box. Made from aluminum, this adapter bridges the gap between a flush-mounted switch box and the camera base, providing a clean and secure installation surface. The plate measures 5.0 inches in diameter by 0.7 inches deep and weighs 0.33 pounds. It is intended for use by security system installers and low-voltage technicians working on structured cabling and IP camera deployments in commercial and residential settings.

This adapter is compatible with select UNIVIEW fixed dome camera series including IPC32X Series, IPC361XX Series, IPC21XX Series, IPC231X SB Series, and IPC232X LB Series. It is suited for wall or ceiling installations where an existing electrical box is present and a surface-mount or pendant-mount bracket is not required. The lightweight aluminum construction keeps overall camera assembly weight low, which is important in drop-ceiling and drywall applications.

Key Features

• Aluminum construction for lightweight, durable mounting support
• Designed for use with standard electrical switch boxes
• Compact profile at 5.0 inches diameter by 0.7 inches depth
• Compatible with multiple UNIVIEW IPC fixed dome camera series
• Weighs 0.33 pounds for minimal load on mounting surface

Compatibility

Designed for use with UNIVIEW IPC32X Series, IPC361XX Series, IPC21XX Series, IPC231X SB Series, and IPC232X LB Series fixed dome cameras mounted over a standard electrical switch box.

Installation Notes

Installation should be performed by a qualified low-voltage or security systems technician in accordance with applicable local codes. Disconnect power to the electrical box before beginning any work. Confirm the switch box is rated to support the combined weight of the adapter and camera assembly. Verify camera series compatibility before mounting to avoid misalignment with the camera base footprint.

Technical Specifications

• Application: Electric-box transfer plate for fixed dome cameras
• Bracket Dimensions: 5.0 inches diameter x 0.7 inches depth
• Bracket Weight: 0.33 pounds
• Bracket Material: Aluminum

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: tr-sm05-in
