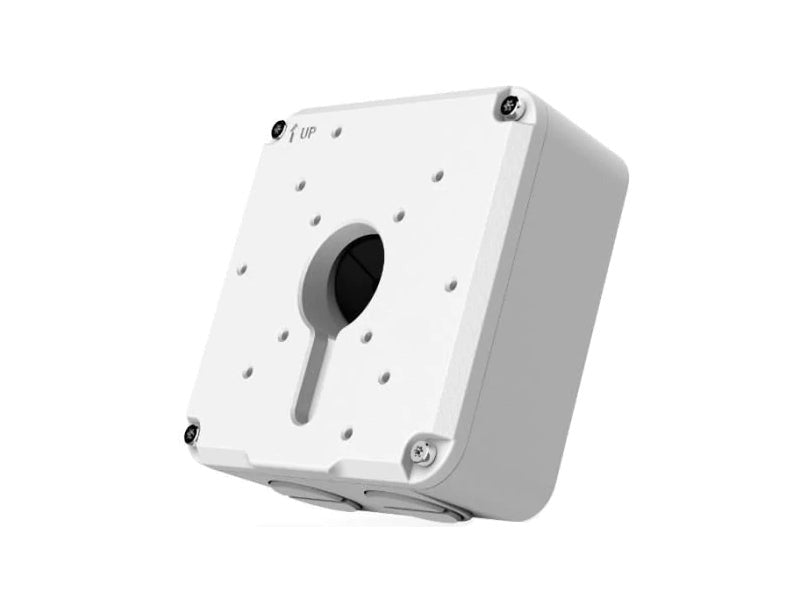

Uniview tr-jb07-d-in Bullet Camera Junction Box

Product Description

The UNIVIEW tr-jb07-d-in is an aluminum alloy junction box designed for bullet-style IP cameras. It provides a weatherproof enclosure for cable terminations and routing, supporting installations where wiring enters from the rear of the mount. Built for both outdoor and indoor use, this box serves as a structural and cable management solution between the camera and the mounting surface. Security installers and low-voltage technicians use this box to keep wiring clean, protected, and code-compliant at the camera head. It measures 4.9 inches by 4.9 inches by 2.2 inches and weighs 1.65 pounds.

This junction box is intended for outdoor or indoor cable junction applications with compatible UNIVIEW IP camera series including IPC23XX, IPC222X, IPC74X, IPC252, and IPC26X models. It is well suited for commercial and residential surveillance installations where surface-mount or wall-mount camera setups require a discrete and secure cable entry point. The rear cable outlet supports wiring from behind, which keeps conduit and cable runs flush against the mounting surface and reduces exposure to the elements.

Key Features

• Aluminum alloy construction for durability in outdoor environments
• Supports rear cable entry for clean, concealed wiring runs
• Rated for both outdoor and indoor installation
• Compatible with multiple UNIVIEW IPC camera series
• Compact profile at 4.9 inches by 4.9 inches by 2.2 inches

Compatibility

Designed for use with UNIVIEW IPC23XX, IPC222X, IPC74X, IPC252, and IPC26X series bullet IP cameras as an outdoor or indoor cable junction box with rear outlet support.

Installation Notes

Installation is typically performed by a licensed low-voltage or security systems technician. Power down the camera and any associated PoE switch or injector before making wiring connections. Secure the junction box to a solid structural surface capable of supporting the camera and mount assembly. Follow local codes and manufacturer guidance for conduit entry, sealing, and weatherproofing at outdoor installations.

Technical Specifications

• Bracket Dimensions: 4.9 inches x 4.9 inches x 2.2 inches
• Bracket Weight: 1.65 pounds
• Material: Aluminum alloy
• Application: Outdoor or indoor cable junction box with rear cable outlet

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: tr-jb07-d-in
