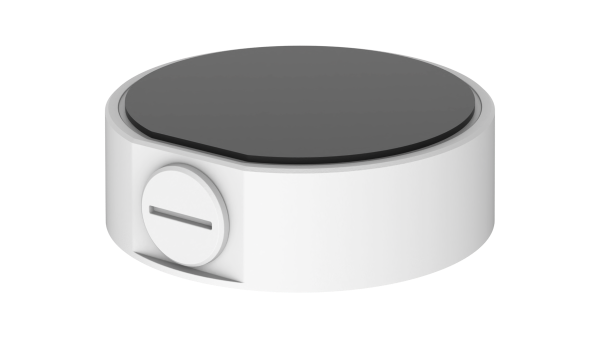

Uniview tr-jb03-i-in Turret Camera Junction Box

Product Description

The UNIVIEW tr-jb03-i-in is a wall-mount junction box designed for turret-style security cameras. It provides a clean, protected enclosure for wiring terminations at the mounting surface, supporting rear-exit wiring so cables route directly through the wall rather than along the surface. The housing is cast from aluminum alloy for durability in typical installation environments. At 4.6 inches in diameter and 1.5 inches deep, it sits flush against the wall and keeps the installation profile low. Security installers and low-voltage technicians use this bracket to achieve a finished, concealed-wiring appearance on fixed-dome and turret camera deployments.

This junction box is intended for wall installation and is compatible with the IPC36XXL Series fixed dome cameras from UNIVIEW. It is suited for both commercial and residential camera installations where rear wiring through the wall is the preferred or required method. The compact form factor makes it appropriate for drywall, concrete, and block wall substrates with appropriate anchoring hardware.

Key Features

• Supports rear-exit wiring to conceal cables within the wall
• Aluminum alloy construction for a rigid, durable mount
• 4.6-inch diameter profile fits standard camera footprints
• 1.5-inch depth accommodates wiring connections behind the camera
• Lightweight at 0.44 pounds, reducing stress on the wall anchor points

Compatibility

Designed for wall installation with the UNIVIEW IPC36XXL Series fixed dome and turret cameras.

Installation Notes

Installation is typically performed by a licensed low-voltage or security systems technician. De-energize all associated camera circuits before making wiring connections inside the box. Anchor selection should be appropriate for the wall substrate — use manufacturer-rated anchors for concrete or masonry installations. Verify local codes and any applicable NEC low-voltage wiring requirements before roughing in the wall penetration.

Technical Specifications

• Application: Wall installation for IPC36XXL Series fixed dome
• Diameter: 4.6 inches
• Depth: 1.5 inches
• Weight: 0.44 pounds
• Material: Aluminum alloy

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: tr-jb03-i-in
