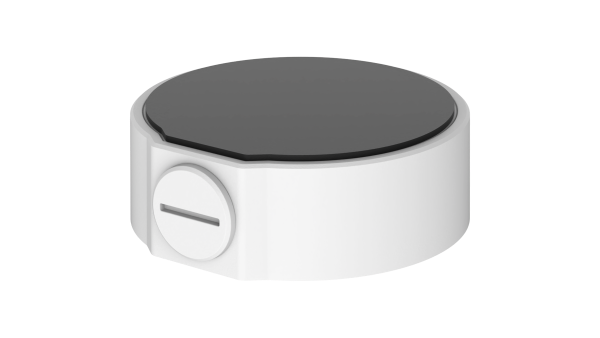

Uniview tr-jb03-g-in Junction Box Mini Fixed Dome

Product Description

The UNIVIEW tr-jb03-g-in is a dedicated junction box designed for use with mini fixed dome security cameras. It provides a clean, code-compliant wiring enclosure that mounts behind the camera dome, routing cables from the rear of the installation point. Constructed from aluminum alloy, the box measures 108.6 mm (approximately 4.3 inches) in diameter and 38.5 mm (approximately 1.5 inches) in depth. It weighs 0.44 pounds. Security system installers and low-voltage technicians use this bracket to satisfy rough-in wiring requirements and protect cable terminations from the elements and physical damage.

This junction box is intended for flush or surface-mount installations where rear-entry wiring is required. It is suited for both commercial and residential surveillance deployments using compatible mini fixed dome cameras. The recessed design keeps cabling concealed within the wall or ceiling structure, resulting in a cleaner finished installation. It pairs with IPC32X Series fixed dome cameras and supports standard conduit or direct-wire rough-in configurations.

Key Features

• Rear wiring support for clean, concealed cable routing
• Aluminum alloy construction for durability and corrosion resistance
• Compact profile at 4.3 inches diameter by 1.5 inches depth
• Lightweight at 0.44 pounds for easy overhead or wall installation
• Designed as a purpose-built accessory for IPC32X Series fixed dome cameras

Compatibility

Designed as a junction box accessory for the UNIVIEW IPC32X Series fixed dome cameras, supporting rear-entry wiring configurations.

Installation Notes

Installation is typically performed by a licensed low-voltage or security systems technician. Power down and de-energize all related camera circuits before beginning the rough-in process. Ensure the mounting surface is capable of supporting the camera and junction box assembly. Local codes and NEC guidelines should be followed for all wiring terminations and conduit connections.

Technical Specifications

• Application: Junction box for IPC32X Series fixed dome cameras
• Bracket Dimensions: 4.3 inches diameter x 1.5 inches depth
• Bracket Weight: 0.44 pounds
• Bracket Material: Aluminum alloy

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: tr-jb03-g-in
