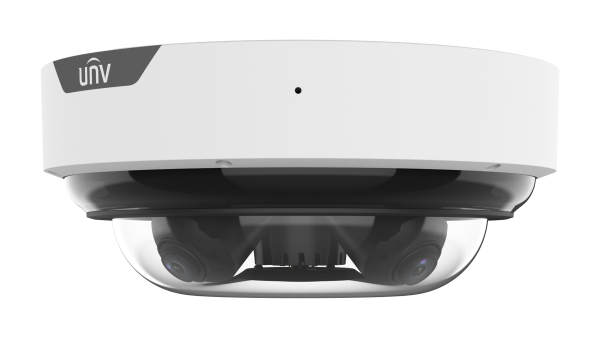

Uniview ipc8645ea-adzkm-i1 20MP Panoramic Dome Camera

Product Description

The UNIVIEW ipc8645ea-adzkm-i1 is a 20MP four-directional panoramic dome network camera designed for high-detail surveillance in complex commercial and industrial environments. It combines four independent 5MP CMOS sensors on a single IP stream, each with a 2.7 to 13.5 mm motorized varifocal lens and 5X optical zoom. Lighthunter technology delivers usable color imagery down to 0.002 lux, while 130 dB true wide dynamic range keeps footage clear in harsh backlight conditions. Each lens supports independent pan, tilt, and rotation adjustment, giving installers precise coverage control across a wide area. Licensed security integrators and network video system technicians are the primary installers.

This camera is suited for large open spaces requiring multi-zone coverage from a single mounting point, including retail floors, warehouses, transit hubs, lobbies, and perimeter installations. The four-channel video output delivers 2880 x 1620 at 30 fps per channel in the main stream, supporting detailed forensic review. Built-in smart intrusion prevention with false alarm filtering and people counting with crowd density monitoring make it appropriate for both security and operational analytics deployments. IP67 and IK10 ratings qualify it for covered outdoor and semi-exposed locations subject to weather or physical impact.

Key Features

• Four independent 5MP sensors on one IP address, each with individually adjustable pan (0 degrees to 360 degrees), tilt (0 degrees to 65 degrees), and rotation (0 degrees to 355 degrees)
• Lighthunter low-light technology with minimum color illumination of 0.002 lux at F1.2 with AGC on; 0 lux with IR activated
• 130 dB true WDR for clear imaging in high-contrast lighting conditions
• 2.7 to 13.5 mm varifocal lens with 5X optical zoom and F1.2 fixed iris per channel
• Ultra 265, H.265, H.264, and MJPEG compression support
• Smart intrusion prevention with false alarm filtering based on specific target detection
• People flow counting and crowd density monitoring built in
• IP67 weatherproof and IK10 vandal-resistant construction

Compatibility

Designed as an OEM-style network dome camera compatible with ONVIF-compliant video management systems supporting multi-channel IP camera integration.

Installation Notes

Installation should be performed by a licensed security integrator or qualified network video technician familiar with IP camera deployment and PoE or 12V DC power infrastructure. Power down the network switch port or power supply before making any electrical connections. Each lens channel should be aimed and locked independently after mounting to ensure full coverage of the intended zones. Verify local building and electrical codes for conduit and junction box requirements before running cabling.

Technical Specifications

• Max Resolution: 4 x 5MP (20MP total)
• Sensor: 1/2.7 inch CMOS x 4
• Minimum Illumination: Color 0.002 lux (F1.2, AGC on); 0 lux with IR on
• WDR: 130 dB
• Day/Night: IR-cut filter with auto switch (ICR)
• Focal Length: 2.7 to 13.5 mm
• Optical Zoom: 5X
• Iris: F1.2 fixed x 4
• Field of View (H): 110.3 degrees (wide) to 31 degrees (tele)
• Field of View (V): 57.1 degrees (wide) to 17.5 degrees (tele)
• Field of View (D): 143.4 degrees (wide) to 38.1 degrees (tele)
• Adjustment Angles: Pan 0 degrees to 360 degrees, Tilt 0 degrees to 65 degrees, Rotate 0 degrees to 355 degrees
• S/N Ratio: Greater than 56 dB
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Ingress Protection: IP67, IK10

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc8645ea-adzkm-i1
