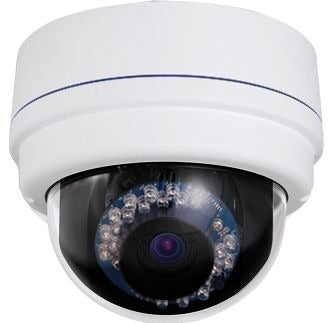

Uniview ipc324er3-dvpf28-black 4MP Fixed Dome Ip Camera

Product Description

The UNIVIEW ipc324er3-dvpf28-black is a 4-megapixel fixed dome IP camera designed for outdoor surveillance installations. Built around a 2.8mm fixed lens, it delivers wide-angle coverage with integrated infrared illumination for day and night operation. The camera supports dual streaming, allowing simultaneous high-resolution recording and lower-bandwidth live viewing. Digital wide dynamic range helps maintain image clarity in scenes with mixed lighting. Power over Ethernet (PoE) eliminates the need for a separate power run, simplifying cable management at the install point. Licensed security integrators and low-voltage technicians are the primary installers.

This camera is suited for outdoor perimeter and entry-point coverage on both residential and light commercial properties. The fixed 2.8mm lens provides a wide field of view appropriate for monitoring doorways, parking areas, and building exteriors. The compact dome form factor mounts to ceilings or soffits and blends into most architectural environments. Its weatherproof and impact-resistant housing makes it a practical choice for exposed mounting locations subject to weather exposure or vandal risk.

Key Features

• 4-megapixel resolution for high-detail image capture
• 2.8mm fixed lens with infrared illumination for 24-hour operation
• Dual streaming supports simultaneous recording and live view
• Power over Ethernet (PoE) for single-cable installation
• IP66-rated housing for protection against dust and water ingress
• IK10-rated housing for resistance to vandal impact
• 3-axis lens adjustment for precise aiming after mounting
• Digital wide dynamic range for improved image quality in high-contrast scenes

Compatibility

Designed as an OEM-style fixed dome IP camera for use with PoE-capable network video recorders and IP surveillance systems supporting standard ONVIF or RTSP protocols.

Installation Notes

Installation should be performed by a licensed low-voltage or security systems technician in accordance with local electrical codes. Power down the network switch port or PoE injector before making or breaking the Ethernet connection at the camera. Mount the housing securely to a structural surface before finalizing 3-axis lens position to ensure the aimed field of view is locked in without play. Verify the IP66 cable entry seal is properly dressed to maintain the housing weatherproof rating.

Technical Specifications

• Resolution: 4 megapixel
• Lens: 2.8mm fixed
• IR Night Vision: Yes
• Dynamic Range: Digital wide dynamic range
• Streaming: Dual stream
• Power Input: Power over Ethernet (PoE)
• Weatherproof Rating: IP66
• Impact Rating: IK10
• Lens Adjustment: 3-axis
• Housing Color: Black

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc324er3-dvpf28-black
