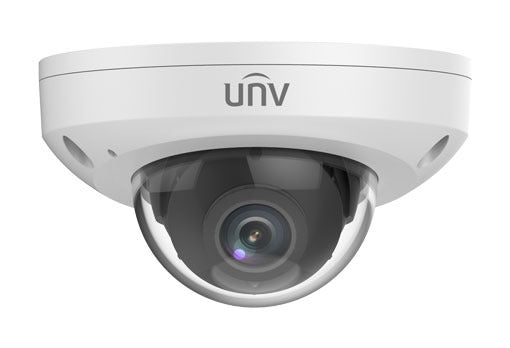

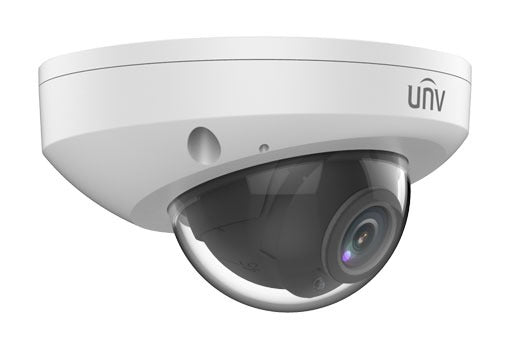

Uniview ipc314sb-adf28k-i0 4MP Mini Dome Ip Camera

Product Description

The UNIVIEW ipc314sb-adf28k-i0 is a 4-megapixel fixed mini dome IP camera built for professional security installations requiring reliable imaging across a wide range of lighting conditions. Featuring a 1/3-inch CMOS sensor, it delivers 4MP resolution at up to 30 frames per second. LightHunter technology maximizes image clarity in low-light environments, while 120dB true wide dynamic range (WDR) handles high-contrast scenes with bright backgrounds. The built-in smart IR illuminator reaches up to 30 meters. Licensed security integrators and surveillance technicians are the primary installers for this unit.

This camera is suited for both indoor and outdoor applications in commercial and residential security systems. The fixed 2.8mm lens and compact mini dome form factor make it appropriate for ceiling-mounted coverage in lobbies, hallways, retail spaces, and perimeter installations. Support for 9:16 corridor mode makes it well-matched to narrow passage monitoring. Smart intrusion prevention analytics — including cross line, intrusion, enter area, and leave area detection — use target classification to focus alerts on humans, motor vehicles, and non-motor vehicles, reducing false triggers from environmental noise such as foliage, birds, and lighting changes.

Key Features

• 4MP 1/3-inch CMOS sensor at up to 2688 x 1520 resolution, 30 fps
• LightHunter technology for low-illumination high-quality imaging
• 120dB true WDR for clear imaging in strong backlight conditions
• Smart IR illumination up to 30 meters (98 feet)
• Smart intrusion prevention with human and vehicle target classification
• IK10 vandal resistance and IP67 weatherproof rating
• Supports Ultra 265, H.265, H.264, and MJPEG compression codecs
• Built-in microphone and 9:16 corridor mode support

Compatibility

Designed as an OEM-style network dome camera compatible with PoE-enabled NVR systems and network switches that supply IEEE 802.3af power over Ethernet. Supports Micro SD cards up to 256GB for onboard edge recording.

Installation Notes

Installation should be performed by a licensed security or low-voltage technician in accordance with local electrical codes. Power down the PoE switch port before making network cable connections. The 3-axis gimbal allows precise field-of-view adjustment after mounting — set the viewing angle before final tightening. Confirm IP67 gasket seating and conduit seal integrity on outdoor installations to maintain the weatherproof rating.

Technical Specifications

• Resolution: 4MP (2688 x 1520) at 30/25 fps
• Sensor: 1/3-inch CMOS
• IR Range: Up to 30 meters (98 feet)
• Wide Dynamic Range: 120dB true WDR
• Video Compression: Ultra 265, H.265, H.264, MJPEG
• Power Supply: PoE (Power over Ethernet)
• Onboard Storage: Micro SD up to 256GB
• Ingress Protection: IP67
• Impact Resistance: IK10
• Mount Type: 3-Axis
• Audio: Built-in microphone

Standard Information

• Brand: UNIVIEW
• Manufacturer Part Number: ipc314sb-adf28k-i0
