United Electric Controls H100-171 Pressure Switch

Product Description

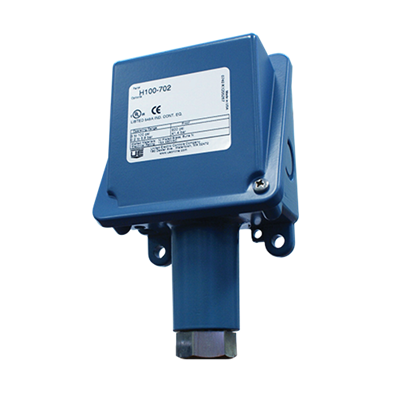

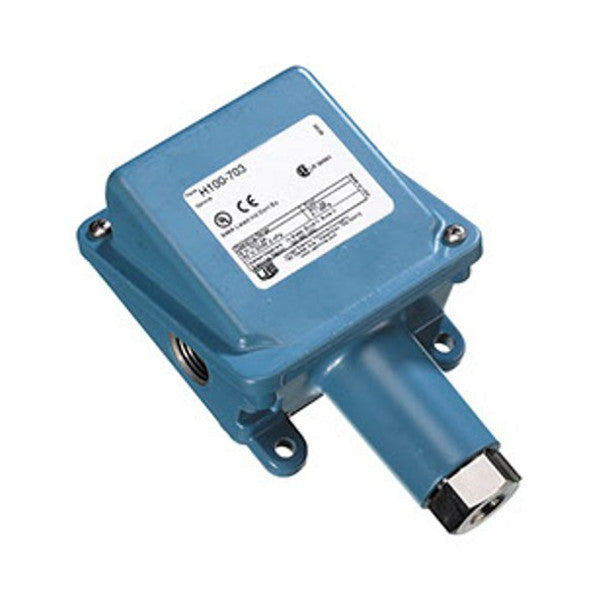

The United Electric Controls H100-171 is a durable pressure switch made for process plants and OEM equipment. It features a sturdy one-piece enclosure with a slanted cover. The adjustable setpoint range allows operation from one to twenty PSI, making it versatile for different applications. The welded diaphragm is constructed from 316L stainless steel, which enhances durability.

• Adjustable setpoint range: 1 to 20 PSI
• Welded 316L stainless steel diaphragm
• Epoxy-coated, gasketed cast aluminum NEMA 4X enclosure

Product Highlights

This product is designed to handle various pressures effectively while remaining reliable and safe in operation.

Product Information

Standard Information

• Brand: UNITED ELECTRIC CONTROLS
• MPN: H100-171

Technical Specifications

• Product Type: Pressure Switch
• Product Family: 100 Series
• Media Compatibility: Air
• Pressure Range: 1 to 20 psi
• Contact Type: SPDT
• Contact Rating: 15 A @ 125 VAC, 15 A @ 250 VAC, 15 A @ 480 VAC
• Supply Voltage (Nominal): 240 VAC
• Accuracy: 1%
• Wetted Materials: Stainless Steel
• Enclosure Rating: NEMA 4X
• Setpoint Adjustment Type: Internal Adjustment with Reference Scale
