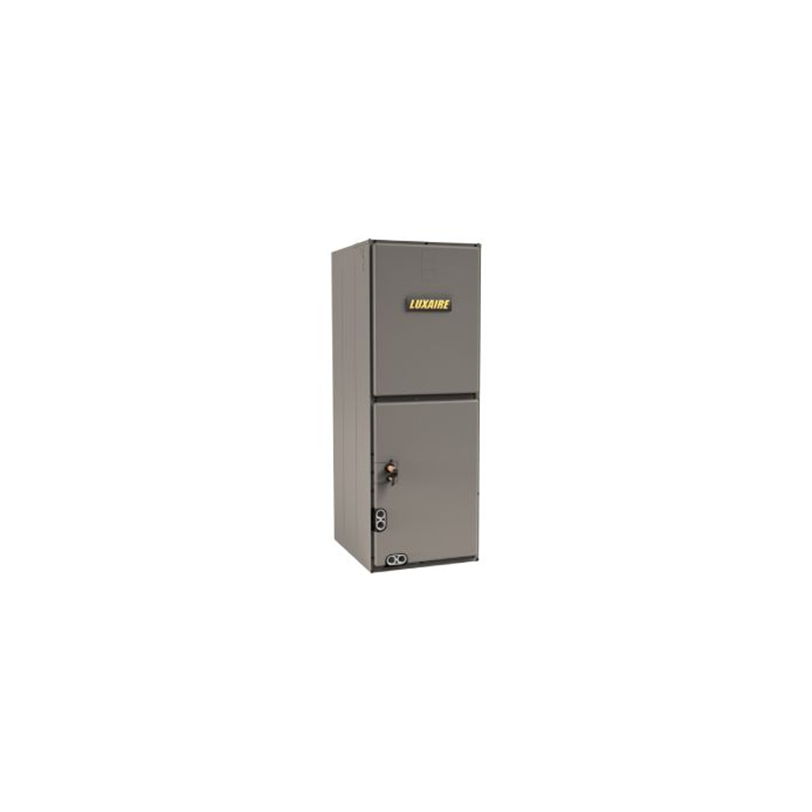

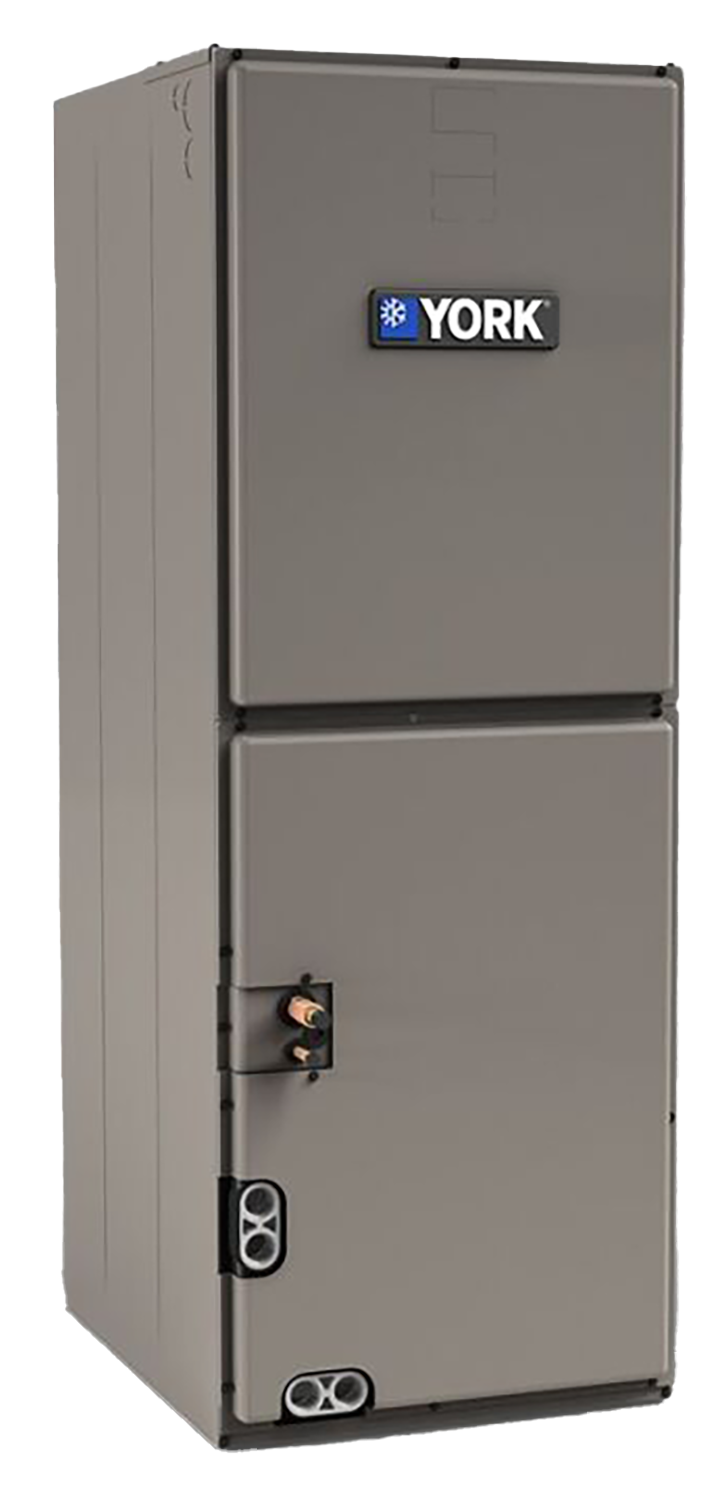

Unitary Products Group JHE60C5CH2SS1 Air Handler

Product Description

The Unitary Products Group JHE60C5CH2SS1 air handler is built to deliver consistent comfort and operational quietness. It supports multiple installation configurations, including upflow, downflow, horizontal right, or horizontal left, all without needing additional kits. The unit comes with a factory-installed Thermal Expansion Valve (TXV) for optimal refrigerant flow. Designed as a single-piece model, it features a standard Electronically Commutated Motor (ECM) that improves efficiency and reduces energy use.

• Multi-position installation capabilities.
• Factory-installed TXV for optimal performance.
• Standard ECM motor enhances efficiency.

Product Highlights

This air handler is suitable for diverse applications, making it a versatile choice for HVAC professionals.

Product Information

Standard Information

• Model: JHE
• Tonnage: 5

Technical Specifications

• Fan Motor: Standard ECM
• Configuration: Single Piece
• Phase: 1-Phase
• Voltage: 208/230
• Metering Device: BC TXV
• Brand: YORK
• Series: LX
• Refrigerant: R-454B
• Nominal Capacity: 5 Tons
• Nominal CFM: 1800 CFM
• Supply Voltage: 208V, 230V
• Liquid Line (OD): 3/8
• Vapour/Gas Line (OD): 7/8
• Air Flow Direction: Multi-Position
• Hertz: 60Hz
• Horsepower: 3/4 HP
