Unitary Products Group CU24BXA1 2T Uncased Coil 17.5

Product Description

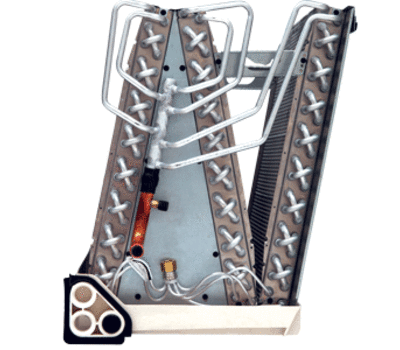

The Unitary Products Group CU24BXA1 is a two-ton uncased indoor fan coil designed for effective use with UPG furnaces and modular air handlers. This unit seamlessly pairs with UPG cooling units and heat pump outdoor systems. It is a flex coil model that can accommodate R-410A or R-22 refrigerants without a factory-installed metering device, allowing for installation flexibility.

• Two-ton cooling capacity
• Flex coil allows use with R-410A or R-22
• Compatible with UPG furnaces and outdoor units

Product Highlights

This coil is ideal for HVAC systems needing adaptable installation without a metering device. A piston or TXV metering device can be included to meet the requirements of your specific system.

Product Information

Standard Information

• Brand: Unitary Products Group
• MPN: CU24BXA1

Technical Specifications

• Cooling Capacity: 24000 BTU
• Dimensions: 16-3/8 inches width
• Type: Uncased coil
• Refrigerant Options: R-410A or R-22
