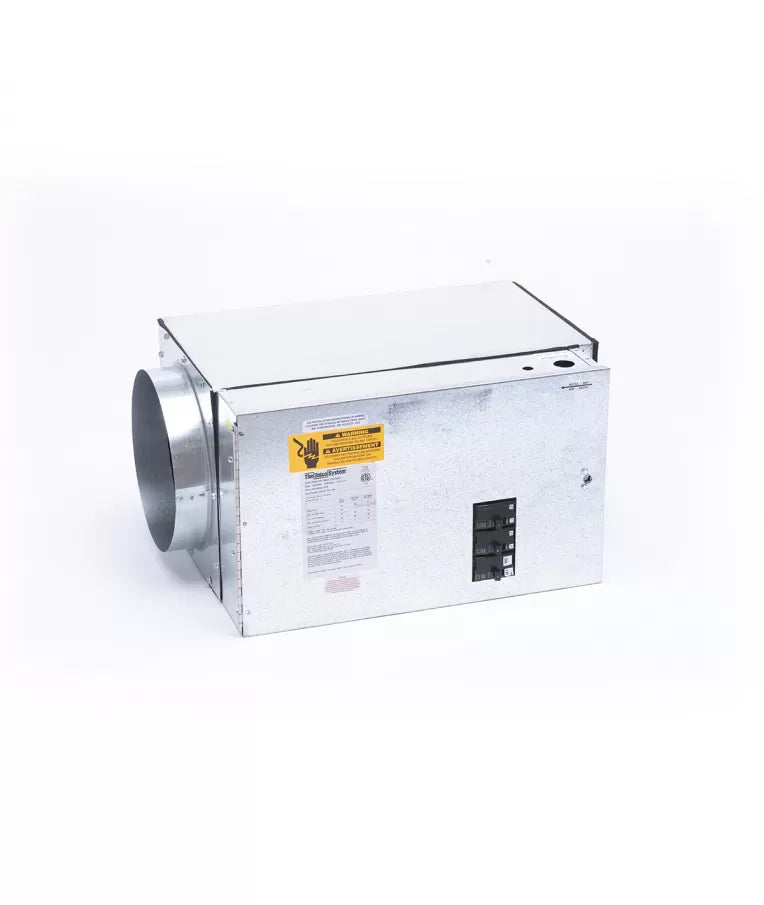

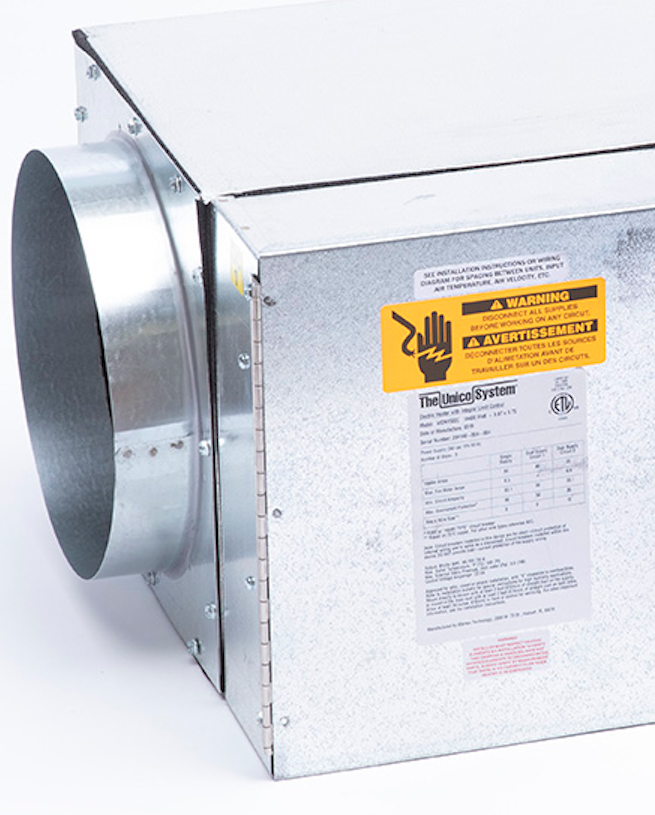

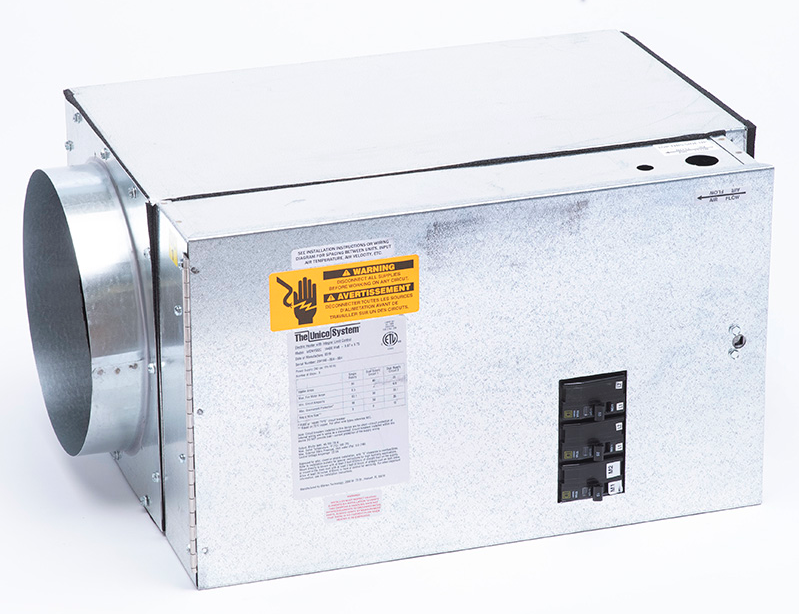

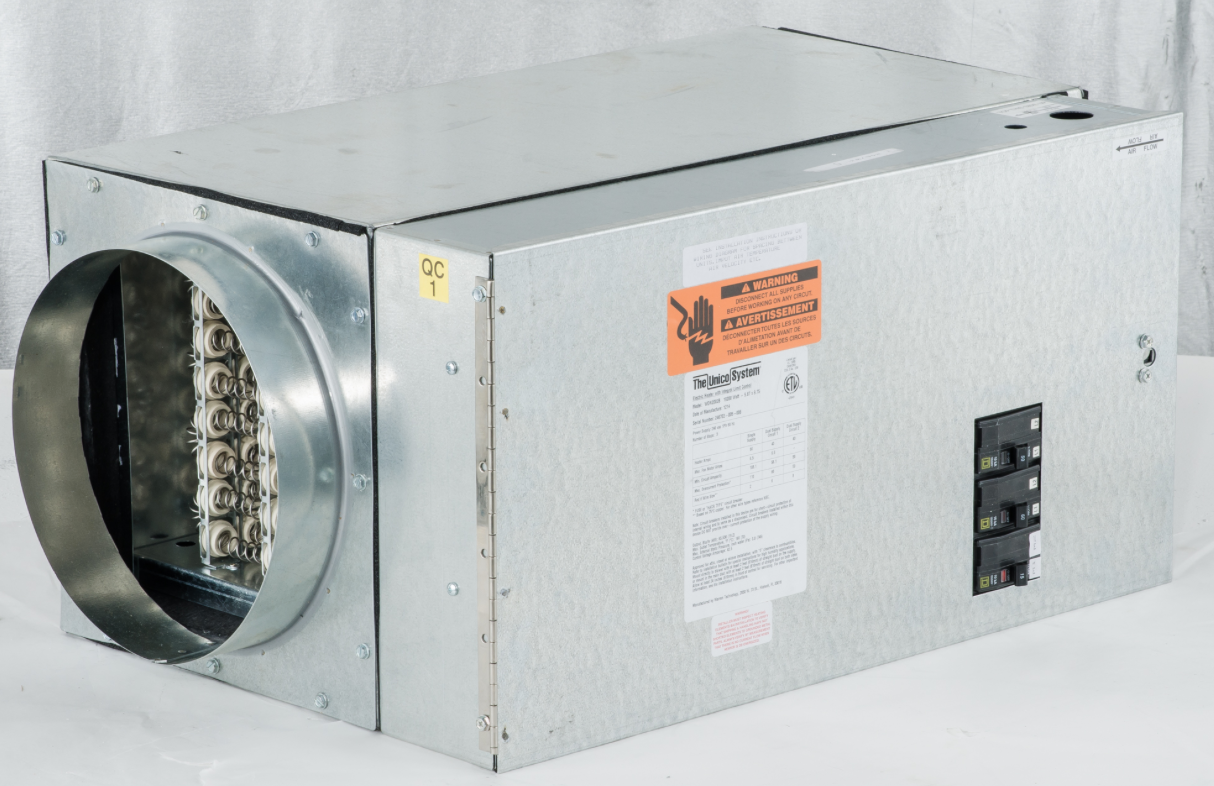

UNICONTROL WON1502-C Electric Furnace 15kW 1P/230V

Product Description

The UNICONTROL WON1502-C is a reliable electric furnace module that connects to blower units or can be installed directly in the supply air duct. Operating at 15kW and 230V, it is designed to provide efficient heating. Key features include multiple safety systems to ensure reliable operation.

• Can be attached directly to blower units or installed as a duct heater.
• Rated for 15 kW at 230 volts single phase.
• Includes multiple safety features such as pressure air proving switch and auto temperature limit.

Product Highlights

This electric furnace is equipped with essential safety features and is compatible with various air handlers.

Product Information

Standard Information

• Brand: UNICONTROL
• MPN: WON1502-C

Technical Specifications

• Air Handler Compatibility: 2430, 3036, 3642, 4860
• Min Air Flow: 600 CFM (0.28 m3/s)
• Nominal Capacity: 51,180 Btu/hr (15.0 kW)
• Power Supply: 230/1/60
• Certifications: ETL
• Voltage: 240 Volts
