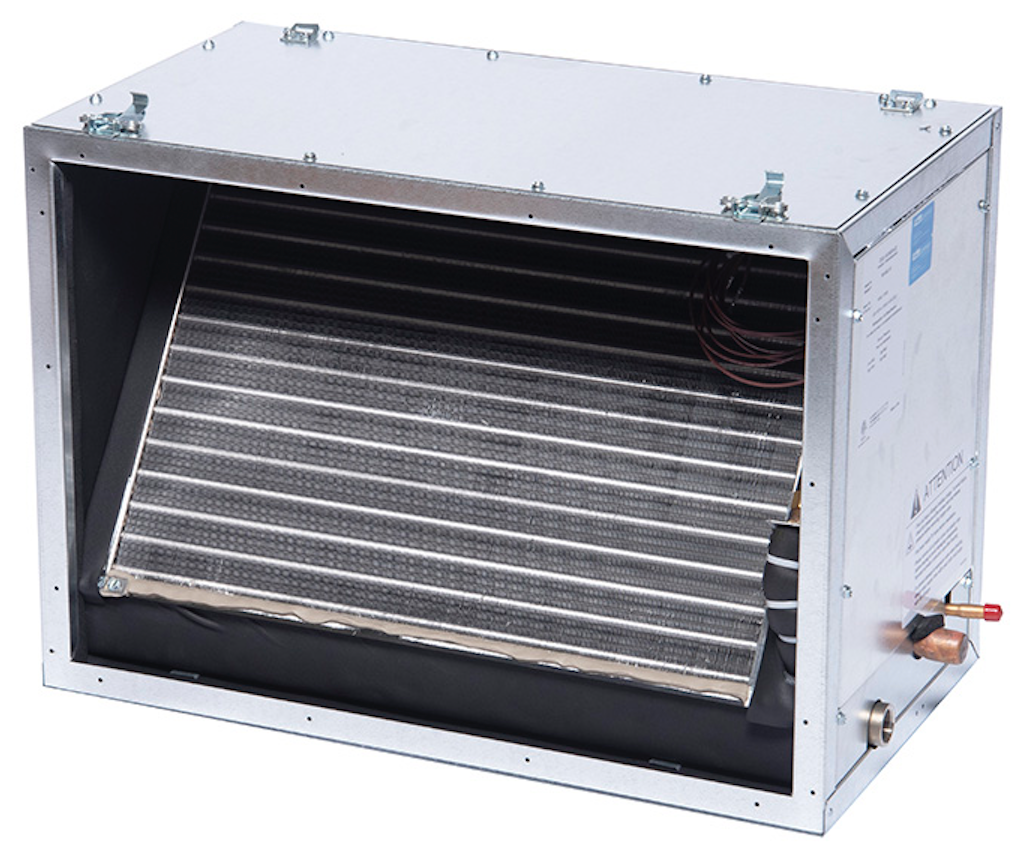

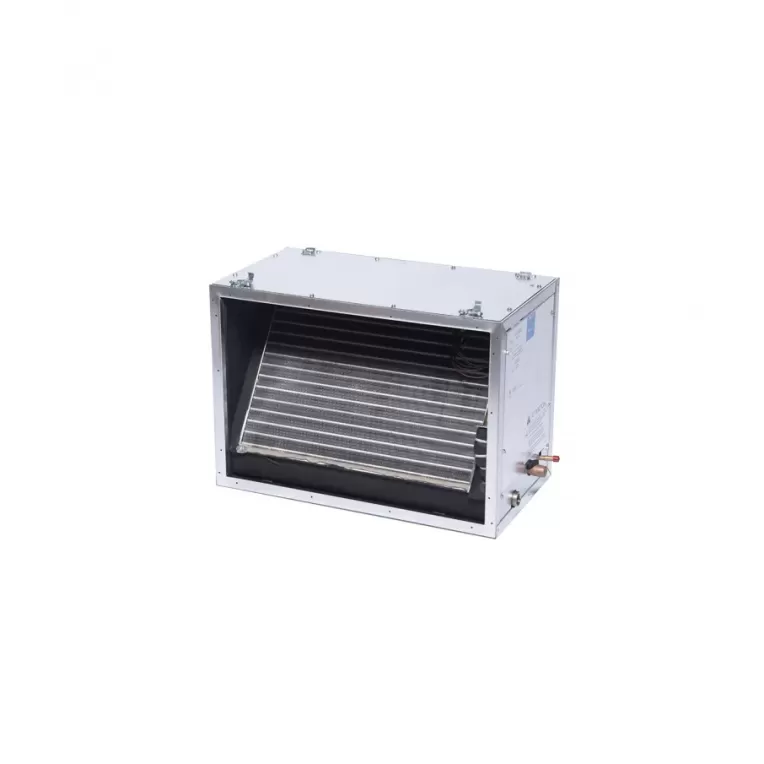

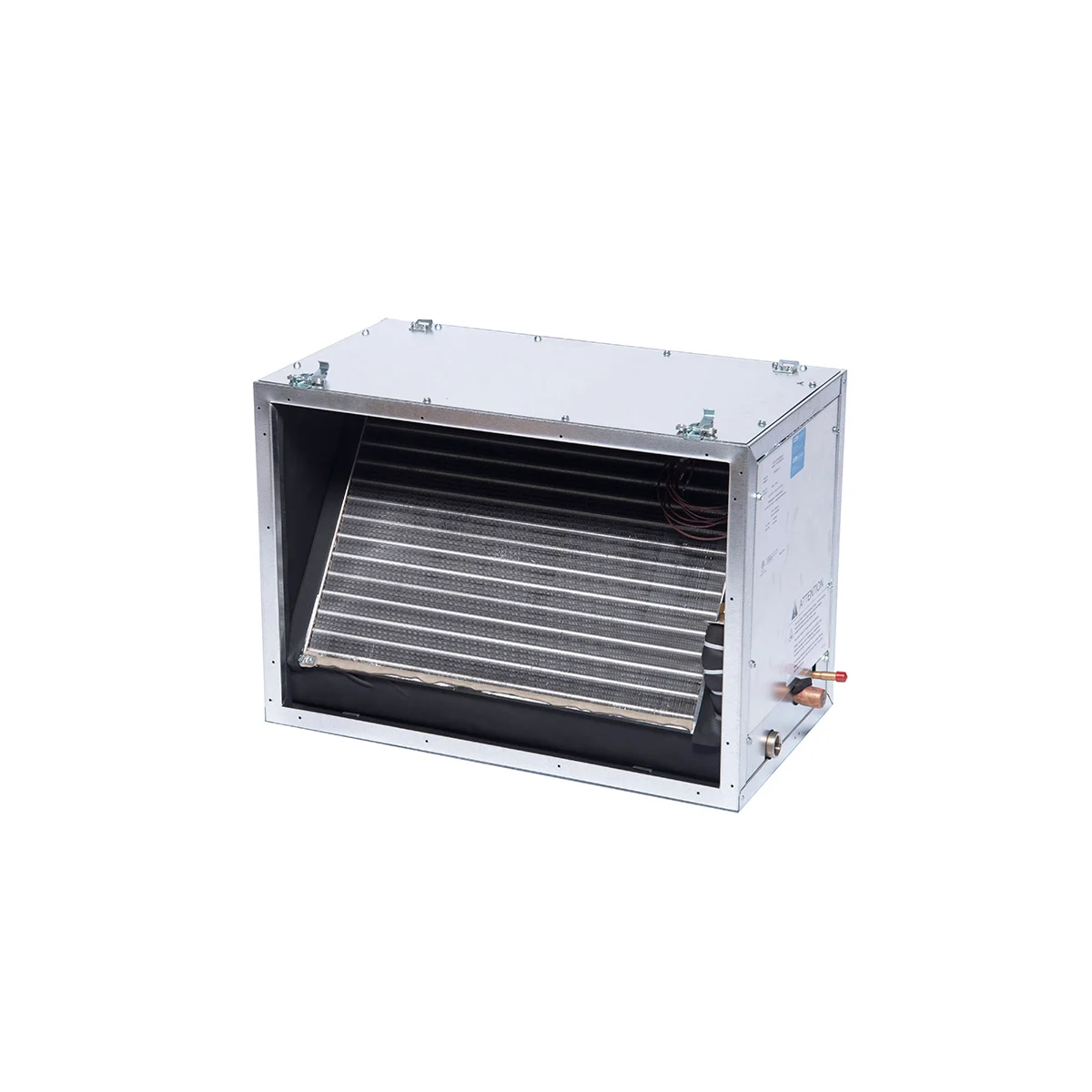

Unico M2430CL1-E-R M2430 E Refrigerant Coil Module 2.0-2.5 Ton

Product Description

The UNICO M2430CL1-E-R is a refrigerant coil module designed for indoor coil replacement in AC/HP systems. This air handler features a compact and durable cabinet, facilitating installation in tight spaces. It offers a cooling capacity of 2.0-2.5 tons and an airflow range of 200 to 700 CFM, suitable for various residential and commercial applications. The module includes a 24-volt control board for HVAC system integration and an insulated cabinet for reduced noise.

• Modular construction allows for multiple configurations and flexible installation.
• Suitable for use as cooling only or in heat pump applications.
• Features enhanced aluminum fins and copper tubes for efficient heat transfer.
• Equipped with a 24-volt control board for seamless HVAC system integration.

Product Highlights

2.0-2.5 Ton refrigerant coil module with R410A compatibility and stainless steel drain pan.

Product Information

Standard Information

• Brand: UNICO
• Manufacturer Part Number: M2430CL1-E-R

Technical Specifications

• Product Code: M2430CL1-E-R
• Manufacturer: Unico
• SKU: M2430CL1-E-R
• Nominal Capacity: 30,000 Btu/hr (8.7 kW)
• Air Flow Range: 200 to 700 CFM
• Model Series: M-Series
• Unico Model: 2430
• Coil Type: Refrigerant
• Material: Multiple
• Installation Orientation: Horizontal, Vertical Upflow
• Certifications: ETL
• Spare Part Type: Coil
• Tonnage: 2.0-2.5 Ton
• Control Board Voltage: 24-volt
• Module Type: Refrigerant Coil Module
• Handing: Left Hand
• Coil Rows: 6 (Heat Pump), 4 (Cooling)
• Refrigerant Compatibility: R410A, R22/R-407C
• TXV Type: Internally Mounted R410A with Chatleff Thread Connections
• Drain Pan Material: Stainless Steel
• Freezing Prevention: Two Bi-metal Switches
• Heat Transfer Efficiency: High
• Mounting Method: Standard Unico System Latch

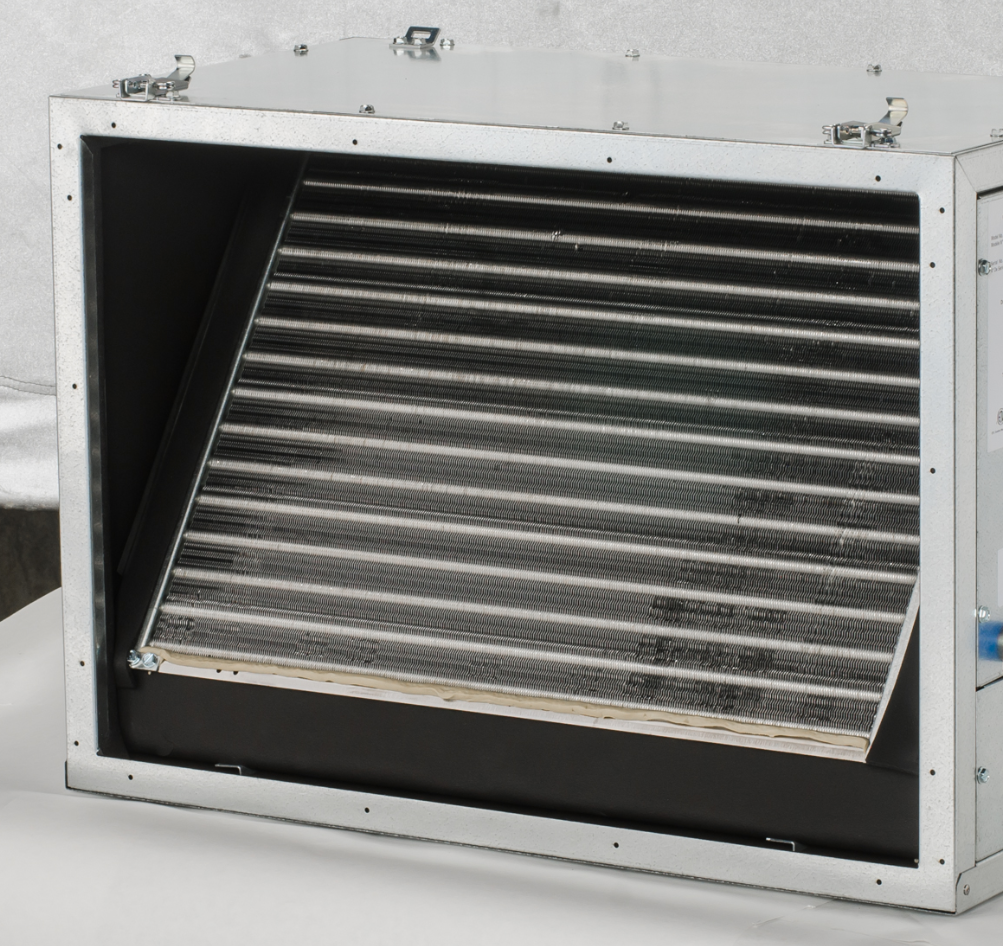

• Coil Design: Slant coil
