Unico A02701-K01 Transformer Replacement Kit 120-208-230V/24V 48VA

Product Description

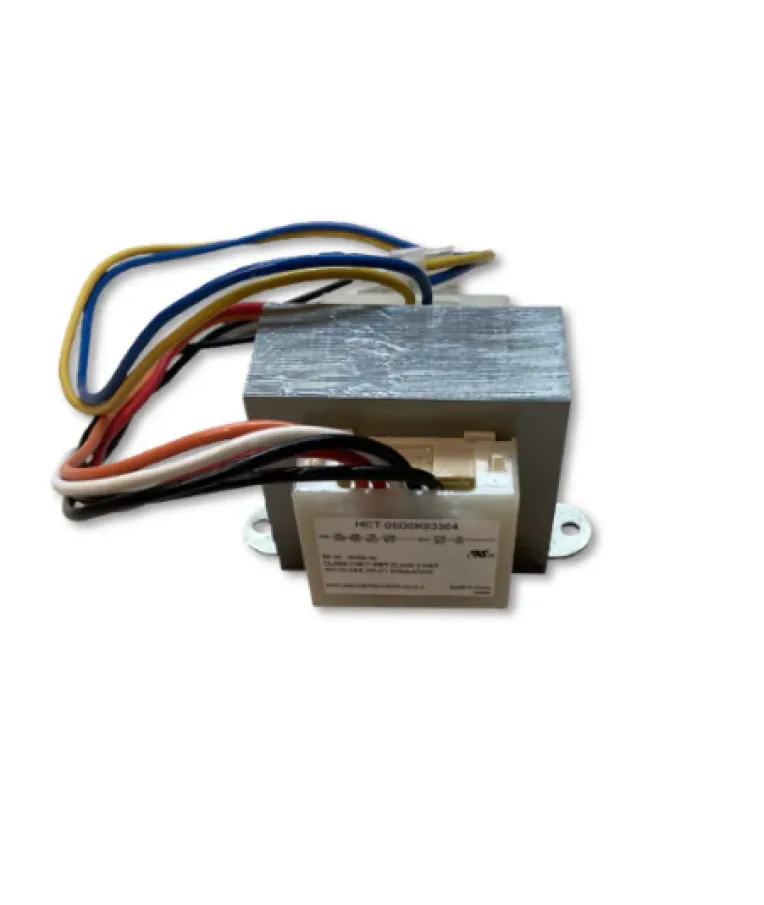

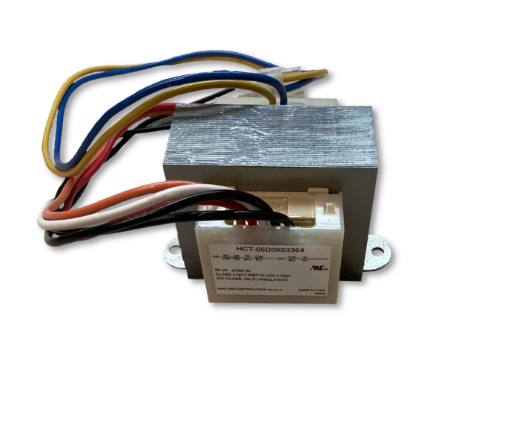

The UNICO A02701-K01 is a dual voltage transformer kit designed for transformer replacements in ST2 or EC control boxes. This kit includes an A00057-G06 Dual Voltage Transformer with 120-208-230V input and 24V output, rated at 48VA. It also comes with low-voltage and high-voltage wire harness adapters, facilitating installation and compatibility. The transformer supports both 120V and 208/230V line voltages, making it versatile for various Unico systems.

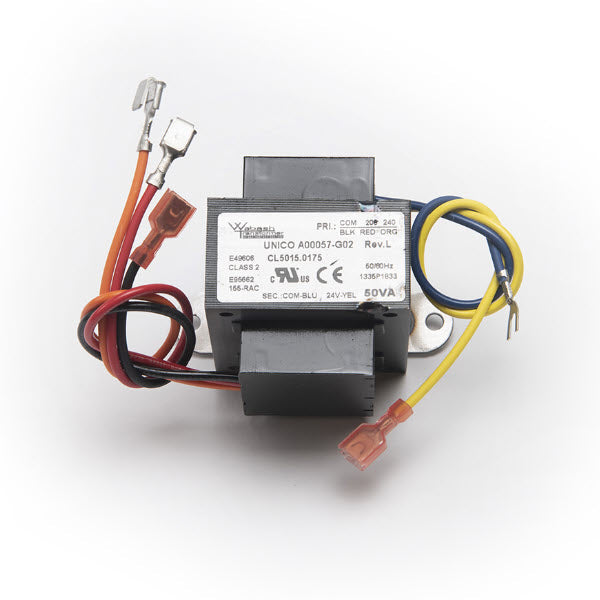

• Replaces older transformer codes A00057-GO5, A00057-GO6, and A00057-G04.
• Designed for ST2 or EC control boxes, supporting 120V or 208/230V line voltage.

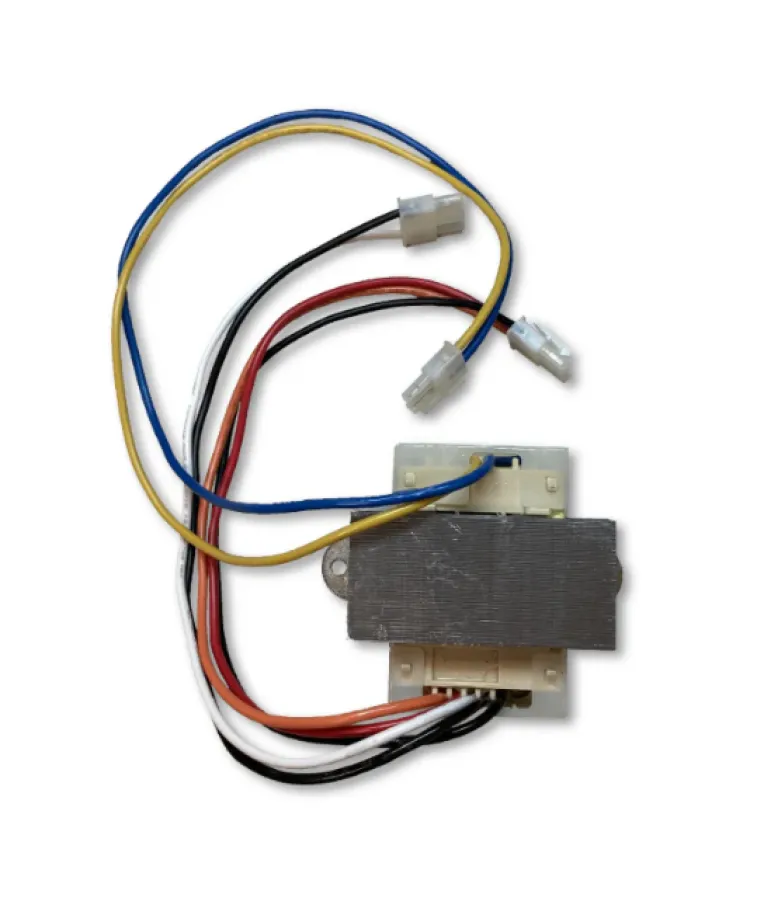

• Includes A00057-G06 Dual Voltage Transformer, low-voltage, and high-voltage wire harness adapters.

Product Highlights

The UNICO A02701-K01 kit offers a versatile dual voltage transformer solution for Unico ST2 and EC control boxes, ensuring broad compatibility and easy installation.

Product Information

Standard Information

• Brand: UNICO
• Manufacturer Part Number: A02701-K01

Technical Specifications

• MPN: A02701-K01
• Brand: Unico
• Kit Type: Dual Voltage Transformer kit
• Application: Transformer replacements in ST2 or EC control boxes
• Transformer Model: A00057-G06
• Input Power Supply: 120/1/60, 208-230/1/60, 230/1/60
• Output Voltage: 24V
• VA Rating: 48VA
• Included Components: 1 Dual Voltage Transformer (A00057-G06), 1 Low-voltage wire harness adapter, 1 High-voltage wire harness adapter
• Compatible Unico Models: 1218, 2430, 3036, 3642
• Compatible Tonnage: 1.0-Ton, 1.5-Ton, 2.0-Ton, 2.5-Ton, 3.0-Ton, 3.5-Ton, 4.0-Ton, 4.5-Ton, 5.0-Ton
• Compatible Model Series: M-Series, V-Series
• Compatible Motor Type: PSC, EC
• Material: Multiple
• Installation Orientation: Horizontal, Vertical Upflow
• Certifications: UL, RU, CSA, CE
• Spare Part Type: Transformer
• Blower Compatibility: All model blowers
