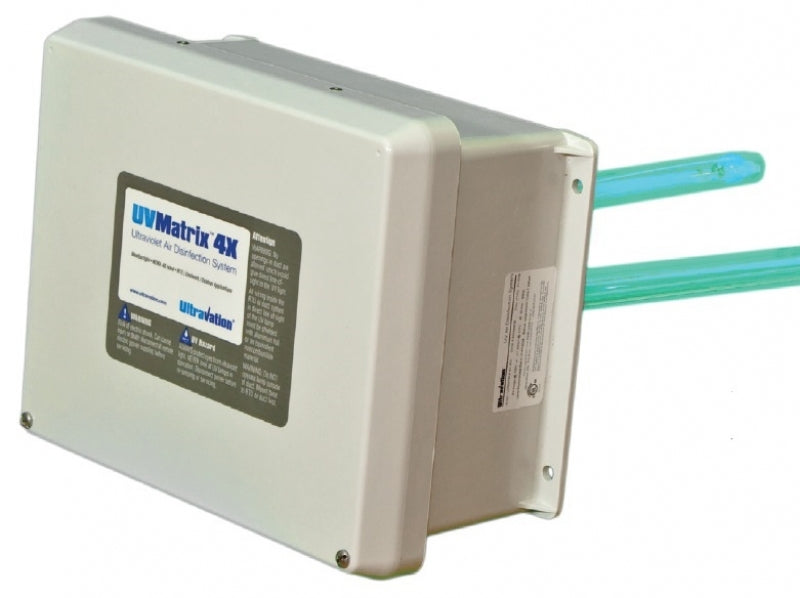

Ultravation UVMATRIX4X-233 Ultravation UVMatrix 4X-233 Outdoor UVC System

Product Description

The Ultravation UVMatrix 4X-233 is a UVC system for outdoor HVAC air handlers. This system is built with a NEMA 4X fiberglass enclosure that ensures a weathertight fit, making it suitable for various environmental conditions. The technology includes Philips UV Lamps with Ultravation T3 Thermal Optimization, which maximizes output even in cold settings. The T3 UV Lamps feature a quartz glass thermal shield to enhance durability.

• NEMA 4X fiberglass enclosure for durability
• Multi-Volt Ballast that supports 120 to 277VAC
• Includes a safety interlock cover system

Product Highlights

The Ultravation UVC system provides effective air treatment, making it ideal for maintaining air quality in HVAC systems.

Product Information

Standard Information

• Brand: Ultravation
• MPN: UVMATRIX4X-233

Technical Specifications

• Enclosure: NEMA 4X Fiberglass Enclosure
• Input Voltage: 120 - 277VAC
• Power Consumption: 0.50A @ 120V
• Safety Features: Safety Interlock Cover System
• Monitoring: Dry Contacts for optional remote monitoring
• Bulb Life Expectancy: 2 years
• Warranty: 10 years (excludes UV bulbs)
