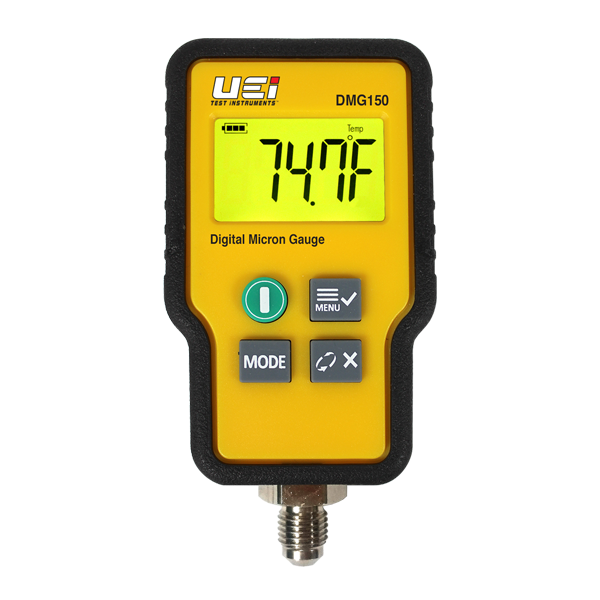

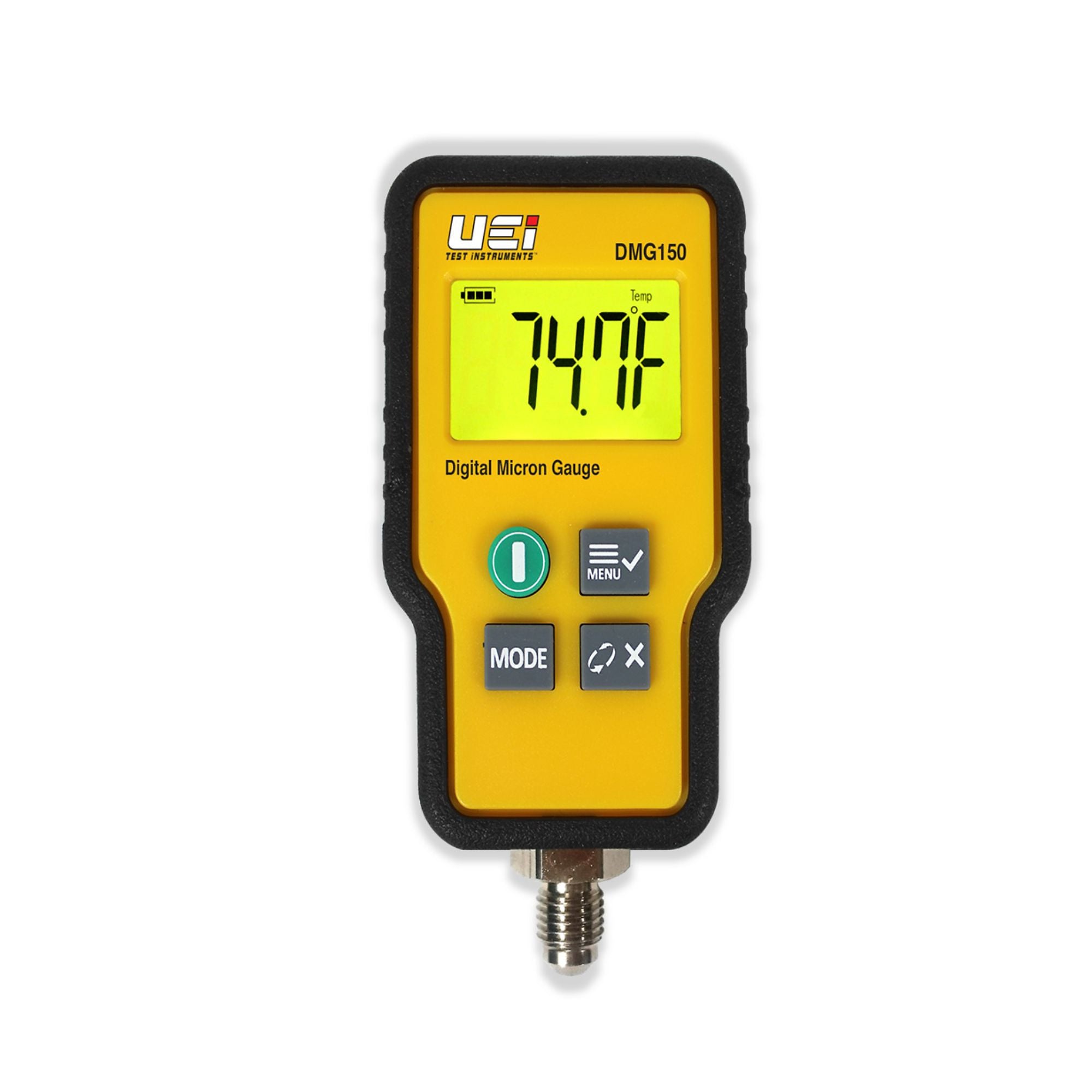

Uei DMG150 Digital Micron Gauge

Product Description

The UEI DMG150 is a Digital Vacuum Gauge with accuracy and precision required by HVAC and refrigeration technicians. It features measurements in 5 units including Microns, Pa, mBar, mmHg and mTorr. The compact, lightweight digital micron gauge offers a professional range from 1 to 15,000 microns.

• Accuracy and precision required by HVAC and refrigeration technicians
• Measurements in 5 units including Microns, Pa, mBar, mmHg and mTorr

Product Highlights

The DMG150 digital micron gauge has an oil contamination and sensor fail indicator, instant warm-up and response time, and a backlit display.

Product Information

Standard Information

• Brand: UEI
• Manufacturer Part Number: DMG150
• Country of Origin: TWN

Technical Specifications

• Accuracy: 0 to 9,999 ±5% ±5 micron; 10,000 to 15,000 ±10% rdg
• Auto Power Off: true
• Brand: UEi
• Display: LCD backlit 5 digits
• Display Options: Backlit
• Display Size: 1.78" x 1.54
• Includes: 45° degree coupler, (1) CR123A battery, manual
• Includes Case: true
• Prop 65: true
• A2L Compatible?: Yes
• Battery Life: 100 Hours
• Measures in: microns, pascals, Millibar, mmHg, mTorr
• Range: 0 to 15,000 microns
• Maximum over pressure: 700 psi
• Resolution: 0.1 micron: <10,000 micron, 1.0 micron: >10,000 micron
• Units: Microns, Pa, mBar, mmHg, Millitorr
• Warm-up Time: Instant
• Response Time: Instant
• Power: CR123A
• Operating Temperature: 10° to 122°F (-12° to 50°C)
• Maximum Overpressure: 500 psi (34.5 Bar; 25857459.06 Microns)
• Port: 4, 45°
