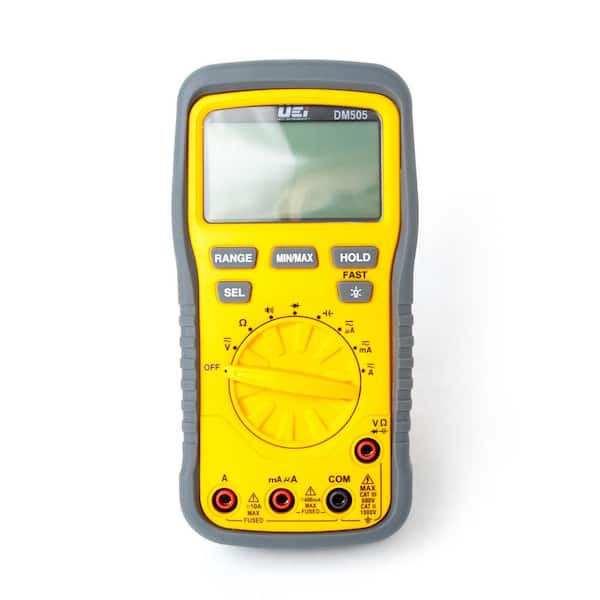

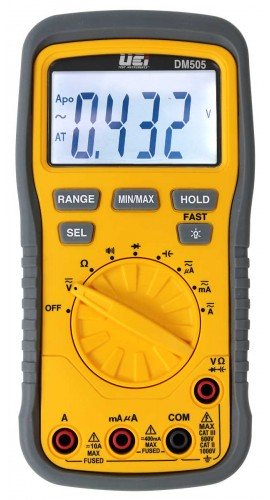

Uei DM505 Digital Multimeter 1000V

Product Description

The UEi DM505 is a 1000V AC/DC digital multimeter with essential functionality. It measures resistance up to 40MΩ, performs diode tests, audible continuity checks and capacitance up to 9999μF. The multimeter features fused test lead inputs and a protective rubber boot with a kick stand.

• Offers auto/manual ranging and auto power off functionality.
• Provides Min/Max readings with a 1ms fast response and a high-resolution backlit display.
• Features 6 ft drop protection and IP42 ingress protection.

Product Highlights

This multimeter is designed for safety and convenience, with features like test lead holders and a low battery indicator.

Product Information

Standard Information

• Brand: UEi
• Manufacturer Part Number: DM505
• Country of Origin: US

Technical Specifications

• Multimeter type: Digital
• Volts: 1000 V
• Brand: UEI Test
• Display: Digital
• Power type: Battery
• Safety Rating: CAT III 600 V/CAT II 1,000 V
• AC Voltage: 1 to 1,000 V
• DC Voltage: 1 to 1,000 V
• AC Amperage: 1 to 10 A
• DC Amperage: 0.001 A to 0.4 A
• AC/DC mV: 6 mV
• AC/DC mA: 400 mA
• DC μA: 600 μA
• AC μA: 600 μA
• Resistance: 40 MΩ
• Capacitance: 10 nF to 9,999 μF
• Display Count: 6000
• Ranging: Auto/manual
• IP Rating: IP42
• Manufacturer Warranty: 2-year limited
• MPN: DM505
• Features: High resolution backlit display
