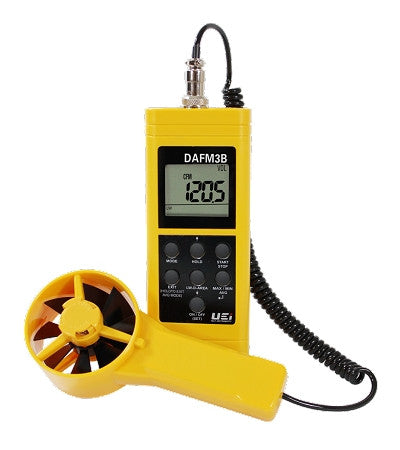

Uei DAFM3 Digital Airflow Meter CFM Anemometer

Product Description

The UEi DAFM3 Digital Airflow Meter is designed to measure humidity and temperature. This vane anemometer features a wind speed range of up to 3937 ft/min. It is a portable, battery-operated instrument for measuring air temperature, dew point, wet bulb, air velocity, and air volume.

• Humidity Measurement
• Temperature Measurement
• Vane Anemometer
• Measures Air Velocity, Temperature and Humidity

Product Highlights

The DAFM3 is a digital air flow meter designed with HVAC/R parameters in one instrument. It measures humidity, air temperature, dew point, wet bulb, air velocity and air volume.

Product Information

Standard Information

• Brand: UEi
• Manufacturer Part Number: DAFM3

Technical Specifications

• Brand: UEi
• MPN: DAFM3
• GTIN: 0053533505726, 0078331023821
• UPC: 0053533505726, 0078331023821
• Features: Humidity Measurement, Temperature Measurement
• Wind Speed Range: 3937 ft/min
• Anemometer Type: Vane
• Temperature: -4° to 140°F (-20° to 60°C) Accuracy: +1°F (+0.6°C) Resolution: 0.1°F (0.1°C)
• Relative Humidity: 0 to 100% RH Accuracy: +3% at 10 to 60% RH +5% at other range Resolution: 0.1%
• Dew Point: -90° to 158°F (-68° to 70°C) Accuracy: +3% at 10 to 60% RH +5% at other range Resolution : 0.1%
• Wet Bulb Temperature: -7.6° to 158°F (-22° to 70°C) Accuracy: +3% at 10 to 60% RH +5% at other range Resolution : 0.1%
• Air Velocity: 0.3 yo 35 m/s (1 to 114 ft/s) Accuracy: +5% Resolution : 0.1%
• Air Volume: 0 to 99999 m3/s (0 to 99999 cfm) Accuracy: +5% Resolution: 0.1(0 - 9999.9) or 1 (10000 - 99999)
• Meter Dimensions: 175 x 70 x 33 mm
• Vane Dimensions: 170 x 77 x 40 mm
