Uei 511KIT Heat Pump Install Kit

Product Description

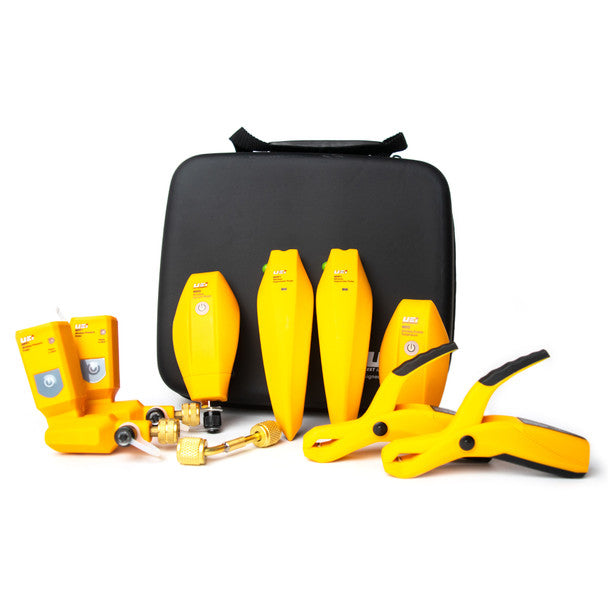

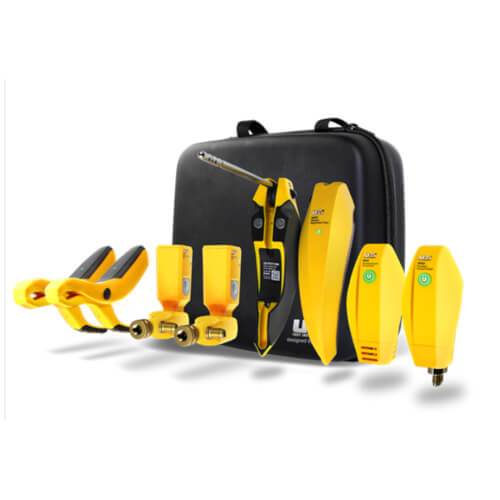

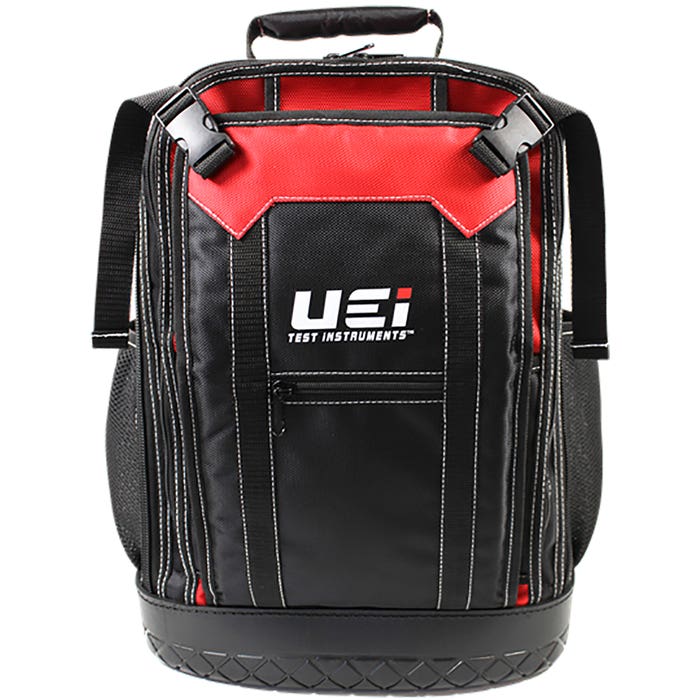

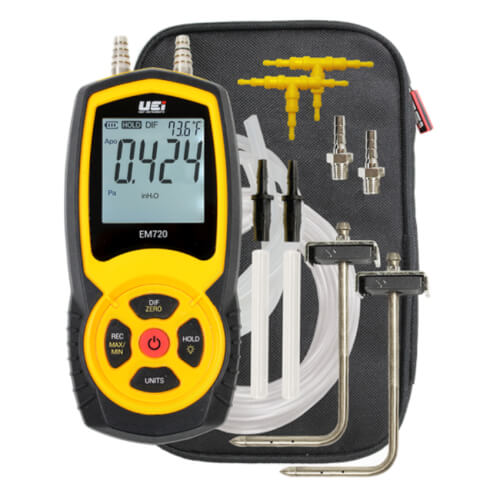

The UEI 511KIT Heat Pump Install Kit provides the recommended test instruments required by heat pump start up manuals for proper installation and maintenance. This kit includes the DL579, RLD15B, HUB8, EM720SPKIT, and AC550. It is packed in a rugged UEI Tool Backpack with a waterproof base and multiple compartments.

• Meets manufacturer requirements to maintain warranty
• Tests CFM via external static pressure
• Detects refrigerant leaks

Product Highlights

This kit confirms proper high and low voltage, measures evacuation suction & liquid valves, and calculates superheat and subcool values.

Product Information

Standard Information

• Brand: UEI
• Manufacturer Part Number: 511KIT
• Country of Origin: United States

Technical Specifications

• TRMS: Yes
• AC Volts: 750V AC
• DC Volts: 1000V DC
• AC Current (amps): 600A AC
• AC Micro Current (amps): 2000µA
• DC Micro Current (amps): 2000µA
• DC Micro Volts: 600mV
• AC Micro Volts: 600mV
• Resistance (Ohms): 60
• Capacitance (Farads): 6000
• Frequency (Hertz): 99.99kHz
• Duty Cycle (%): 1.0 to 99.0%
• Temperature: -328 to 2462 degrees F
• Continuity: Yes
• Diode: Yes
• NCV Detection: Yes
• Hygrometer - Temp Range: 32 to 140 degrees F
• Microns Range: 0 to 20000 microns
• Pressure Range: 60 InH2O
• Pipe Clamp - Temp Range: 32 to 180 degrees F
• Pressure: 0 to 725 PSIG
• Super Heat: 180F (82°C) Max, 32°F (0°C) Min
• Subcool: 180F (82°C) Max, 32°F (0°C) Min
• Vapor/Liquid Saturation: 32 to 180 degrees F
• Relative Humidity: 0% to 100%
• Detects: Refrigerant
• Senses HFC, CFC and HCFC Refrigerants and Blends: Yes
• Detection Sensitivity: .05 oz/year
• LRA Inrush: Yes
• Low Z: Yes
• AC Amps Measurement - Jaw Input Range: 600.0A
• AC Amps Measurement - Jaw Input Resolution: 0.1A
• AC Amps Measurement - Jaw Input Accuracy: ±2.0% +8dgts
• AC Amps Measurement - Jaw Input Overload Protection: 600V RMS
• Minimum Current for Clamp Measurement: 0.3A
• DC Microamps Measurement - Test Lead Input Range: 2000µA
• DC Microamps Measurement - Test Lead Input Resolution: 1µA
• DC Microamps Measurement - Test Lead Input Accuracy: ±1.2% +3dgts
• DC Microamps Measurement - Test Lead Input Overload Protection: 600V RMS
• AC Microamps Measurement -Test Lead Input Range: 2000µA
• AC Microamps Measurement -Test Lead Input Resolution: 1µA
• AC Microamps Measurement -Test Lead Input Accuracy: ±2.0% +5dgts
• AC Microamps Measurement -Test Lead Input Overload Protection: 600V RMS
• AC Microamps Measurement -Test Lead Input: 45Hz to 400Hz True RMS
• DC Volts Measurement Range: 1000V
• DC Volts Measurement Resolution: 1V
• DC Volts Measurement Accuracy: ±0.8% +10dgts
• DC Volts Measurement Overload Protection: 1000V RMS
• AC Volts Measurement Range: 750V
• AC Volts Measurement Resolution: 1V
• AC Volts Measurement Accuracy: ±2.0% +5dgts
• AC Volts Measurement Overload Protection: 750V RMS
• AC Volts Measurement: 45Hz to 400Hz True RMS
• Ohms Measurement Range: 60.00MΩ
• Ohms Measurement Resolution: 0.01MΩ
• Ohms Measurement Accuracy: ±2.0% +4dgts
• Ohms Measurement Overload Protection: 600V RMS
• Diode Test Range: 6.0V
• Diode Test Open Circuit Voltage: < 3.0V DC
• Diode Test Test Current (Typical): 0.25mA
• Diode Test Overload Protection: 600V RMS
• Capacitance Measurement Range: 6000µF
• Capacitance Measurement Resolution: 1µF
• Capacitance Measurement Accuracy: 3.5% +6dgts
• Capacitance Measurement Overload Protection: 600V RMS
• Temperature Measurement Range: 1000° to 1350°C
• Temperature Measurement Resolution: 1°C
• Temperature Measurement Accuracy: ±(1.0% +2°C)
• Temperature Measurement Overload Protection: 30V RMS
• Frequency Measurement - Test Lead Input Range: 99.99kHz
• Frequency Measurement - Test Lead Input Resolution: 0.01kHz
• Frequency Measurement - Test Lead Input Accuracy: 0.1% +4dgts
• Frequency Measurement - Test Lead Input Overload Protection: 1000V RMS
• Frequency Measurement - Test Lead Input Minimum Frequency: 0.5Hz
• Frequency Measurement - Test Lead Input Sensitivity: > 10% of each AC volt range except 4V (>20%) range only
• Duty Cycle Range: 1.0 to 99.0%
• Duty Cycle Accuracy: ±(0.2% per kHz +0.1% +5 dgts)
• Duty Cycle Overload Protection: 1000V RMS
• Audible Continuity Measurement Open Circuit Voltage: < 0.64V
• Audible Continuity Measurement Overload Protection: 600V RMS
• Audible Continuity Measurement: Threshold Approx : < 40Ω

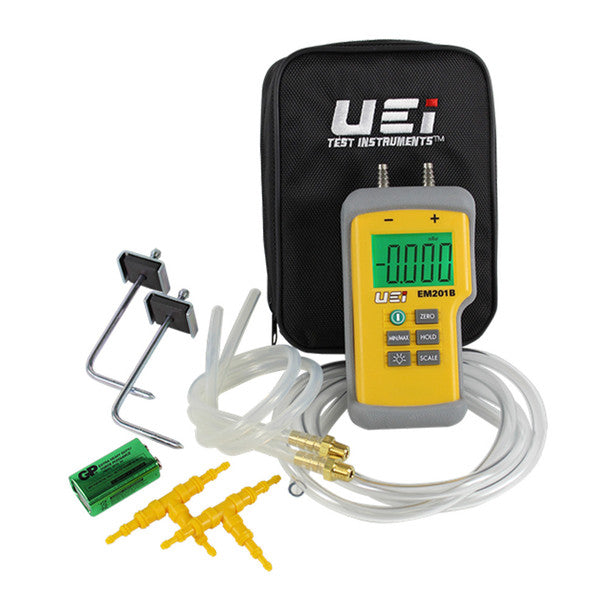

• EM201B Specs Measurement Range: -100 to +100 mBar
• EM201B Specs Accuracy: ±1%RDG > 2"WG
• EM201B Specs Resolution: 0.01" for < -10" or > +10" WG
• EM201B Specs Operating Range: 32° -104°F (0° - 40°C)
• EM201B Specs: 10 - 90% RH non condensing
• EM201B Specs Battery Life: 40 hours min with alkaline battery
• MPN: 511KIT
• Brand: UEi
• Model: 511KIT
• Features: Includes Static pressure Manometer Kit, TRMS clamp meter
• AC Current: 600A
• Voltage: 750V
