Uei 510KIT Condensing Unit Install Kit Includes DL579, RLD15B, HUB8, AC550

Brand: UEI
SKU: 510KIT
Availability: In Stock

Ships same day if ordered by 12 pm
$1,562.44
$1,562.44
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

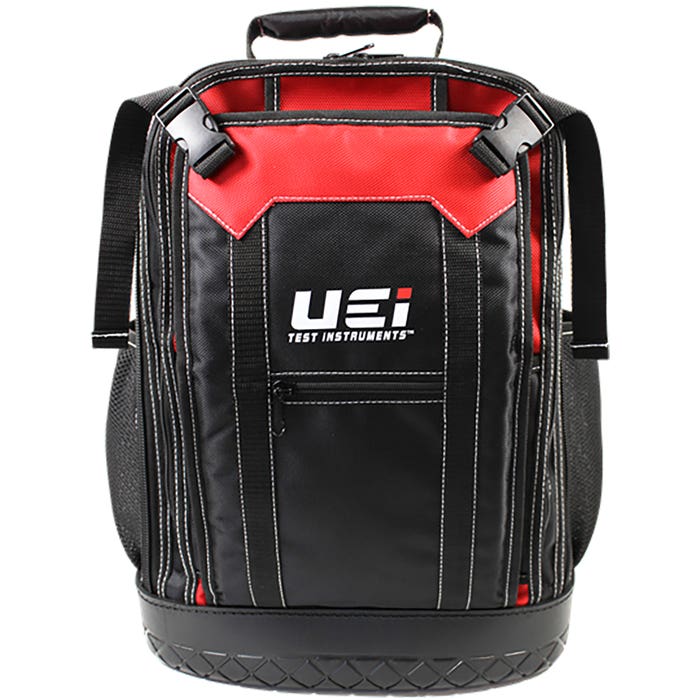

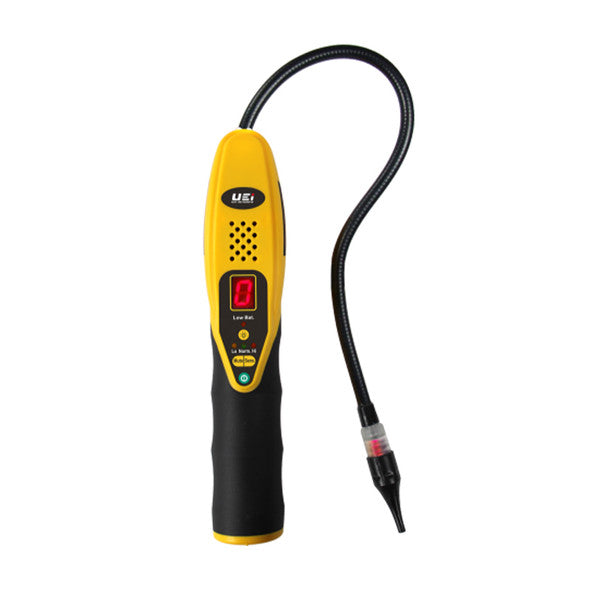

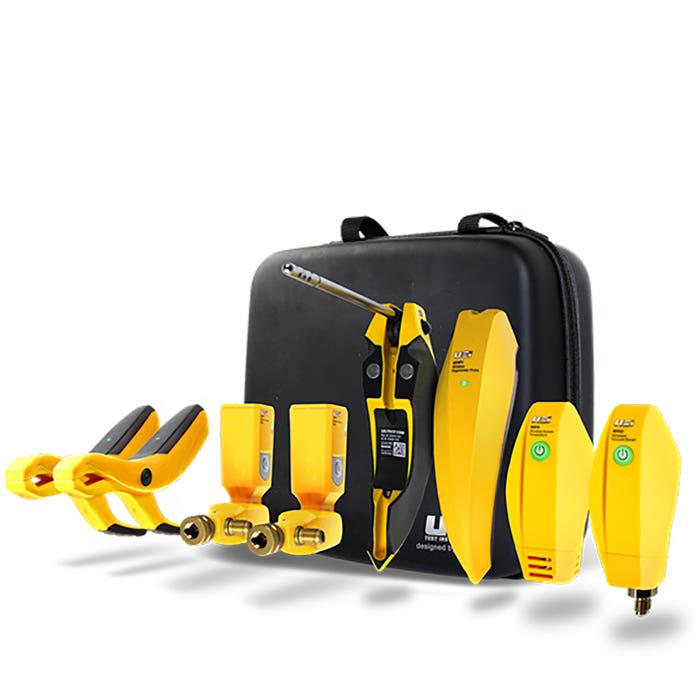

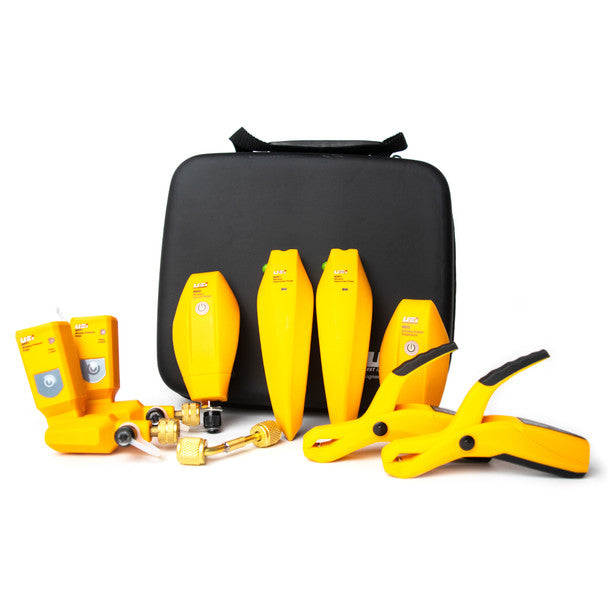

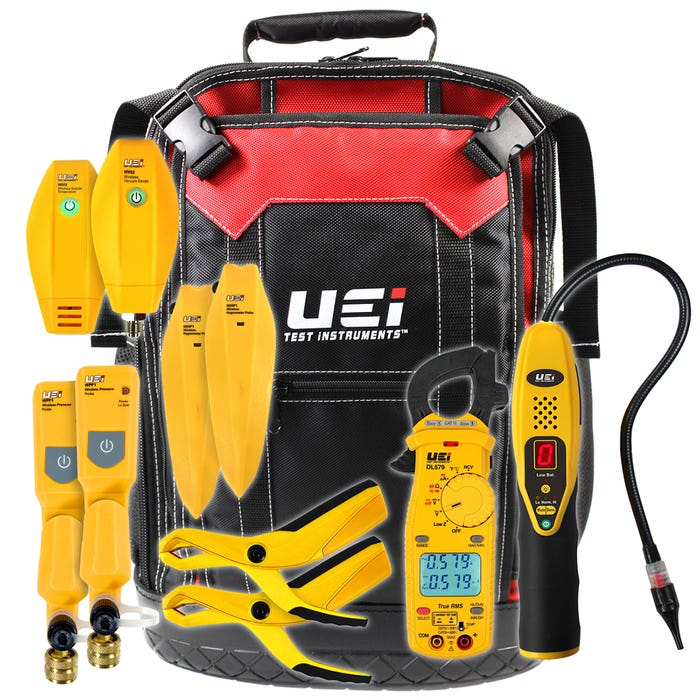

The UEI 510KIT Condensing Unit Install Kit provides the recommended test instruments required by condensing unit start up manuals for proper installation and maintenance. It includes the DL579, RLD15B, HUB8, and AC550. Most equipment warranties require initial install readings to be documented upon installation. The kit is packed in a rugged UEi Tool Backpack with a waterproof base.

  • Ensures manufacturer requirements, maintaining warranties
  • Confirms system is free from refrigerant leaks
  • Establishes proper high voltage to power supply and ground
  • Ensures low voltage meets wiring diagram requirements
  • Checks evacuation suction and liquid valves
  • Confirms temperatures of suction and liquid lines
  • Provides superheat and subcool values for adjustments

Product Highlights

This kit provides essential instruments for condensing unit installation and maintenance, packed in a durable backpack. It helps ensure warranty compliance and system integrity.

Product Information

Standard Information

  • Brand: UEI
  • Manufacturer Part Number: 510KIT
  • Country of Origin: Taiwan
Technical Specifications
Product Type
Leak Detector, Pressure Probe, Test Kit, Backpack
Max Temp (F)
180°F
Battery Type
AAA, AA
Batteries Included
13
TRMS
Yes
AC volts
750V AC
DC volts
1000V DC
AC current (amps)
600A AC
AC micro current (amps)
2000
DC micro current (amps)
2000
DC micro volts
600mV
AC micro volts
600mV
Resistance (Ohms)
60
Capacitance (Farads)
6000
Frequency (Hertz)
99.99kHz
Duty cycle (%)
1.0 to 99.0%
Temperature
-328 to 2462 degrees F
Continuity
Yes
Diode
Yes
NCV detection
Yes
Hygrometer - temp range
32 to 140 degrees F
Pressure range
0 to 20000 microns
Pipe Clamp - temp range
32 to 180 degrees F
Pressure
0 to 725 PSIG
Super Heat
32 to 180 degrees F
Subcool
32 to 180 degrees F
Vapor/Liquid saturation
32 to 180 degrees F
Relative humidity
0% to 100%
Detects
Refrigerant
Senses HFC, CFC and HCFC refrigerants and blends
Yes
Detection sensitivity
.05 oz/year
LRA Inrush
Yes
Low Z
Yes
Wireless Vacuum Gauge Probe Range
0-20,000 Microns
Wireless Vacuum Gauge Probe Resolution
1-micron
Wireless Pressure Probes Range
0 to 725 psig
Wireless Pressure Probes Resolution
0.1 psi
Wireless Pipe Clamps Range
32° to 176°F (0° to 80°C)
Wireless Pipe Clamps Resolution
0.1°F
Wireless Hygrometer Probes Temp range
32° to 140°F (0° to 60°C)
Wireless Hygrometer Probes Relative Humidity
0 to 100%
Brand
UEi
MPN
510KIT
Test Instrument Included
Refrigerant Leak Detectors
Accessories Included
Battery; Leak Detector; Tool Backpack; Wireless Hygrometer Probe; Wireless Outside Temperature Probe; Wireless Pipe Clamp Probes; Wireless Pressure Probe; Wireless Vacuum Gauge
Clamp Meter Audible Continuity
Yes
Clamp Meter Bluetooth Compatibility
No
Clamp Meter Calibration Certificate Included
No Certification Included
Clamp Meter Current Leakage Testing
No
Clamp Meter Data Hold
Yes
Clamp Meter Data Logging
No
Clamp Meter Instrument Counts
6000
Clamp Meter Instrument Safety Rating
CAT III 600V
Clamp Meter Intrinsically Safe
No
Clamp Meter IP Rating
IP42
Clamp Meter Jaw Style
Clamp
Clamp Meter Maximum AC Current
600 A
Clamp Meter Maximum AC Voltage
750 V
Clamp Meter Maximum DC Current
2,000 uA
Clamp Meter Maximum DC Voltage
1,000 V
Clamp Meter Removable Screen
No
Clamp Meter Temperature Types Measured
Temperature °F
Clamp Meter Testing Functions
AC Current; AC Voltage; Capacitance; DC Current; DC Voltage; Frequency; Resistance
Clamp Meter Thermal Imaging
No
Clamp Meter Voltage Units
mV
Digital Multimeter Audible Continuity
No
Digital Multimeter Bluetooth Compatibility
No
Digital Multimeter Current Leakage Testing
No
Digital Multimeter Data Hold
No
Digital Multimeter Data Logging
No
Digital Multimeter Data Output Type
Wi-Fi
Digital Multimeter Intrinsically Safe
No
Digital Multimeter IP Rating
Not Rated
Digital Multimeter Removable Screen
No
Digital Multimeter Thermal Imaging
No
Multimeter Calibration Certificate Included
No Certification Included
Multimeter Current Units
uA
Multimeter Temperature Types Measured
Temperature °F
Multimeter Voltage Units
mV
Number of Alligator Clips
2
Number of Test Leads
1
Test Instrument Manufacturer Model Numbers Included
DL579; RLD15B
