Product Description

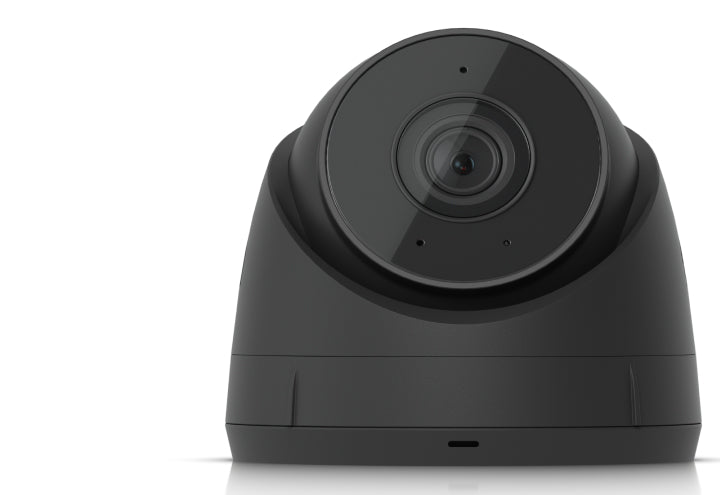

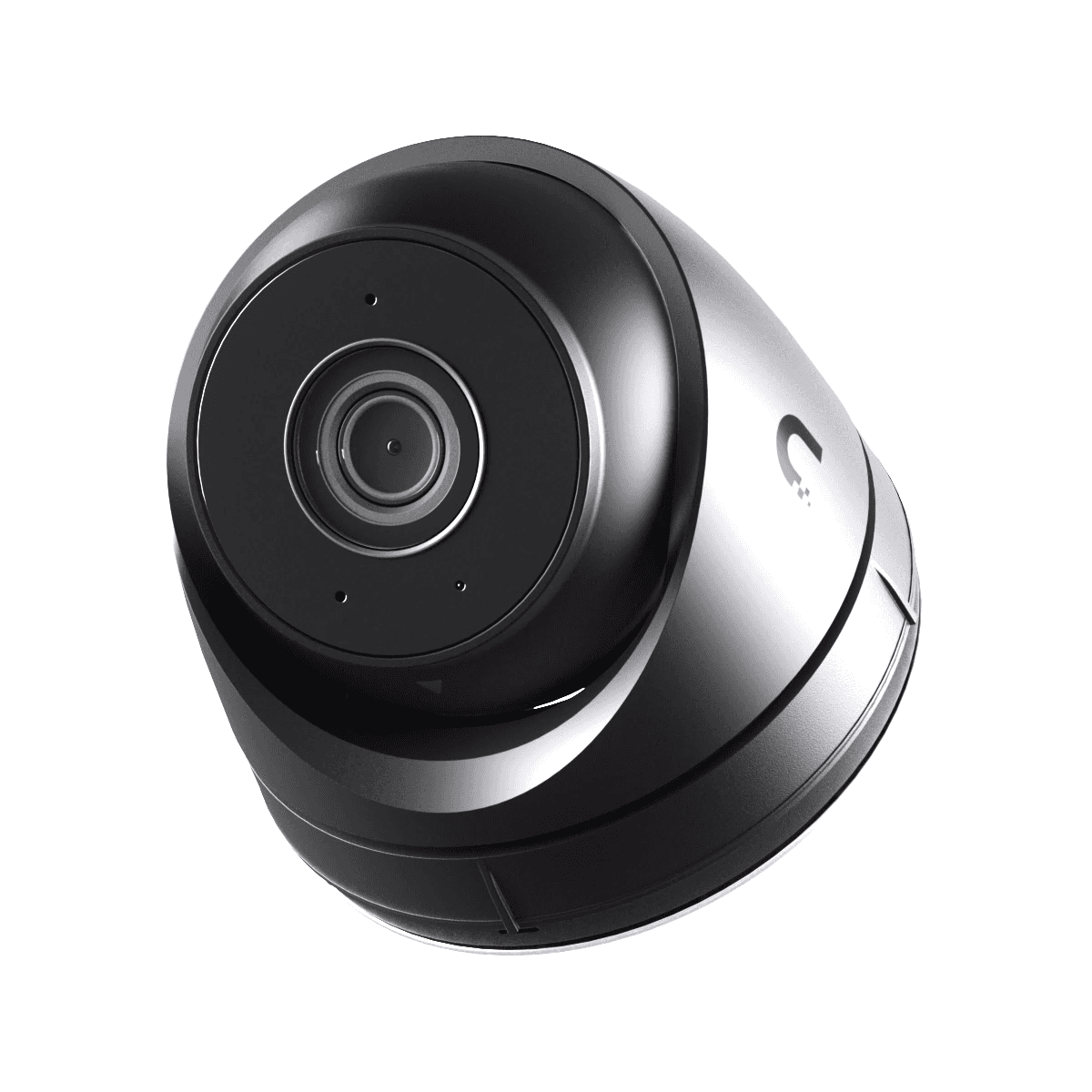

The Ubiquiti UVC-G5-Turret-Ultra-B G5 Turret Ultra is an ultra-compact, tamper-resistant, and weatherproof 2K HD PoE camera with long-range night vision. An integrated IR LED with an automatic IR-cut filter enables sharp, reliable night vision in low-light or complete darkness without user intervention. Offers smart detections and a wide field of view.
- 30 m IR Night Vision
- Ultra-compact and Tamper-resistant
- 2K HD PoE camera
Product Highlights

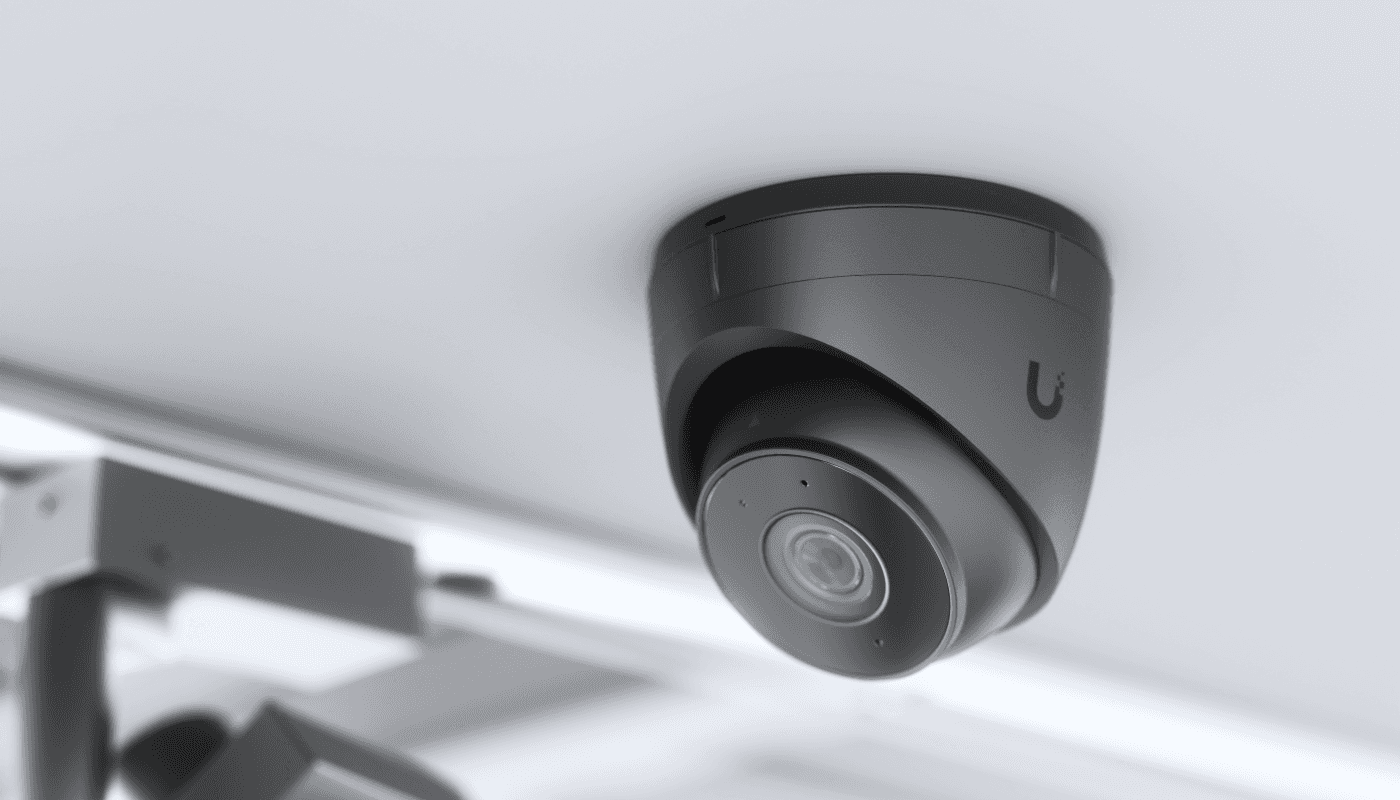

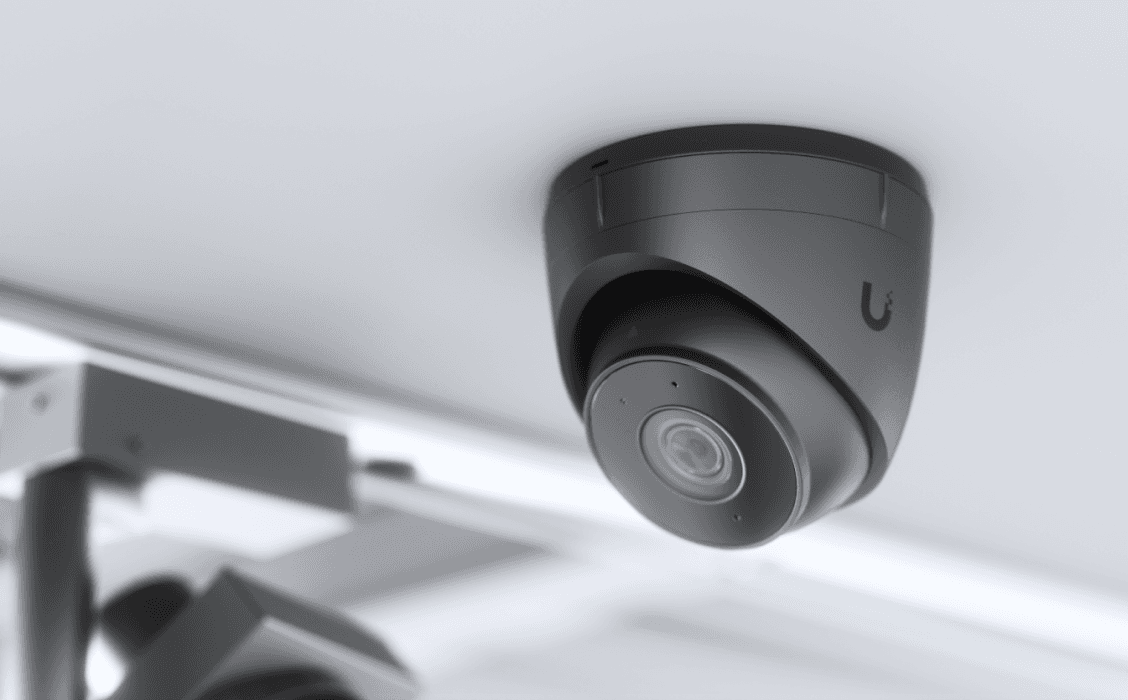

This camera is designed for outdoor use and provides high-quality video in various conditions. It supports wall and ceiling mounting.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: UVC-G5-Turret-Ultra-B
Technical Specifications
-
IR Night Vision: 30 m (98 ft)
-
Smart Detections (People, Vehicles, Animals): ✓
-
Resolution: 4MP 2688 x 1512 (16:9)
-
Field of View: H: 102.4°, V: 54.9°, D: 120.6°
-
Audio: Microphone
-
Weatherproofing: IP66
-
Tamper Resistance: IK04
-

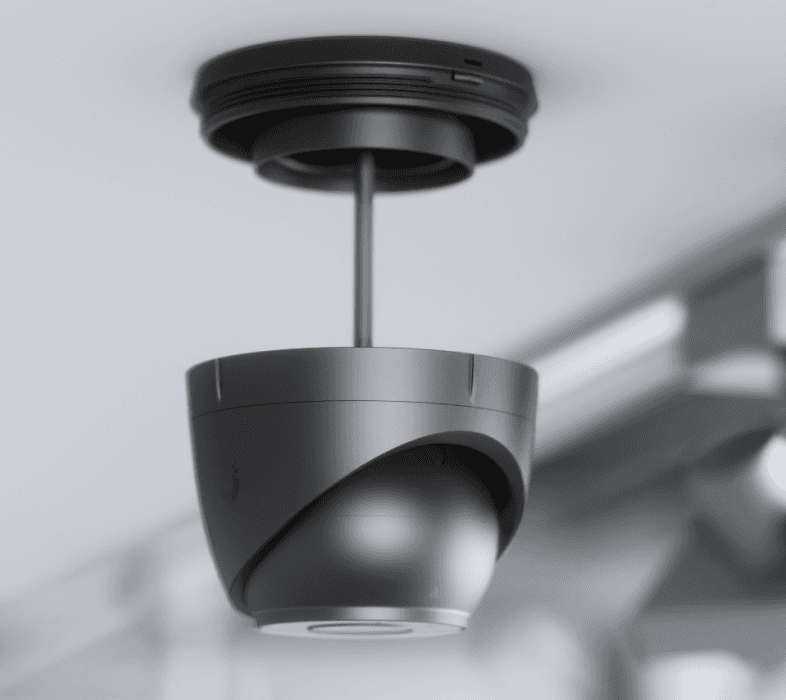

Mounting: Wall, ceiling mount (Included)
Junction box, arm mount (Optional)
-
Networking Interface: 10/100 MbE RJ45 port
-
Image Settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
-
Max. Frame Rate: 30 FPS
-
Sensor: 1/2.4" CMOS
-
Lens: Fixed focal length
-
Night Mode: Built-in IR LED illumination and IR cut filter
-
Max. Power Consumption: 4W
-
Supported Voltage Range: 37—57V DC
-
Power Method: PoE
-
Processor: Dual-core Arm® Cortex®-A7 based chip
-
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate
-
Mount Material: Polycarbonate
-
Cable Connector Type: RJ45
-
Cable Diameter: 5 mm (0.2")
-
Cable Length: 30 cm (1 ft)
-
Jacket Material: Polycarbonate
-
Jacket Enclosure Dimensions: ⌀20 x 70.6 mm (0.8 x 2.8")
-
Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
-
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
-
Ambient Operating Humidity: 0 to 90% noncondensing
-
NDAA Compliant: ✓
-
Certifications: CE, FCC, IC
-
Recommended Uses For Product: Outdoor Security
-
Brand: Ubiquiti Networks
-
Model Name: UVC-G5-Turret-Ultra
-
Connectivity Technology: Wired
-
Special Feature: Night Vision
-
Indoor/Outdoor Usage: Outdoor
-
Compatible Devices: Smartphone
-
Power Source: PoE
-
Connectivity Protocol: Ethernet
-
Mounting Type: Wall Mount
-
Video Capture Resolution: 2K
-
Number of Items: 1
-
Included Components: Metal Mount Plate, Screws
-
Number of Channels: 1
-
Form Factor: Turret
-
Effective Video Resolution: 1080 MP
-
Night Vision Range: 98 Feet
-
Wattage: 4 watts
-
Photo Sensor Technology: CMOS
-
Effective Still Resolution: 4 MP
-
International Protection Rating: IP67
-
Maximum Webcam Image Resolution: 4 MP
-
Frequency Band Class: Single-Band
-
Length: 3.5"
-
Width: 3.5"
-
Depth: 2.8"
-
Height: 2.8"
-
Weight: 11.64oz
