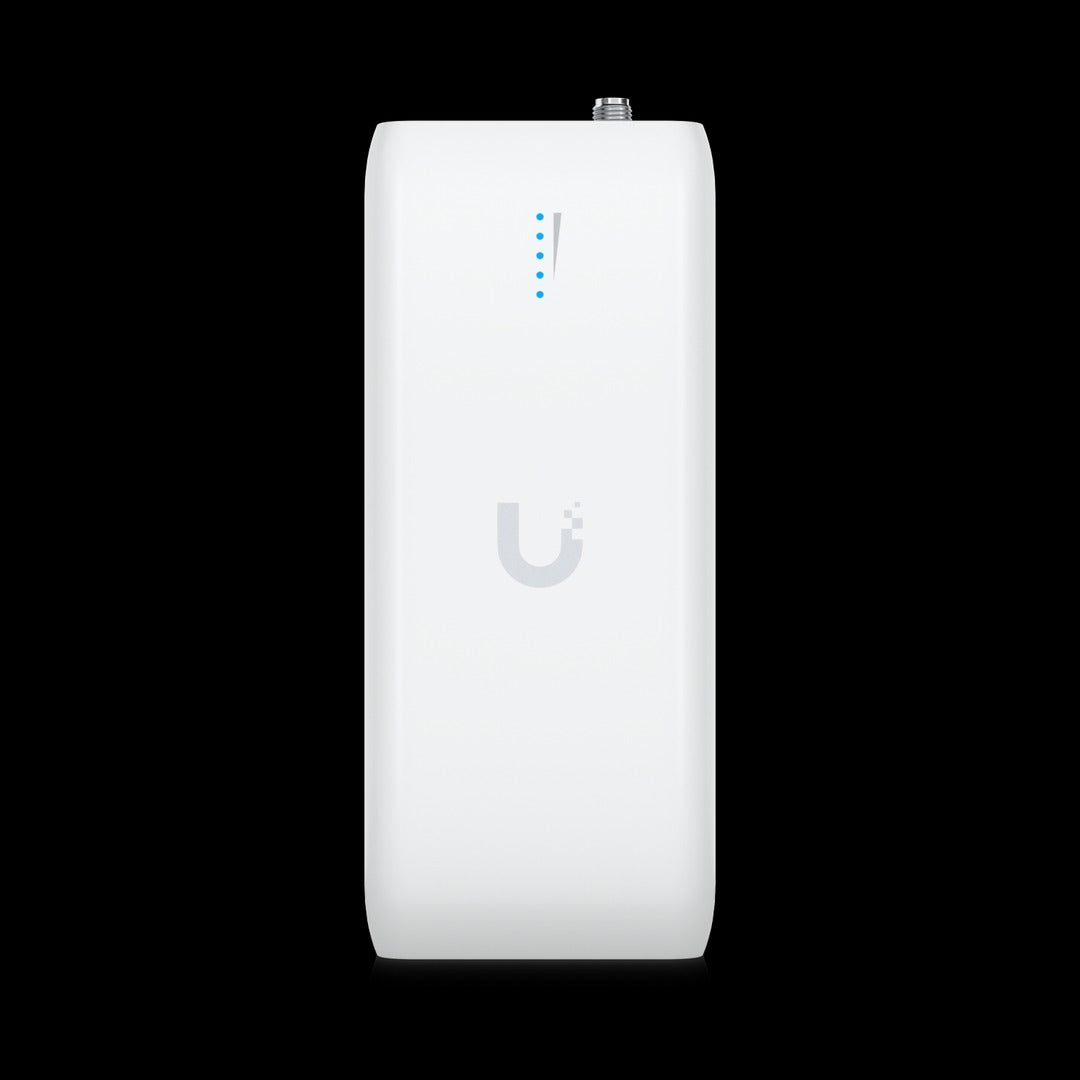

Ubiquiti udb-us Device Bridge Wireless Poe Adapter

Product Description

The UBIQUITI udb-us is a plug-and-play wireless bridging PoE adapter built around UniFi WiFi Auto-Link technology. It delivers a wire-free path for connecting PoE-powered devices to an existing UniFi network without running additional Ethernet infrastructure. The adapter operates on the 5 GHz band and delivers up to 867 Mbps throughput. A single Gigabit Ethernet LAN port provides up to 15 watts of PoE output, supplying both data and power to a downstream device through one cable. Network administrators and low-voltage installation technicians deploy this unit wherever pulling a new network drop is impractical.

The udb-us is suited for residential and light commercial installations where UniFi infrastructure is already in place. It extends network access to locations that lack a wired Ethernet run, connecting devices such as UniFi Protect PoE cameras, UniFi Talk phones, and compatible IoT devices via a standard Ethernet connection. UniFi Consoles and access points on the network must be running the latest software versions for the Auto-Link pairing process to function correctly.

Key Features

• Plug-and-play setup via integrated UniFi WiFi Auto-Link — no manual SSID configuration required
• 5 GHz wireless band with up to 867 Mbps throughput rate
• Single GbE LAN port delivers up to 15W PoE output to downstream devices
• Compatible with UniFi Protect PoE cameras, UniFi Talk phones, and Ethernet-based IoT devices
• Eliminates the need for a dedicated wired Ethernet run to remote device locations

Compatibility

Compatible with UniFi Protect PoE cameras, UniFi Talk phones, and various IoT devices connected via Ethernet. Requires UniFi Consoles and access points to have the latest software updates installed for proper operation.

Installation Notes

Installation is performed by low-voltage network technicians familiar with UniFi system administration. Ensure all UniFi Consoles and access points on the network are updated to the latest firmware before pairing the udb-us. Power down the downstream PoE device before connecting it to the adapter's LAN port. Follow applicable local low-voltage wiring codes and the NEC for any associated cabling work.

Technical Specifications

• Wireless Band: 5 GHz
• Maximum Throughput: 867 Mbps
• LAN Port: 1 x Gigabit Ethernet (GbE)
• PoE Output: Up to 15W
• Pairing Technology: UniFi WiFi Auto-Link

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: udb-us
