Ubiquiti udb-pro-us Device Bridge Pro 5 Ghz Ptp Bridge

Product Description

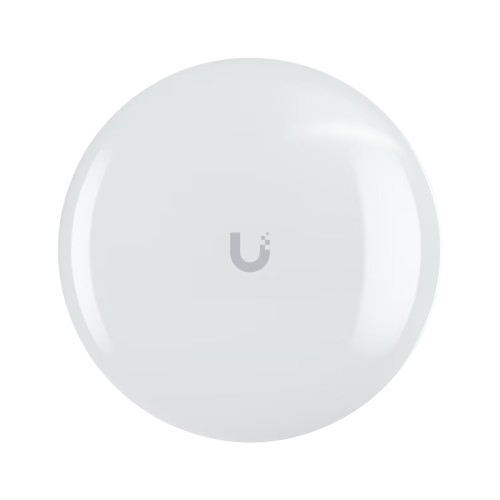

The UBIQUITI udb-pro-us Device Bridge Pro is a compact 5 GHz point-to-point wireless bridge built for outdoor network extension over distances up to 5 kilometers. It uses a 2x2 MIMO antenna array with 19 dBi gain to deliver up to 867 Mbps maximum throughput via WiFi 5 (802.11ac). The IPX6-rated weatherproof enclosure houses internal antennas and supports pole or wall mounting, making it a practical solution for network installers working across campuses, industrial facilities, or remote structures. Dual Gigabit Ethernet ports and PoE pass-through capability reduce the need for additional power runs at the remote end.

This unit is suited for licensed network technicians and IT infrastructure installers deploying long-range wireless backhaul links in outdoor environments. Typical applications include connecting separate buildings on a campus, extending network access to remote structures without trenching fiber or conduit, and bridging facility networks across open areas. WPA2 security is built in for encrypted point-to-point links. The weatherproof housing makes it appropriate for permanent outdoor installation in exposed locations.

Key Features

• 5 GHz band with 2x2 MIMO and 19 dBi internal antenna gain for long-range PtP links
• Up to 867 Mbps maximum throughput via WiFi 5 (802.11ac)
• Point-to-point wireless range up to 5 kilometers
• IPX6-rated weatherproof enclosure for permanent outdoor deployment

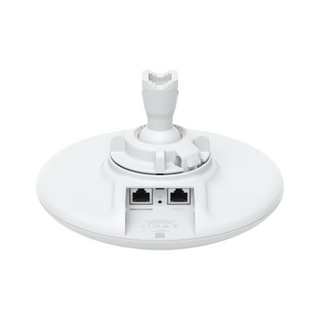

• Dual Gigabit Ethernet ports with PoE pass-through capability
• WPA2 wireless security for encrypted data links

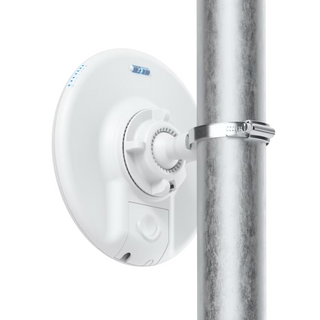

• Supports pole or wall mounting for flexible installation

Compatibility

Designed as a point-to-point outdoor wireless bridge for use in standard network infrastructure deployments requiring 5 GHz backhaul connectivity.

Installation Notes

Installation is typically performed by licensed network technicians or structured-cabling professionals. Power down connected network equipment before making or breaking Ethernet connections. When mounting outdoors, ensure all cabling entries are properly weatherproofed and that the unit is grounded in accordance with applicable local electrical codes. Do not exceed the rated PoE input specifications when powering the unit or connected downstream devices.

Technical Specifications

• Frequency Band: 5 GHz
• Wireless Standard: WiFi 5 (802.11ac)
• MIMO Configuration: 2x2 MIMO
• Antenna Gain: 19 dBi
• Maximum Throughput: 867 Mbps
• Maximum Range: 5 kilometers
• Ethernet Ports: 2x Gigabit Ethernet (GbE)
• PoE Pass-Through: Yes
• Enclosure Rating: IPX6 weatherproof
• Antenna Type: Internal
• Mounting: Pole or wall
• Security: WPA2

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: udb-pro-us
