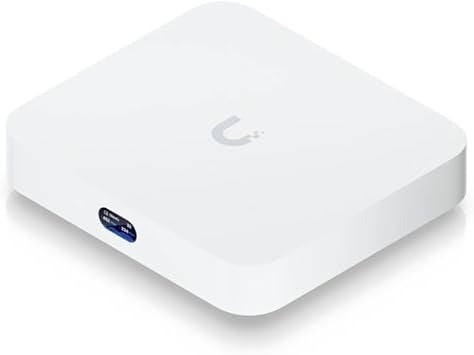

Ubiquiti UCG-MAX Cloud Gateway Max

Product Description

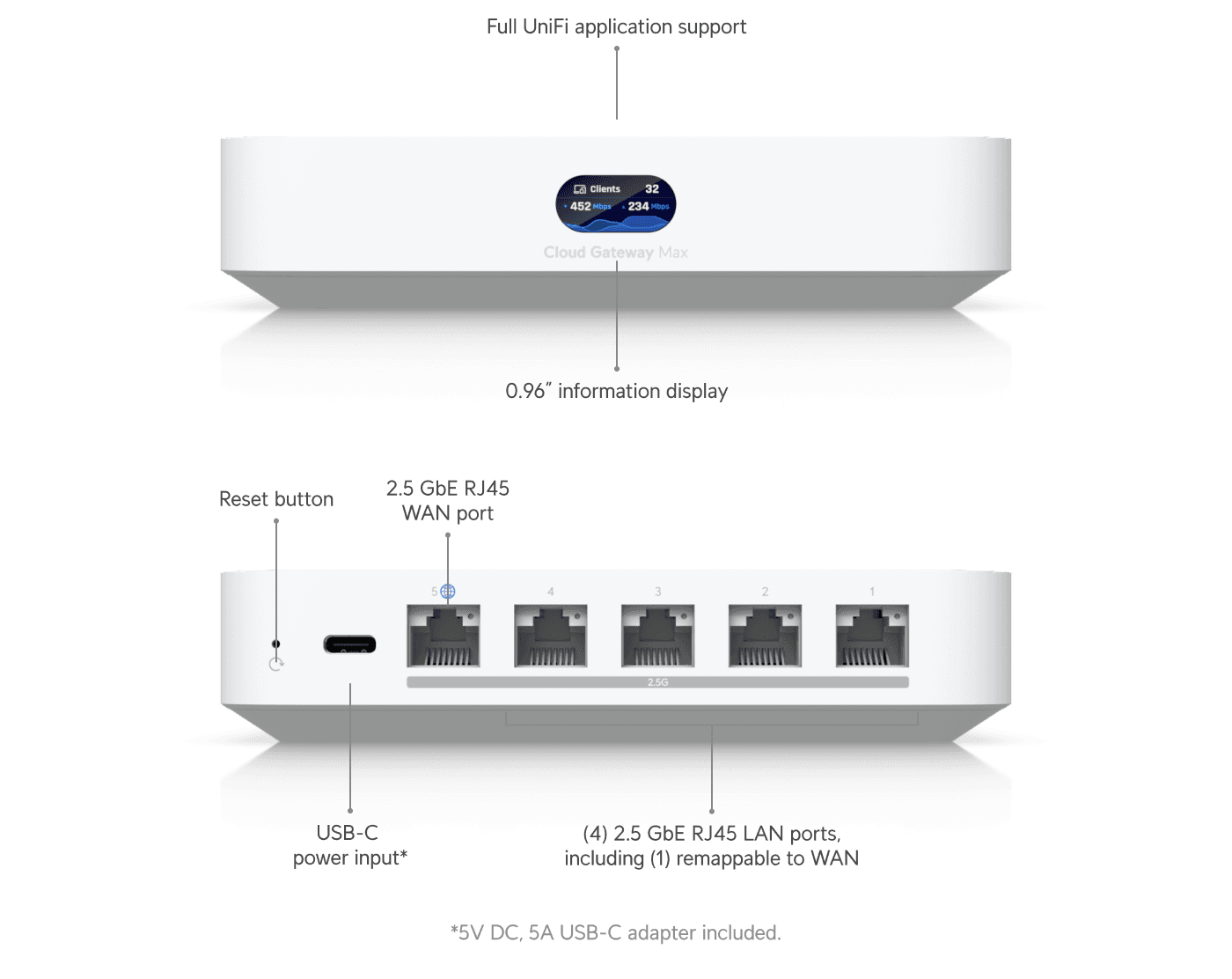

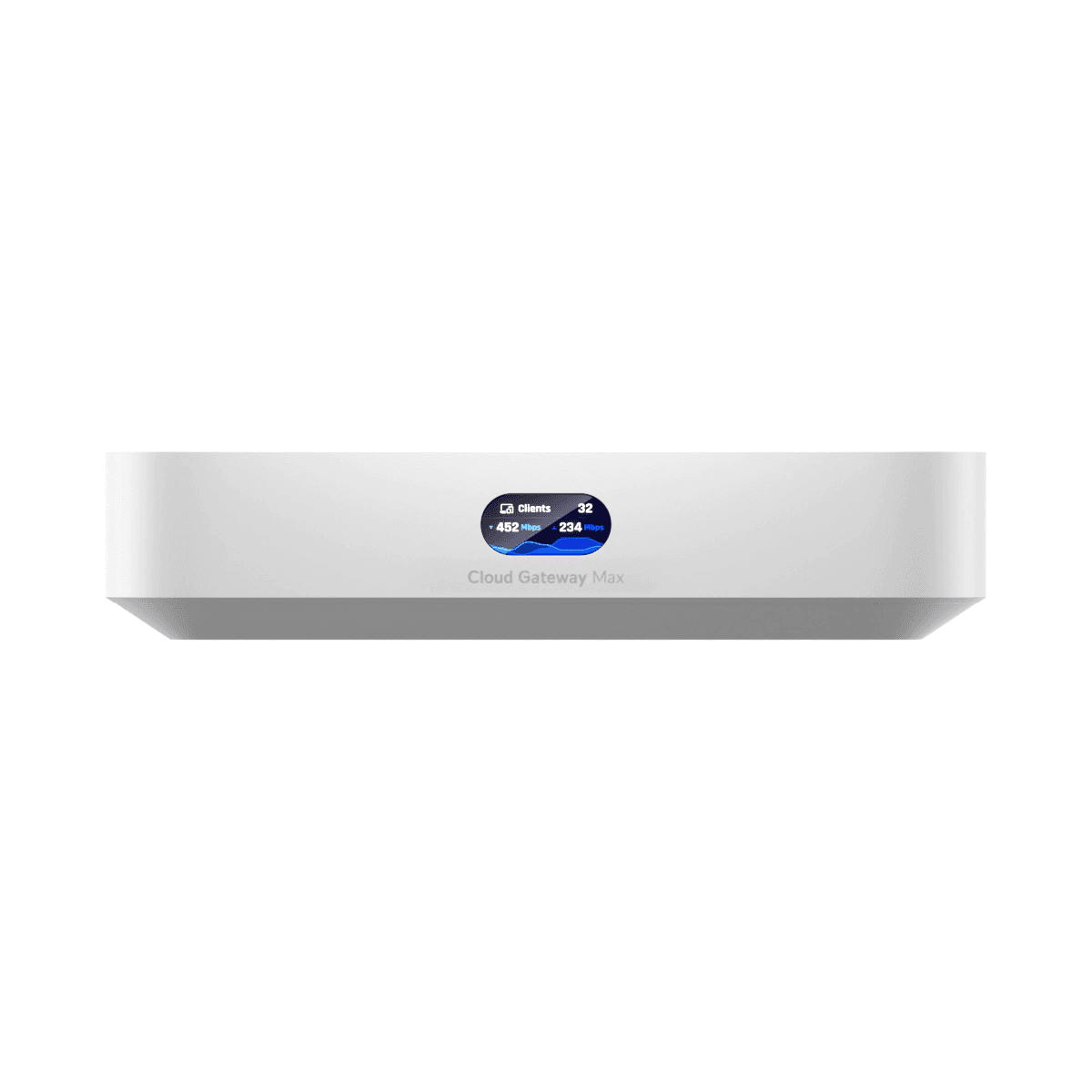

The UBIQUITI UCG-MAX Cloud Gateway Max is a compact 2.5G cloud gateway that supports 30+ UniFi devices and 300+ clients. It runs the full UniFi application suite and offers selectable NVR storage. The gateway provides 2.3 Gbps IPS routing and includes a 0.96" status display. It features a quad-core ARM Cortex-A53 processor at 1.5 GHz and 3 GB of system memory.

• Compact 2.5G Cloud Gateway
• 30+ UniFi device / 300+ client support
• 2.3 Gbps IPS routing
• Runs the full UniFi application suite
• Selectable NVR storage

Product Highlights

Compact gateway with UniFi application suite, supporting multiple devices and clients with fast IPS routing and selectable NVR storage.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UCG-MAX
• Country of Origin: Vietnam

Technical Specifications

• Managed UniFi Devices: 30+
• Simultaneous Users Connected: 300+
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Stateful Firewall: ✓
• Application-Aware Layer 7 Firewall: ✓
• DPI & Traffic Identification: ✓
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps): ✓
• Content Filtering: ✓
• Intrusion Prevention (IPS/IDS): ✓
• Ad Blocking: ✓
• VLAN/Subnet-based Traffic Segmentation: ✓
• License-Free SD-WAN: ✓
• Site-to-Site VPN Site Magic: ✓
• IPsec: ✓
• OpenVPN: ✓
• VPN Server Identity Endpoint One-Click VPN: ✓
• Teleport Zero-Configuration VPN: ✓
• WireGuard: ✓
• L2TP: ✓
• VPN Client OpenVPN: ✓
• Multi-WAN Load Balancing: ✓
• Dynamic Routing OSPF: ✓
• Advanced QoS: ✓
• Multicast DNS (mDNS): ✓
• Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT): ✓
• Integrated RADIUS Server: ✓
• RADIUS over TLS (RadSec): ✓
• Additional Internet Failover with UniFi LTE Backup: ✓
• Internet Quality and Outage Reporting: ✓
• MAC Address Table Size: 2,000
• Policy-based WAN and VPN Routing: ✓
• Customizable DHCP Server: ✓
• IPv6 ISP Support: ✓
• IGMP Proxy: ✓
• Virtual Network Override: ✓
• All Traffic Flows: ✓
• NVR Storage: Selectable NVMe SSD up to 2 TB
• Max. Power Consumption: 16.1W
• Power Method: USB type C (5V DC/5A)
• Power Supply: USB type C (5V DC/5A) (Adapter included)
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 55 BTU/hr
• Processor: Quad-core ARM® Cortex®-A53 at 1.5 GHz
• System Memory: 3 GB
• Enclosure Material: Polycarbonate
• LCM Display: 0.96" status display
• Management: Ethernet, Bluetooth
• LEDs: Ethernet ✓
• Button: (1) Factory reset
• ESD/EMP Protection: Air: ± 8kV, contact: ± 4kV
• Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• NDAA Compliant: ✓
• Certifications: CE, FCC, IC, Anatel: 09004-24-08356, SRRC
• Application Requirements Mobile App: UniFi iOS™ and Android™: Version 10.17.2 and later
• Managed Cameras: (15) HD, (8) 2K, (5) 4K
• Managed Access Hubs: 50
• Max. WAN Port Count: 4
• Default WAN Ports: (1) 2.5 GbE RJ45
• Port Layout: 2.5 GbE RJ45 (2.5G/1G/100M/10M)
• Connectivity technology: Ethernet
• Compatible devices: Ubiquiti Cameras
• Brand: Ubiquiti Networks
• Model: UCG-Max
• Part Number: UCG-Max
• Video input: IP
• Wattage: 16.1 watts
• Wireless Standard: 802.11n
• Frequency: 1.5 GHz
• Total USB Ports: 1
• Connector Type: Ethernet
