Product Description

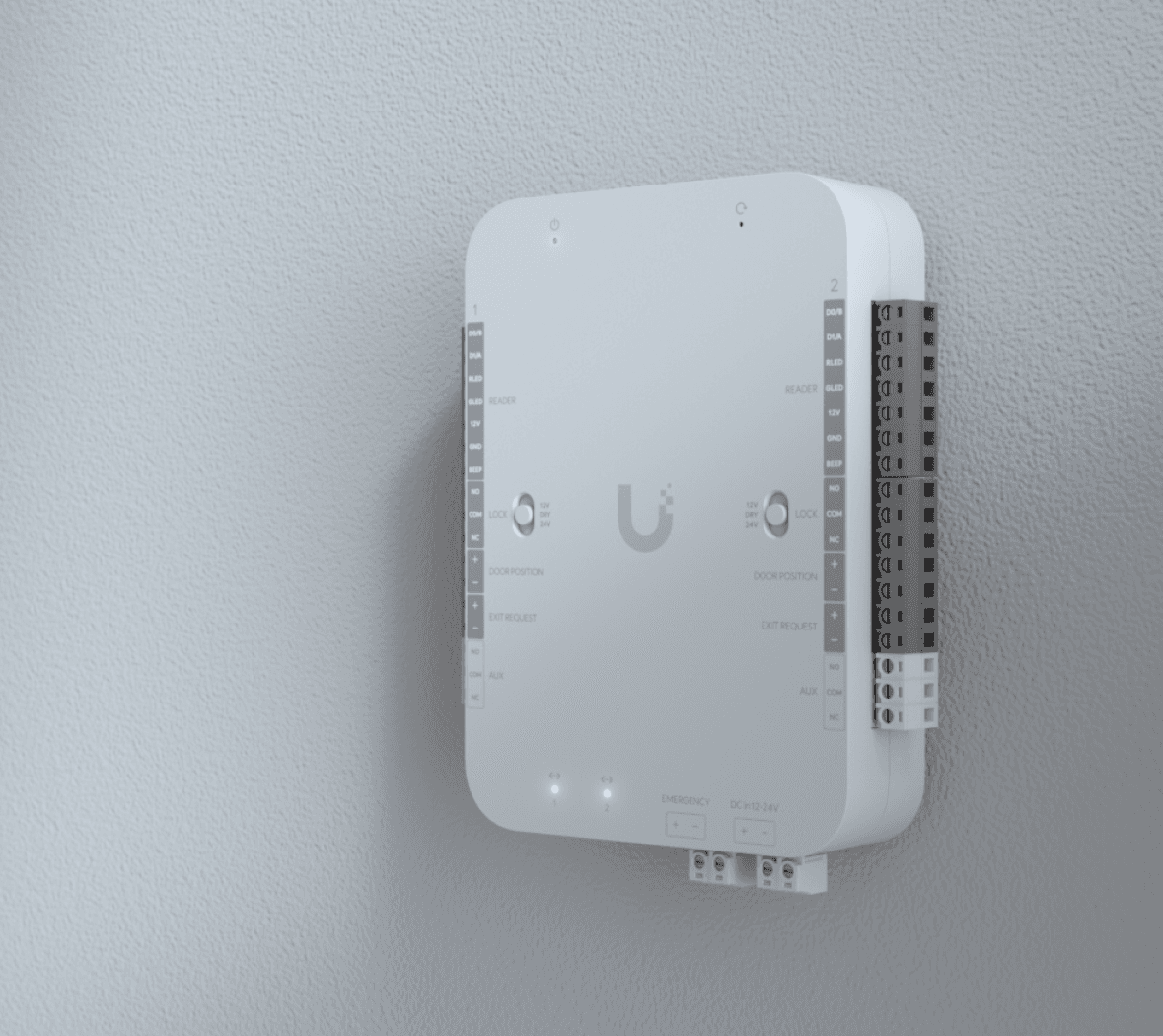

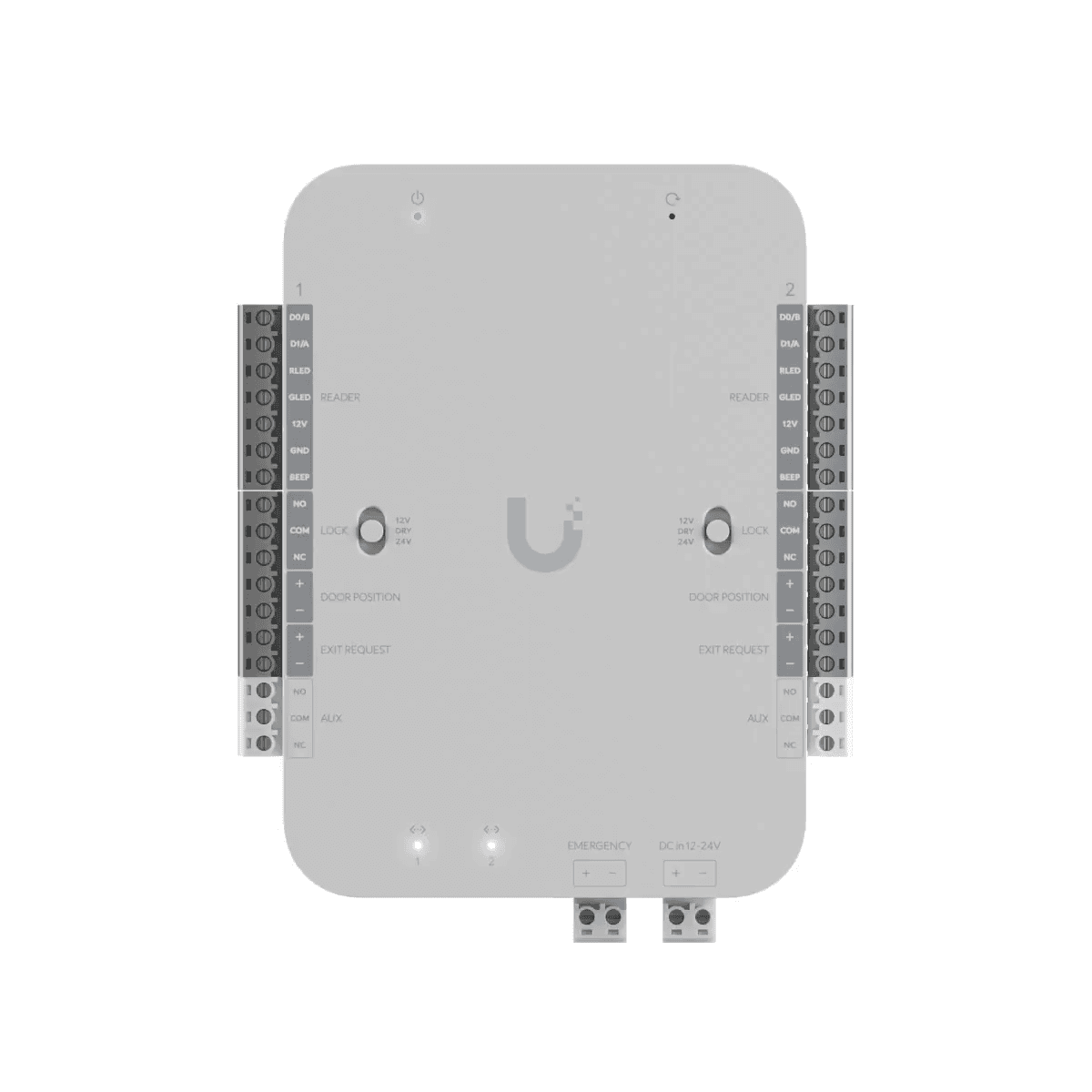

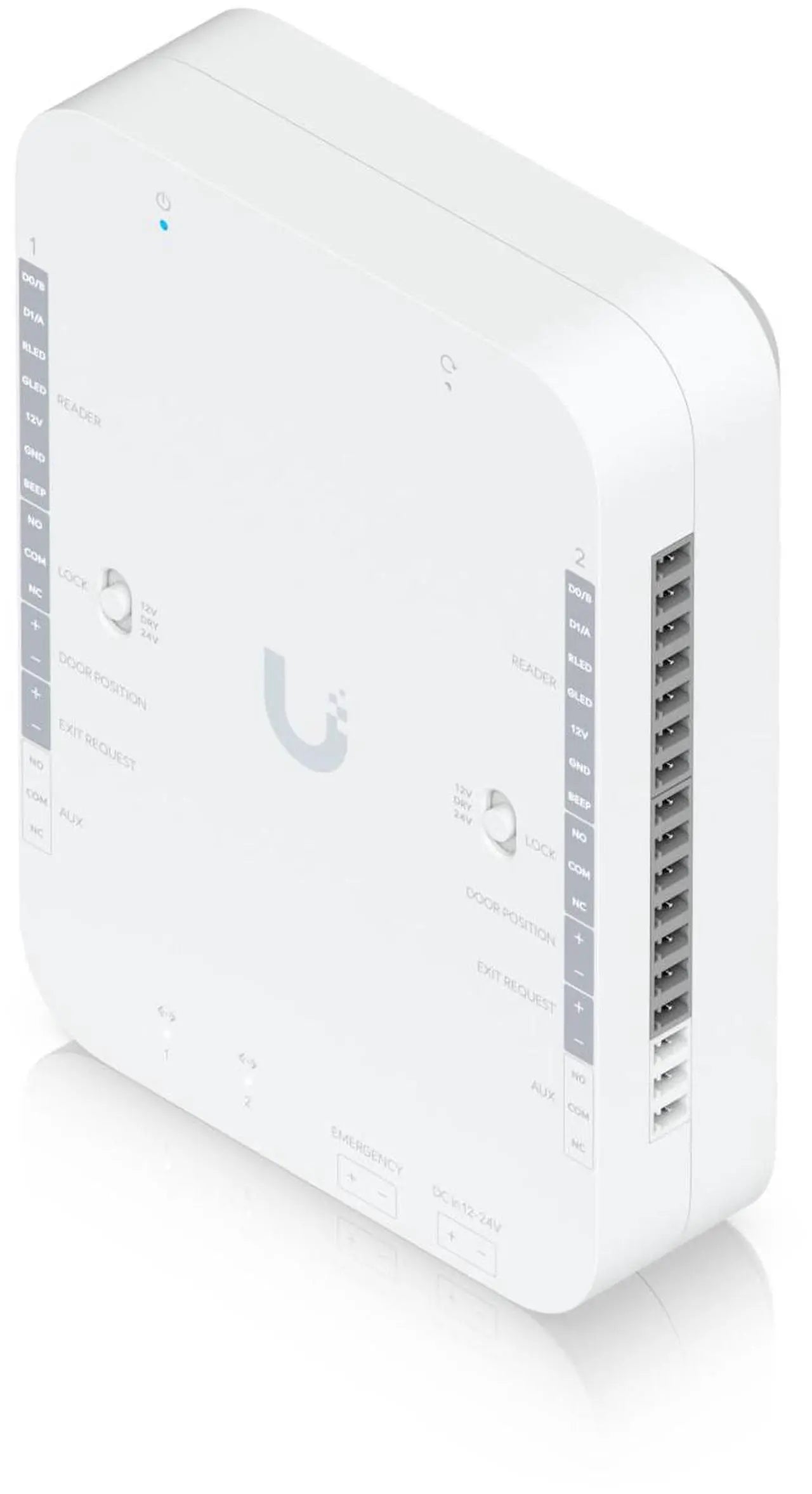

The UBIQUITI UA-RETROFIT-HUB-2 is a DC-powered hub supporting Wiegand and OSDP readers, providing entry and exit control for up to two doors. It supports up to 10,000 users and features input terminals for third-party Wiegand readers, door exit requests, door position sensors, and emergency inputs. It offers 12/24V DC input and includes dry and powered output relays for lock control.
- Supports 2 doors
- Maximum user count of 10,000
- Input terminals for third-party Wiegand readers and UniFi Retrofit Readers
Product Highlights
Designed for indoor use, the hub operates in temperatures from -10 to 40°C and includes two 10/100 MbE RJ45 ports for networking and supports Access management application.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: UA-RETROFIT-HUB-2
-
Country of Origin: Country of origin is subject to change.

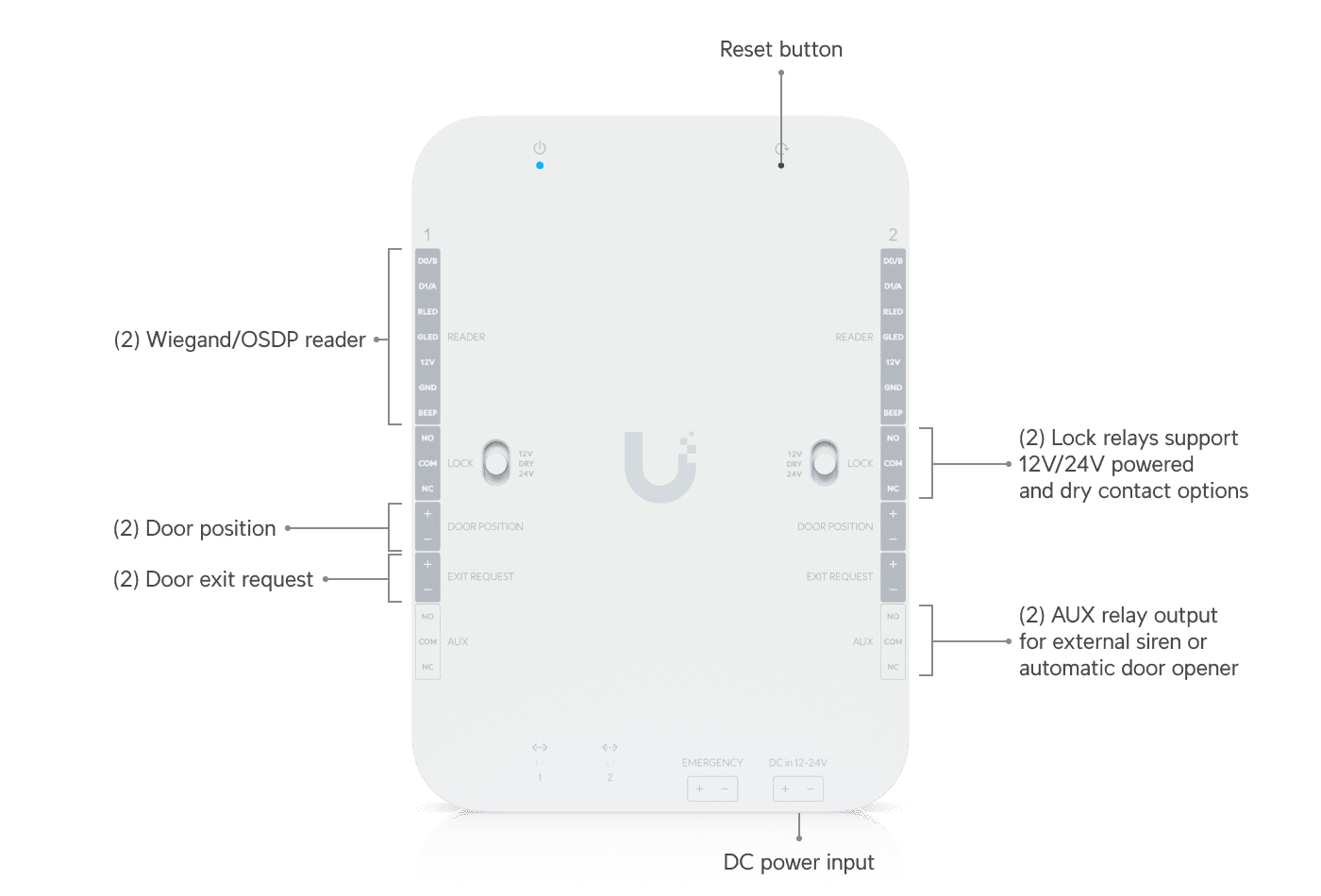

Technical Specifications
-
Supported Doors: 2
-
Maximum User Count: 10,000
-
Input Terminals: (2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
-
Power Method: 12/24V DC
-
Enclosure Material: Polycarbonate
-
Mount Material: SGCC steel
-

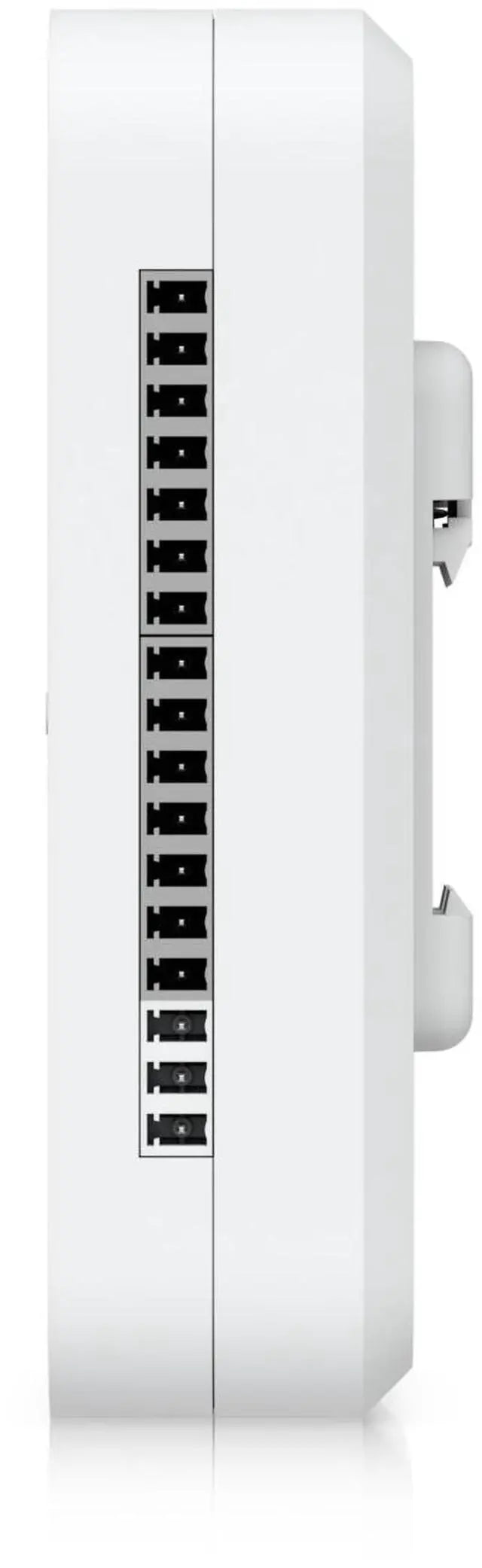

Mounting: Din-rail (Included)
-
Digital Input: (2) Third-party Wiegand Reader / UniFi Retrofit Reader
(2) Door exit request
(2) Door position
(1) Emergency
-
Dry Output Relay: Lock: rated 30V DC, up to 1A
Aux: rated 30V DC, up to 1A
-
Powered Output Relay: 12V Lock: 12V DC, up to 1A
24V Lock: 24V DC, up to 0.5A
-
Indoor and Outdoor Use: Indoor only
-
Ambient Operating Temperature: -10 to 40° C
(14 to 104° F)
-
Ambient Operating Humidity: 5 to 90% noncondensing
-
Networking Interface: (2) 10/100 MbE RJ45 ports
-
Power Supply: DC 12/24V
-
Max. Power Consumption: 50W
-
LEDs: W/B
-
Buttons: (1) Factory reset
(2) 12V/Dry/24V switch
-
Certifications: CE, FCC, IC
-
Management Application: Access
-
Brand: Ubiquiti
-
Model: UA-Retrofit-Hub-2
-
MPN: UA-RETROFIT-HUB-2
-
UPC: 810177161677
