Ubiquiti UA-G3-SK-Gate G3 Gate Starter Kit

Product Description

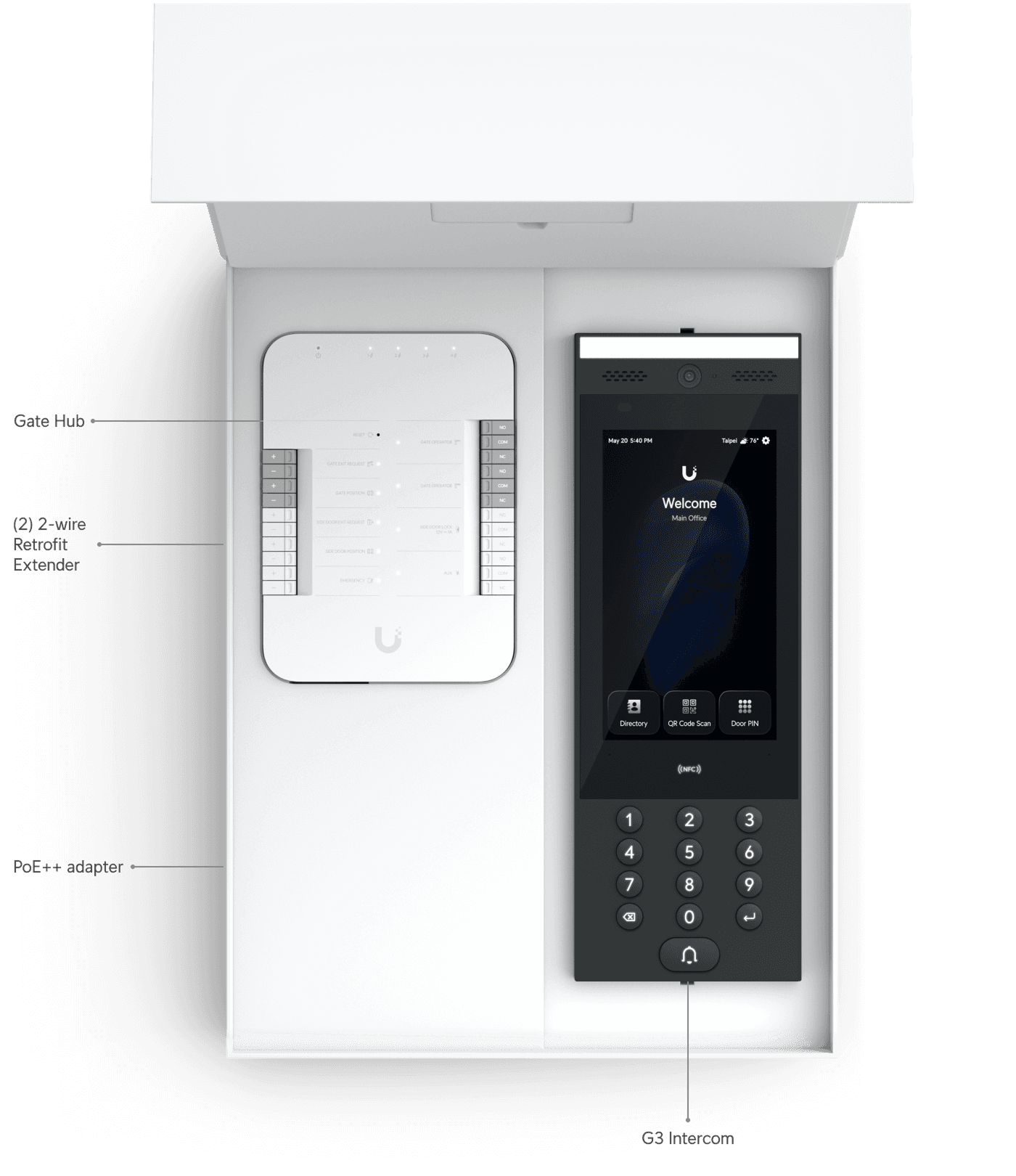

The Ubiquiti UA-G3-SK-Gate G3 Gate Starter Kit is a solution for access control at a single gate with Touch Pass support. It includes a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender. The kit supports access integration for G6 Series and optional LPR Cameras.

• Starter kit with a Gate Hub
• G3 Intercom
• PoE++ adapter
• PoE++ over twisted pair extender

Product Highlights

This starter kit provides access control at a single gate with Touch Pass support. It includes a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UA-G3-SK-GATE

Technical Specifications

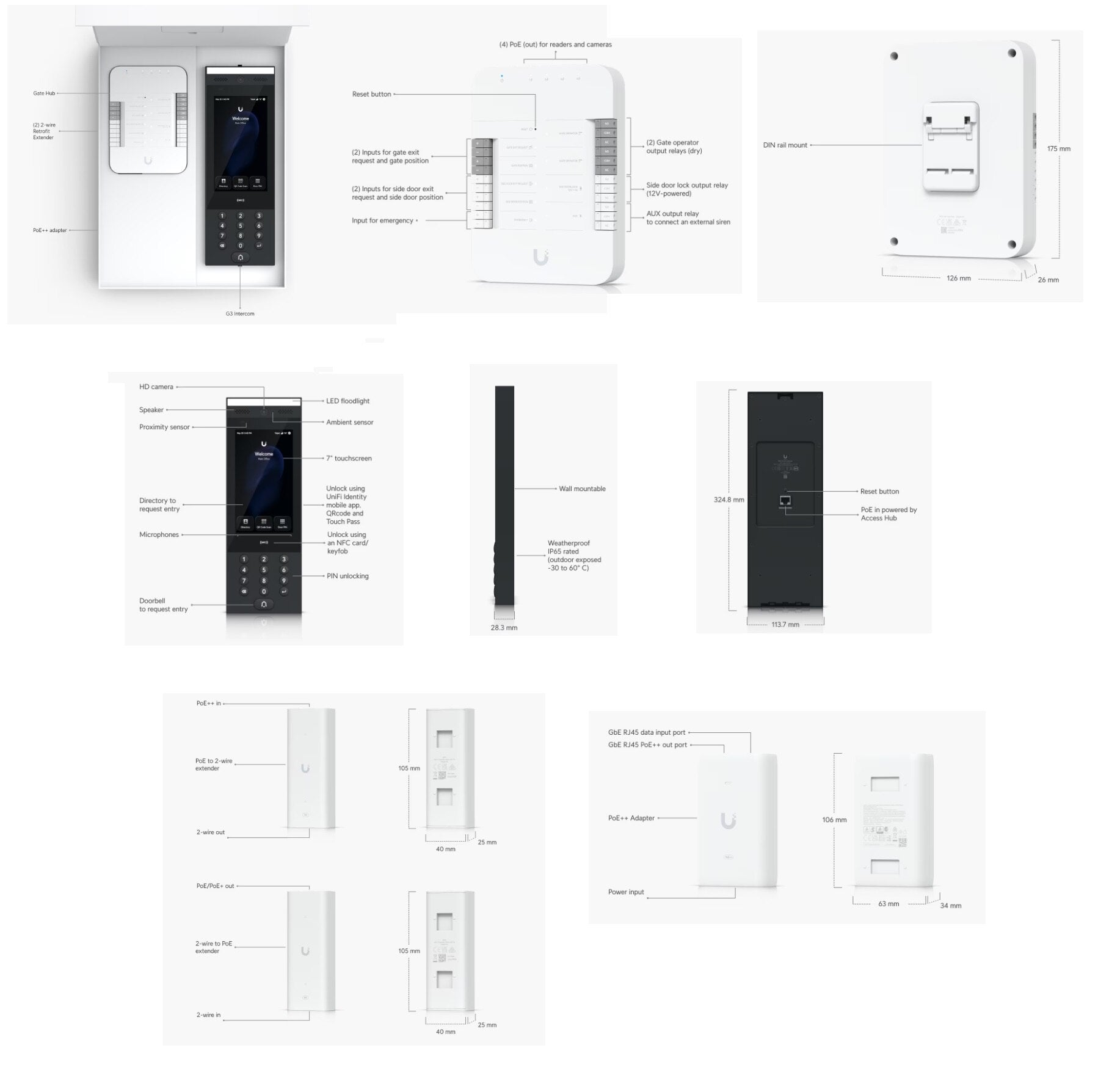

• Gate Hub Dimensions: 175 x 126 x 26 mm (6.9 x 5 x 1")
• Supported Doors: 1 gate, 1 side door
• Enclosure Material: Polycarbonate

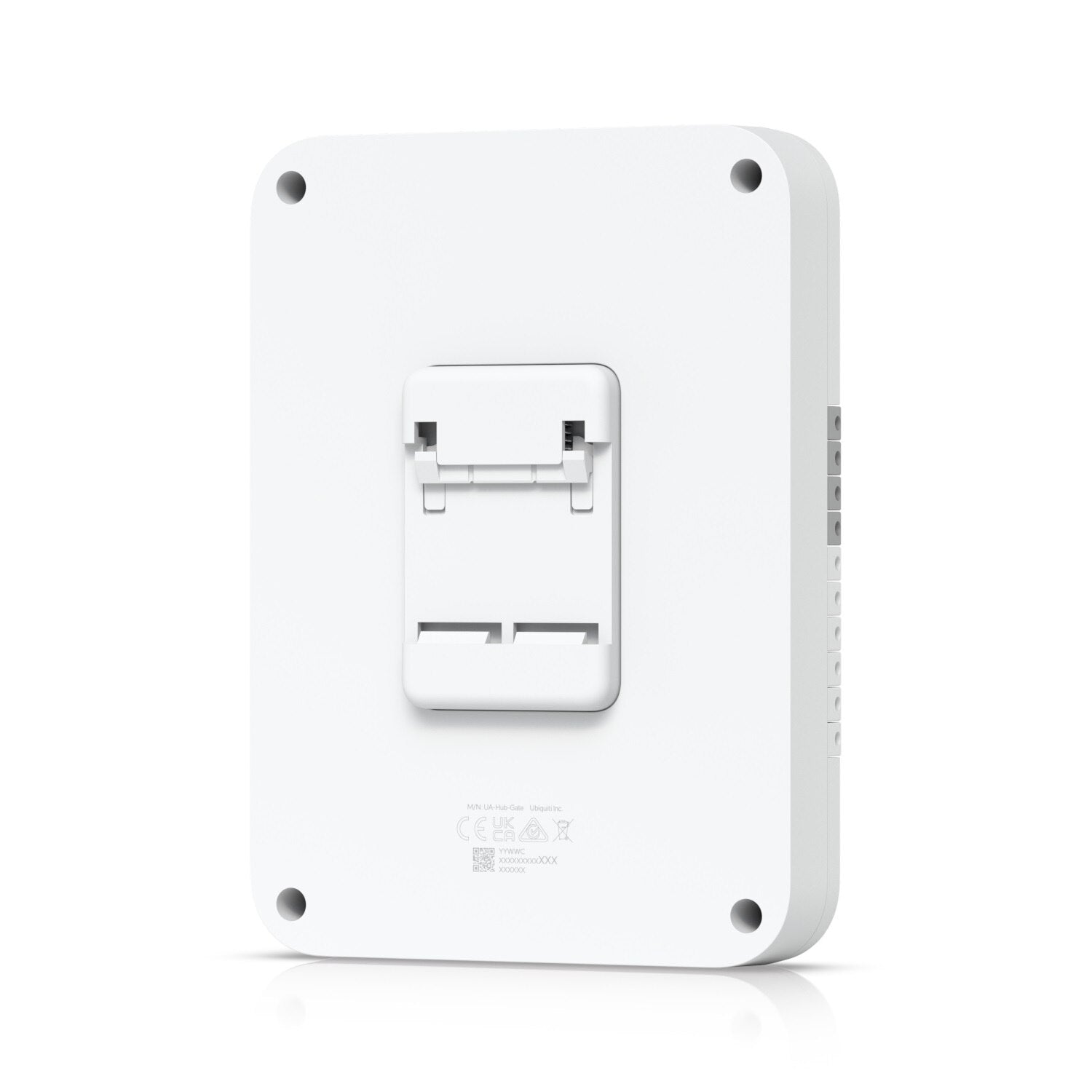

• Mounting: DIN-rail (Included)
• Indoor and Outdoor Use: Indoor only: device itself Outdoor: with waterproof junction box
• NDAA Compliant: Yes
• UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
• Ambient Operating Temperature: -30 to 60° C (-22 to 104° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Networking Interface: (1) GbE RJ45 port
• PoE Interface: (1) PoE++ input, 50V DC, 1A (4) PoE outputs, 50V DC, Max. 28W
• Max. Power Consumption: 22W (Without PoE output) 50W (With PoE output)

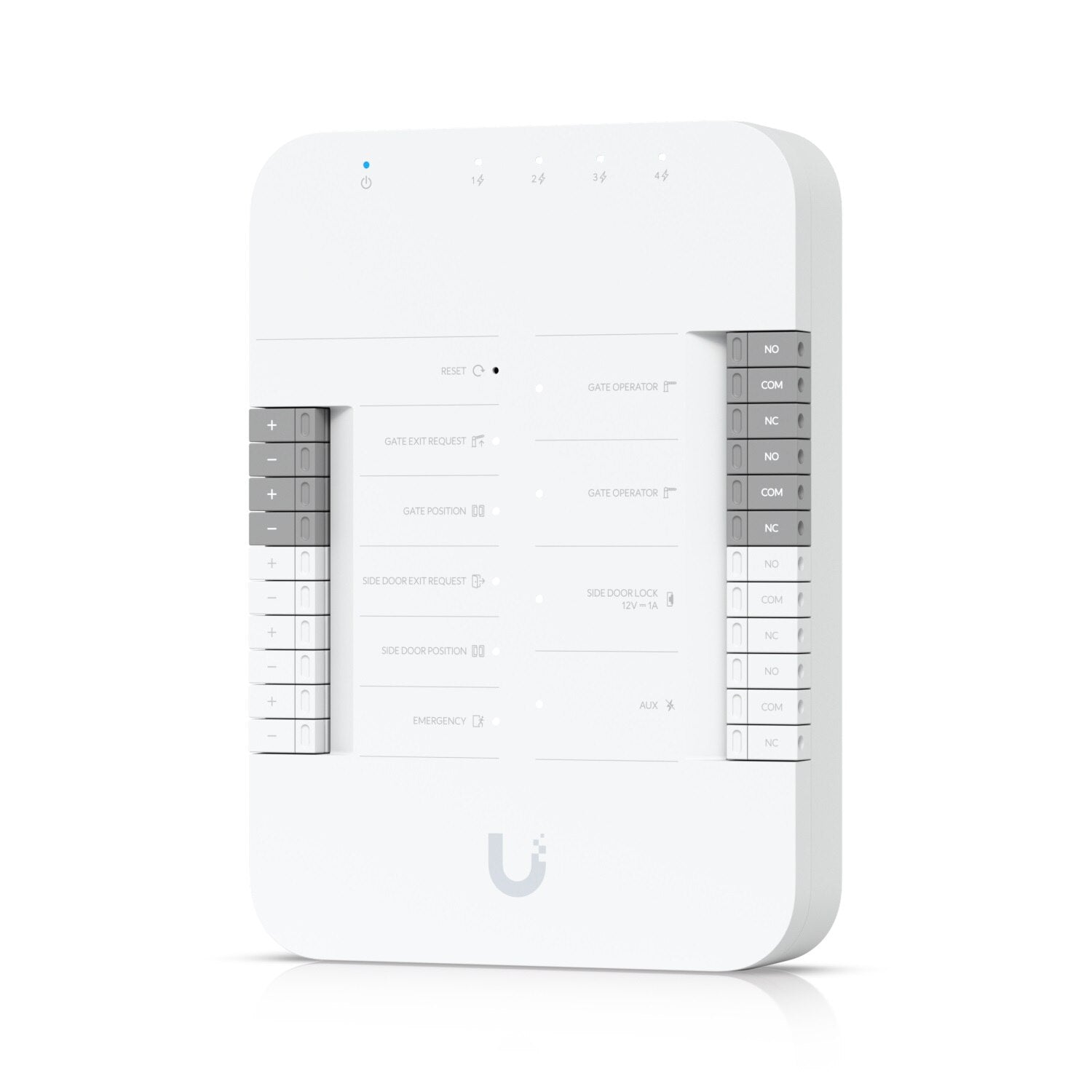

• Digital Input: Gate exit request, gate position, side door exit request, side door position, emergency
• Dry Output Relay: (2) Operator: rated 30V DC, up to 1A (1) Aux: rated 30V DC, up to 1A
• Powered Output Relay: Side door lock: 12V DC, up to 1A
• Button: (1) Factory-reset
• Recommend Max. Cable Length UA-Lock-Electric (400mA): 24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)
• Recommend Max. Cable Length UA-Lock-Magnetic-540kg (500mA): 24 AWG length: 20 m (66 ft) 22 AWG length: 32 m (105 ft) 20 AWG length: 51 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 80 m (262 ft)
• Recommend Max. Cable Length UA-Lock-Magnetic-270kg (800mA): 24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)
• Recommend Max. Cable Length Other locks (1A): 24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)
• PoE Cabling Requirements: Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
• UL 294 Statement: Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
• CAN/ULC-60839-11-1 Grade: Grade assignment: I
• Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• Document number, and issue date and/or revision level: UA-Hub-Gate, V01

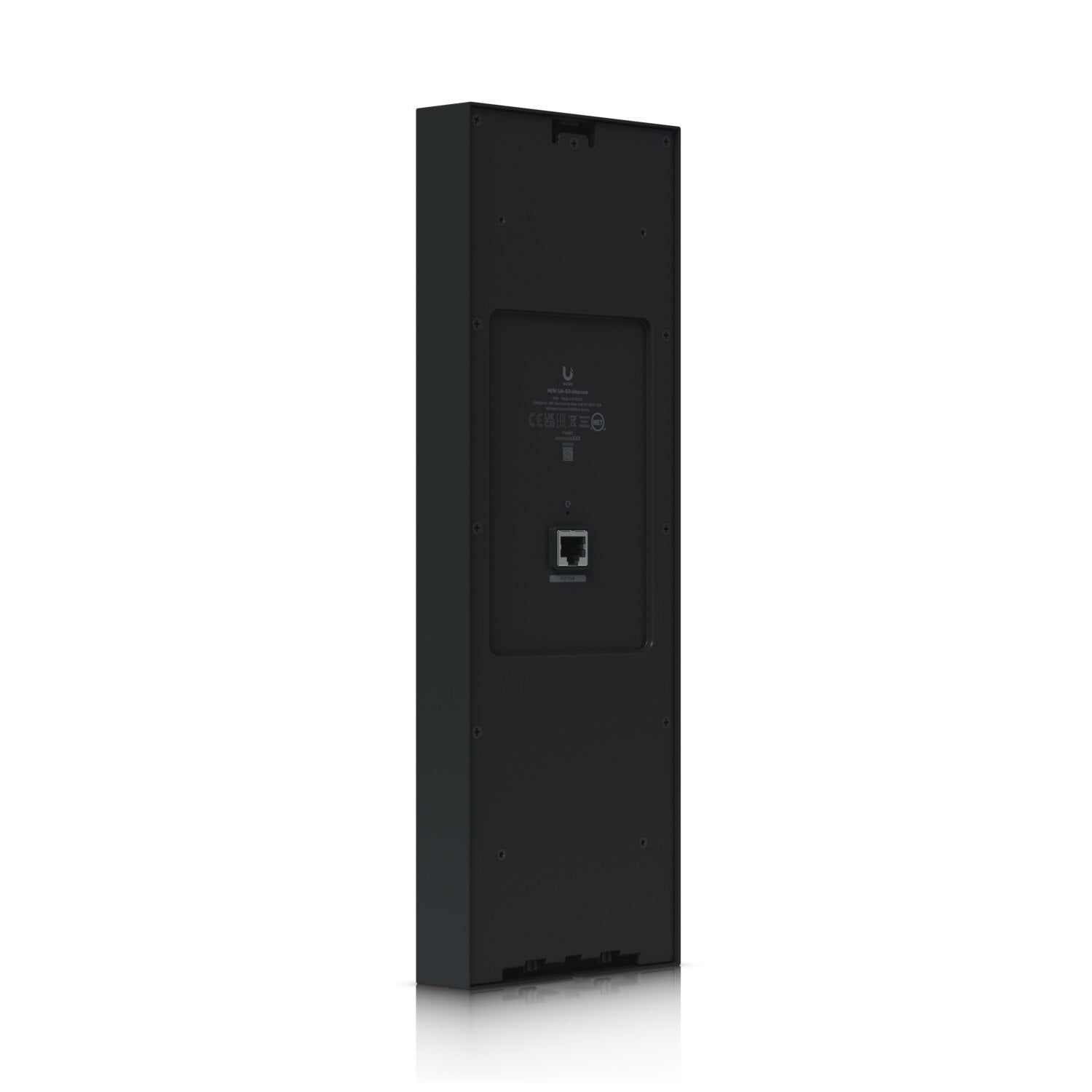

• G3 Intercom Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1")
• Integrated Camera: Yes
• NFC Card & Keyfob Access: Yes
• PIN Access: Yes
• Apple/Google Wallet: Yes
• Mobile Unlock: Yes
• Two-Way Intercom & Doorbell Access: Yes
• Weatherproofing: IP65
• G3 Intercom NDAA Compliant: Yes
• G3 Intercom UL 294 Level: Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I
• G3 Intercom Weight: Device: 965 g (2.1 lb) Bracket: 445 g (1 lb)
• G3 Intercom Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
• Mount Material: Powder-coated stainless steel
• G3 Intercom Mounting: Wall mount, adapter to the gooseneck pedestal (Included) Surface angle, flush mount, sunshield kit (Optional)
• G3 Intercom Indoor and Outdoor Use: Yes
• G3 Intercom Ambient Operating Temperature: Device: -30 to 60° C (-22 to 140° F) Display: -25 to 60° C (-13 to 140° F)
• G3 Intercom Ambient Operating Humidity: 5 to 90% noncondensing
• Connectivity: BLE 4.2 NFC
• Power Method: Universal AC input, 100—240V AC, 50/60 Hz
• UL 294 Power-limited Class 2 PSU: UL 60950-1/62368-1 LPS/PS2 PSU
• G3 Intercom Max. Power Consumption: 13W
• Supported Voltage Range: 48V DC
• Sensors: Proximity sensor ALS sensor
• Display: 177 mm (7") diagonal
• Touch Screen Technology: Capacitive multi-touch
• Display Luminance: Max. 1000 nits (Typical)
• Resolution: 2MP
• Microphone: Yes
• Speaker: (1) Yes, 2W
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18'')
• NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0
• G3 Intercom Buttons: (1) Factory-reset
• G3 Intercom PoE Cabling Requirements: UL 294 Statement
• G3 Intercom CAN/ULC-60839-11-1 Grade: Grade assignment: I
• G3 Intercom Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
• G3 Intercom Document number, and issue date and/or revision level: UA-G3-Intercom, V01
• Retrofit Extender Dimensions: PoE in/out: 40 x 105 x 25 mm (1.6 x 4.1 x 1") Adapter: 43.5 x 138 x 30 mm (1.7 x 5.4 x 1.2")
• Retrofit Extender Weight: PoE in: 77 g (2.7 oz) PoE out: 79 g (2.8 oz) Adapter: 140 g (4.9 oz)
• Retrofit Extender Enclosure Material: Polycarbonate
• Retrofit Extender Mount Material: Polycarbonate
• Coaxial Connector: BNC female
• Retrofit Extender Networking Interface: (1) 10/100 MbE (1) Homeplug AV
• Retrofit Extender Power Method: PoE++
• Retrofit Extender PoE Interface: PoE in: (1) PoE++, 50V DC, 1.2A PoE out: (1) PoE+, 48V DC, 0.6A
• Retrofit Extender Max. Power Consumption: 3W (Without PoE output)
• ESD/EMP Protection: Air: ±8kV, contact: ±4kV
• Retrofit Extender LEDs: White
• Retrofit Extender Ambient Operating Temperature: -10 to 40° C (14 to 104° F)
• Retrofit Extender Ambient Operating Humidity: 5 to 90% noncondensing
• Retrofit Extender NDAA Compliant: Yes
• Retrofit Extender Certifications: CE, FCC, IC
• PoE++ Adapter Model: U-PoE++
• PoE++ Adapter Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
• PoE++ Adapter Weight: 210 g (7.4 oz)
• Output Voltage: 48V DC @ 1.25A
• Gigabit LAN Port: Yes
• Rated Voltage: 100—240V AC @ 50/60Hz
• Input Current: 1.3A @ 120V AC 0.75A @ 230V AC
• Inrush Current: <100A peak @ 120V AC <200A peak @ 230V AC
• Efficiency: 85+%
• Output Ripple: 1% max.
• Switching Frequency: 65 kHz
• Line Regulation: ≤ 1%
• Load Regulation: ≤ 3%
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• AC Connector: IEC-320 C6
• Data In / PoE: RJ45 shielded socket
• Surge Protection: Difference and common mode
• Clamping Protection: 11V data, 60V power
• Max. Surge Discharge: 1500A (8/20 μs) power
• Peak Pulse Current: 36A (10/1000 μs) data
• Shunt Capacitance: <5 pF data
• Response Time: <1 ns
• Power Supply: PoE++
• Supported Voltage Range PoE++ Adapter: 100—240V AC
• Max. PoE+ Wattage per Port by PSE: 60W
• Storage Temperature: -30 to 70°C (-22 to 158° F)
• PoE++ Adapter Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
• PoE++ Adapter Ambient Operating Humidity: 10 to 95% noncondensing
• PoE++ Adapter Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
• PoE++ Adapter NDAA Compliant: Yes
• Touch Pass: 10 free 1-year Touch Passes included
• Access Control Type: Gate Hub
• Compliance: NDAA Compliant
• Number of Supported Cameras: 1
• Operating Humidity: 5% to 90%
• Operating Temperature: -30°C to 60°C / -22°F to 140°F
• Protection Code: IP65
• Technology: Network IP
• Maximum User Count: 6,000
• Face Unlock (G3 INTERCOM): ✓
• Door Phone Type: Camera, Emergency, Indoor, Intercom, Keypad, Outdoor
