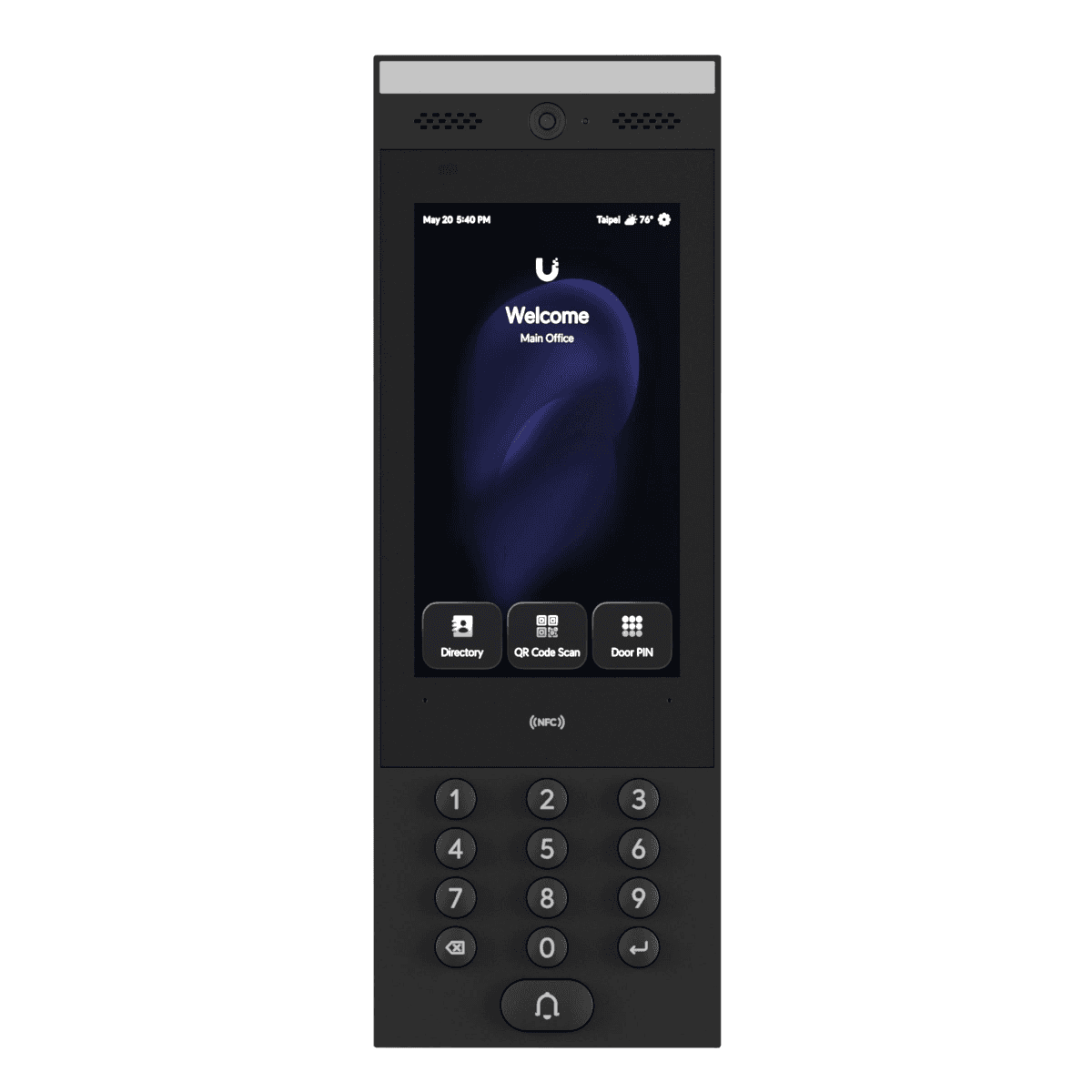

Ubiquiti UA-G3-Intercom G3 Intercom

Product Description

The UBIQUITI UA-G3-INTERCOM G3 Intercom is an indoor/outdoor intercom terminal designed for managing entry requests in residential and commercial buildings. It features an integrated camera and supports versatile entry methods, including Face ID, Touch Pass via Apple and Google Wallet, NFC card or keyfob, and PIN entry. The device is NDAA compliant and UL 294 Level certified.

• Versatile Entry Methods
• Fast, flexible entry with Face ID, Touch Pass via Apple and Google Wallet, NFC card or keyfob, PIN entry, and the UniFi Endpoint Mobile app.
• Integrated Camera

Product Highlights

This intercom offers multiple access options and is suitable for both indoor and outdoor use with IP65 weatherproofing.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UA-G3-INTERCOM

Technical Specifications

• Weatherproofing: IP65
• Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
• Mount Material: Powder-coated stainless steel
• Mounting: Wall mount, adapter to the gooseneck pedestal (Included)
• Indoor and Outdoor Use: Yes
• Networking Interface: (1) GbE RJ45 port
• Connectivity: BLE 4.2, NFC
• Power Method: PoE
• Max. Power Consumption: 13W
• Supported Voltage Range: 48V DC
• Video Max. Frame Rate: 30 FPS
• Resolution: 1024 x 600 px
• Optics Resolution: 8 MP (2448 × 3264)
• Field of View: H: 79.4°, V: 97.5°, D: 118.2°
• Sensors: Proximity sensor, ALS sensor
• Display Size: 177 mm (7") diagonal
• Screen Technology: Capacitive multi-touch
• Luminance: Max. 1000 nits (Typical)
• Screen Orientation: Portrait
• Microphone: ✓
• Speaker: ✓
• NFC Frequency: 13.56 MHz
• NFC Read Range: < 30 mm (1.18")
• NFC Technology: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340), MIFARE Classic / MIFARE DESFIRE, Sony FeliCa™ (ID only), NFC Forum tags T1T, T2T, T3T, T4T and T5T, ECP 2.0
• LEDs: Amber
• Buttons: (1) Factory reset
• Ambient Operating Temperature: Device: -30 to 60° C (-22 to 140° F), Display: -25 to 60° C (-13 to 140° F)
• Ambient Operating Humidity: 5 to 90% noncondensing
• Management Application: Access
• Brand Name: Ubiquiti
• Manufacturer Part Number: UA-G3-INTERCOM
• Connectivity Technology: BLE 4.2, NFC
• Input Voltage: 48V DC
• Mount Type: Wall Mount
