Ubiquiti UA-G2-Black G2 Reader

Product Description

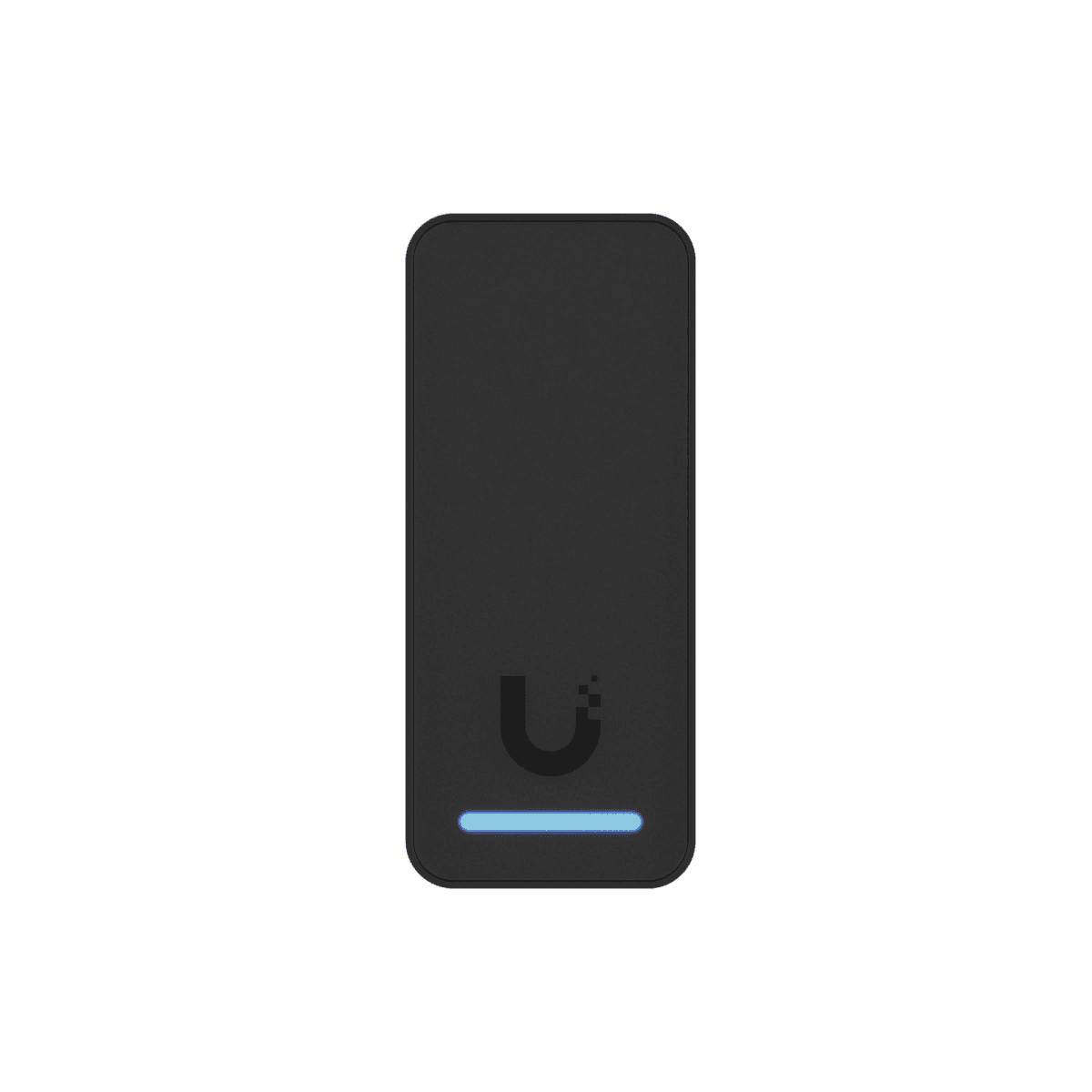

The UBIQUITI UA-G2-Black G2 Reader is a compact, second-generation access reader and request-to-exit device. Unlock doors using an NFC card or the UniFi Identity mobile app. It features entry and exit greeting messages and handwave unlock functionality. Connects to the UniFi Access Hub using PoE and is IP55-rated for weather resistance.

• Unlock Using an NFC Card or UniFi Identity Mobile App
• Entry and Exit Greeting Messages
• IP55 Weather Resistance
• Additional Handwave Unlock Functionality
• Connects to UniFi Access Hub Using PoE

Product Highlights

Compact NFC card reader with hand-wave unlock, PoE connectivity, and IP55 weather resistance for enhanced outdoor security.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: UA-G2-Black
• Country of Origin: China

Technical Specifications

• Color: Black
• Brand: Ubiquiti
• Product Line: Ubiquiti UniFi
• Model: Access Reader G2
• Connectivity Technology: Wired
• Frequency Band: 13.56 MHz
• Wired Protocol: 10/100 Ethernet
• Wireless LAN: Bluetooth 4.1 LE, Mifare, NFC
• Required Voltage: DC 48 volt
• Max Operating Temperature: 113 degree Fahrenheit
• Min Operating Temperature: -22 degree Fahrenheit
• Operating Humidity: 5 - 90% (non-condensing)
• Card Technology: HID MIFARE Classic, HID MIFARE DESFire, HID MIFARE Plus, HID MIFARE Ultralight CSN
• Environment: Outdoor
• Features: In-wall mountable, Reset button, RGB LED indicator
• Integrated Components: Speaker
• Integrated Sensors: Proximity sensor
• Packaged Quantity: 1
• Power Source: PoE
• Product Type: NFC Card Reader
• Included Accessories: Mounting kit
• Height: 3.7 inch
• Width: 1.6 inch
• Depth: 1.4 inch
• Materials: Glass, Polycarbonate
• Color Category: Black
• Compliant Standards: CAN/ULC 60839-11-1, FCC, IC, IP55, ISO 14443 type A, ISO 14443 type B, ISO 15693, UL 294, UL 60950-1, UL 62368-1
• Manufacturer: Ubiquiti Inc.
• Manufacturer Part Number: UA-G2-BLACK
• Product Model: UA-G2-BLACK
• Product Series: UA
• Input Voltage: 48V DC
• Mount Type: Wall Mount
• Environmental Certification: CAN/ULC-60839-11-1, IC, UL 294
• Environmentally Friendly: Yes
• Indoor/Outdoor: Outdoor
