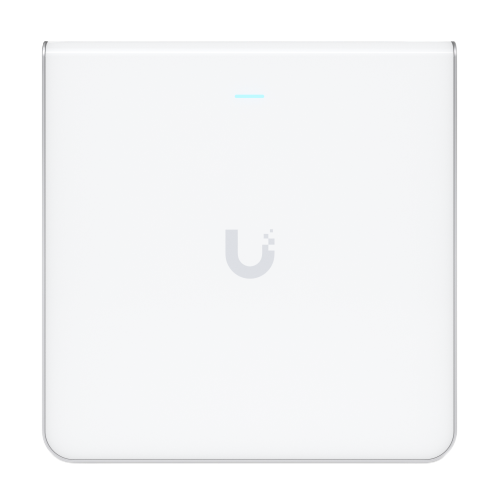

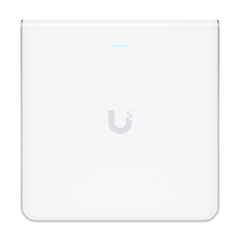

Ubiquiti u6-ent-iw Wifi 6 Wall-mount Access Point

Product Description

The UBIQUITI u6-ent-iw is a tri-band, wall-mountable WiFi 6 access point built for enterprise and commercial network deployments. It operates simultaneously across the 2.4 GHz, 5 GHz, and 6 GHz bands, delivering an aggregate throughput rate of 10.2 Gbps. A built-in 2.5GbE RJ45 uplink port supports high-speed wired backhaul, and the unit is powered via PoE, eliminating the need for a separate power run. The wall-mount form factor positions the radio at desk level, improving signal quality in high-density office, hospitality, and classroom environments. Installation and configuration are handled by network technicians and IT professionals familiar with enterprise WLAN infrastructure.

The u6-ent-iw is suited for enterprise office spaces, commercial buildings, hotels, schools, and other high-density environments where wall-outlet deployment is preferred over ceiling-mount access points. It is designed to support 600 or more concurrent clients, making it appropriate for dense wireless deployments where per-client throughput and airtime efficiency are critical. The in-wall form factor also allows it to replace a standard wall plate, consolidating network access and reducing cable runs at each workstation or room location.

Key Features

• Tri-band WiFi 6 operation across 2.4 GHz, 5 GHz, and 6 GHz simultaneously
• 10.2 Gbps aggregate throughput rate for high-density environments
• 2.5GbE RJ45 uplink port for high-speed wired backhaul
• PoE-powered — no separate power supply or electrical outlet required
• Wall-mount in-wall form factor replaces a standard wall plate
• Supports 600 or more concurrent wireless clients

Compatibility

Designed as an in-wall WiFi 6 access point for enterprise and commercial WLAN deployments requiring PoE-powered, wall-outlet-style installation. US Version.

Installation Notes

Installation should be performed by a qualified network technician or IT professional. Verify that the upstream PoE switch or injector meets the power budget required by the unit before installation. Power down the switch port or disconnect the PoE injector before handling wiring at the wall junction. Follow applicable local low-voltage wiring codes and the manufacturer installation guide when mounting and terminating the uplink cable.

Technical Specifications

• Wireless Standard: WiFi 6 (802.11ax)
• Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz
• Aggregate Throughput: 10.2 Gbps
• Uplink Port: 2.5GbE RJ45
• Power Input: PoE
• Concurrent Client Support: 600+
• Mount Type: In-wall, wall-mount
• Region: US Version

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: u6-ent-iw
