Ubiquiti U-Cable-Patch-RJ45 UniFi Patch Cable 0.1 m

Product Description

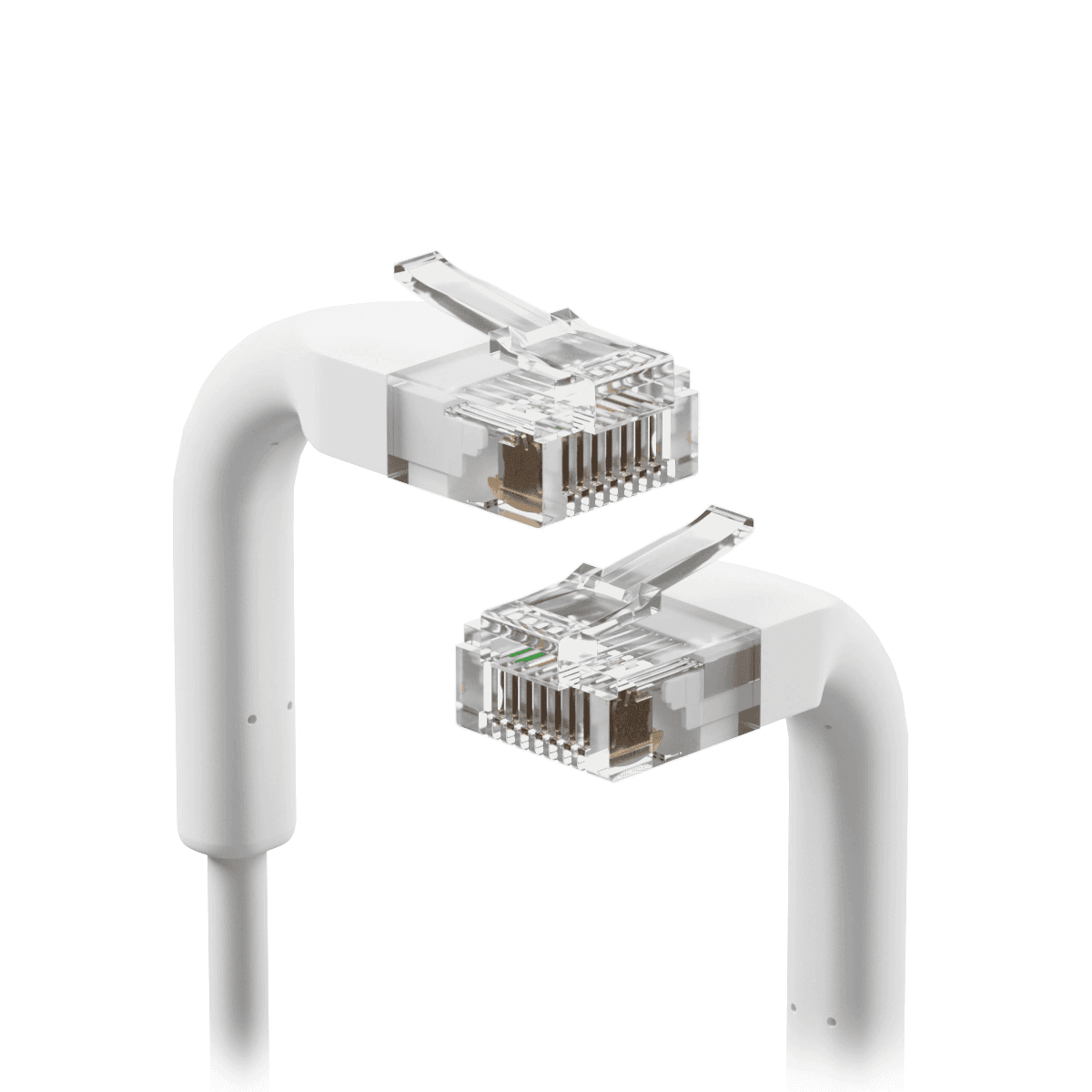

The UBIQUITI U-Cable-Patch-RJ45 UniFi Patch Cable is an ultra-thin patch cable that supports GbE and features flexible, bendable boots for enhanced installation versatility. This Category 6 Ethernet patch cable offers crosstalk and attenuation protection without taking up too much space. It measures 0.1 m in length and has a slim 3mm diameter.

• Bendable booted RJ45 connectors
• 3 mm outer diameter
• Cable length: 0.1 to 8 m

Product Highlights

This UniFi patch cable provides a simpler way to connect devices within the business network, offering convenience and usability with its bendable design and Category 6 cable type.

Product Information

Standard Information

• Brand: UBIQUITI
• Manufacturer Part Number: U-Cable-Patch-RJ45
• Country of Origin: China

Technical Specifications

• Available Lengths: 0.1, 0.3, 1, 2, 3, 5, 8 m (0.3, 1, 3.3, 6.6, 9.9, 16.4, 26.3 ft)
• Available Colors: White, Blue, Black
• Pack Options: Single unit, 50-pack (0.1 m)
• Supported Data Rate: GbE
• Supported PoE Type: Up to PoE+++
• Connector: (2) Bendable booted RJ45
• Operating Environment: Indoor
• Cable Jacket Diameter: 3 mm (0.1")
• Cable Jacket Material: Thermoplastic elastomer (TPE)
• Shielding Type: UTP
• Conductor Type: Stranded copper
• Conductor Wire Gage: 30 AWG
• Bend Radius: Min. 24 mm ( (0.94")
• Flame Rating: FT-2(UL1581)
• Standards: TIA/EIA-568-B.2, ISO/IEC 11801
• Installation Temperature: 0 to 60°C (32 to 140°F)
• Ambient Storage Temperature: -20 to 80°C (-4 to 176°F)
• Ambient Operating Temperature: -10 to 75°C (14 to 167°F)
• Brand Name: Ubiquiti
• Manufacturer: Ubiquiti Inc.
• Manufacturer Part Number: U-CABLE-PATCH-RJ45
• Product Line: UniFi
• Product Model: U-CABLE-PATCH-RJ45
• Product Name: UniFi Patch Cable
• Product Series: UACC
• Product Type: Patch Cable
• Cable Type: Category 6
• Connector on First End: RJ45
• Connector on Second End: RJ45
• Device Supported: Network Device
• Shielding: No
• Connector Type: RJ45
• Cable Length: 0.1m
• Frequency: 250 MHz
• Compatibility: 10/100/1000 Base-T
• Environmental Certification: TIA-568-B.2
• Environmentally Friendly: No
