Product Description
The UBIQUITI ENVR Enterprise NVR is a rack-mountable network video recorder that supports up to 210 HD, 140 2K, or 70 4K cameras. It features 16 3.5" drive bays for storage, data protection, and vantage point capabilities. It has (2) 10G SFP+ ports and (1) 10 GbE RJ45 port for networking. It supports power redundancy and has a 3U form factor.
- Supports up to 210 HD, 140 2K, or 70 4K cameras
- 16 3.5" drive bays for storage
- Data protection
- Vantage point capabilities
- (2) 10G SFP+ ports
- (1) 10 GbE RJ45 port
- Power redundancy
- Rack Mount (3U)
- Door Access Support
- Managed by UniFi Protect and UniFi Access applications
Product Highlights
The Ubiquiti Enterprise NVR supports door access and is managed by UniFi Protect and UniFi Access applications. It supports (16) 2.5/3.5" HDD / SSD with a max power budget of 310W.
Product Information
Standard Information
-
Brand: UBIQUITI
-
Manufacturer Part Number: ENVR
-
Country of Origin: United States
Technical Specifications
-
Managed Cameras (HD): 210
-
Managed Cameras (2K): 140
-
Managed Cameras (4K): 70
-
Managed Access Hubs: 300
-
Storage Capacity: (16) 3.5" drive bays
-
Data Protection: ✓
-
Vantage Point: ✓
-
Networking Interface: (2) 10G SFP+ ports
(1) 10 GbE RJ45 port
-
Power Redundancy: ✓
-
Form Factor: Rack Mount (3U)
-
Door Access Support: ✓
-
Management Application: UniFi Protect
UniFi Access
-
Hard Drive Capacity: (16) 2.5/3.5" HDD / SSD support
-
Max. Power Budget for Drives: 310W
-
Max. Power Consumption: 410W
-
Power Method: (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
-
Power Supply: Hot-swappable 550W CRPS
-
Processor: 8-core ARM® at 2.5 GHz
-
Memory: 32 GB
-
Management: Ethernet
-
Enclosure Material: SGCC steel
-
Mount Material: Aluminum
-

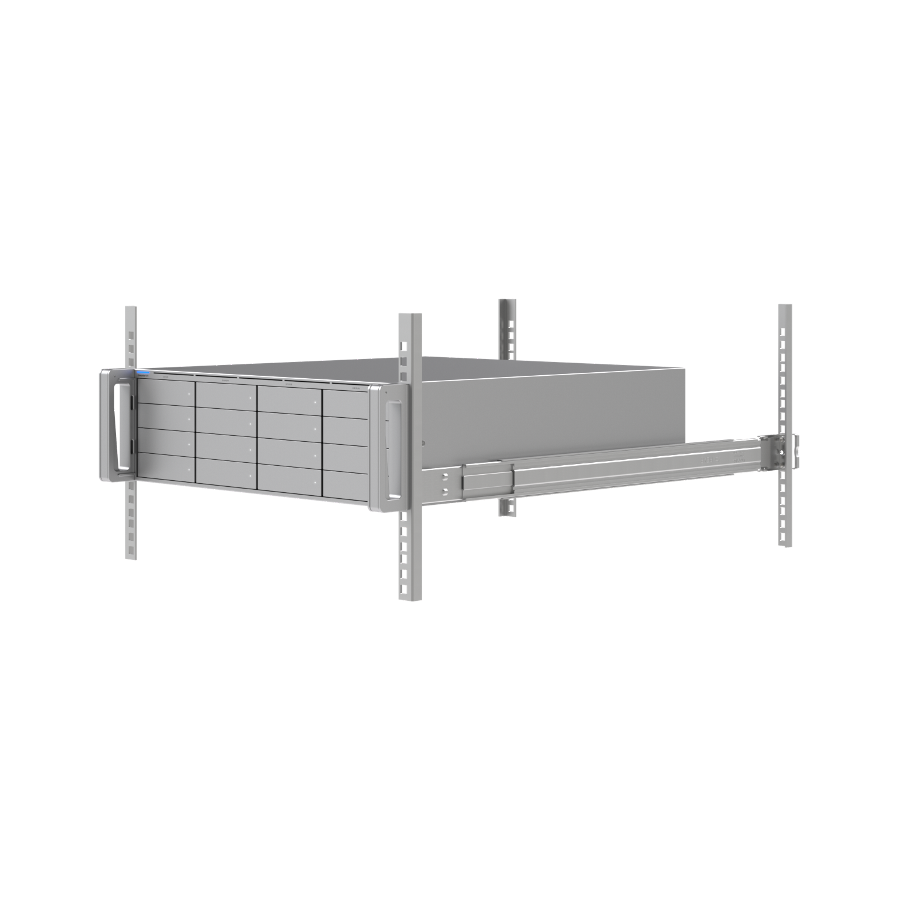

Slide Rails: 482.6 mm (19") four-post racks
Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
-
Ambient Operating Temperature: -5 to 40° C (23 to 104° F)
-
Ambient Operating Humidity: 5 to 95% noncondensing
-
NDAA Compliant: ✓
-
Certifications: CE, FCC, IC
-
Connectivity Technology: Ethernet, USB
-
Compatible Devices: Camera
-
Brand: Ubiquiti Networks
-
Number of Channels: 70
-
Management interface: Ethernet In-Band
-
Networking interface: (1) 1/2.5/5/10 GbE RJ45 port (2) 1/10 GbE SFP+ ports
-
Supported voltage range: 100—240V AC
-
ESD/EMP protection: Air: ± 12kV, contact: ± 8kV
-
Button: Factory reset
-
LEDs System: (1) Power: blue/white
Flashing white: bootup in progress
Flashing blue: firmware upgrading
Steady white: factory defaults, awaiting adoption
Steady blue: device is adopted
-
Ethernet: Green: link/activity
-
SFP+: Green: link/activity
-
HDD: White: disk detected
Amber: disk error
