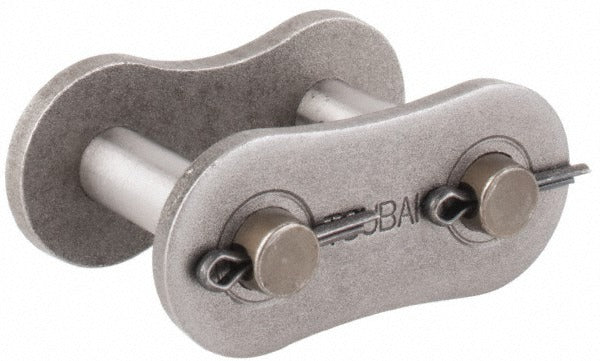

U.s. Tsubaki 100CL Connecting Link 1-1/4 in Single Strand

Product Description

The U.S. TSUBAKI 100CL is a single-strand connecting link designed for ANSI 100 roller chain with a 1-1/4 inch pitch. It serves as the closure link that joins the two ends of a roller chain run, allowing the chain to be installed, removed, or replaced without special tooling. Constructed from carbon steel, the 100CL provides the tensile strength required for standard ANSI 100 chain applications. This link weighs 0.28 pounds and is packaged as a single unit. It is installed by mechanical and industrial maintenance technicians wherever ANSI 100 chain drives are in service.

The 100CL connecting link is suited for industrial drive and conveyor applications that use single-strand ANSI 100 roller chain. Typical installations include power transmission drives on agricultural equipment, material handling conveyors, industrial machinery, and similar chain-driven systems operating at ANSI 100 chain specifications. The 1-1/4 inch pitch dimension must match the installed chain exactly for a proper fit.

Key Features

• Fits ANSI 100 single-strand roller chain with 1-1/4 inch pitch
• Carbon steel construction for strength in standard industrial drive applications
• Meets ANSI chain standards for dimensional and performance compliance
• Single-unit packaging for individual replacement or service use
• Allows chain installation and removal without cutting or pressing tools

Compatibility

Designed as an OEM-style replacement connecting link for single-strand ANSI 100 roller chain with a 1-1/4 inch pitch, conforming to ANSI chain standards.

Installation Notes

Installation is performed by qualified mechanical or industrial maintenance technicians. De-energize and lock out the drive system completely before opening or closing any chain link. Confirm the chain pitch and strand count of the existing chain match the 100CL before installation. The connecting link clip or cotter pin should be installed with the closed end facing the direction of chain travel.
