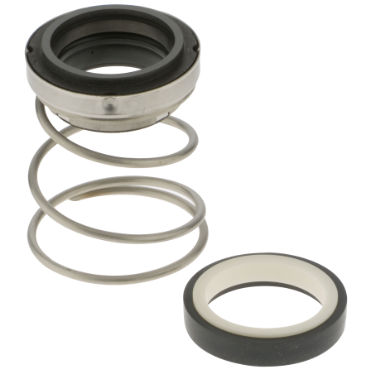

U.S. Seal Manufacturing PS-1049 Pump Seal

Product Description

The U.S. Seal Manufacturing PS-1049 is a pump seal designed for reliability and functionality in various pumping applications. This product features robust materials and a specific design to ensure effective sealing under pressure.

• Compatible with shafts measuring one inch in diameter.
• Maximum pressure resistance of 200 psi.
• Effective temperature range between -40 °F to 225 °F.

Product Highlights

This pump seal is suitable for a range of industrial settings, providing a durable solution for controlling fluid flow. Ideal for use in pumps with a head type of C and a seat type of 3.

Product Information

Standard Information

• Brand: U.S. Seal Manufacturing
• Part #: 101697217

Technical Specifications

• Elastomers Material: Buna
• Temperature Range [Max]: 225 °F
• Washer Material: Carbon
• Head Type: C
• Pressure: 200 psi
• Seat Material: Ceramic
• Temperature Range [Min]: -40 °F
• Seat O.D.: 1.625 inches
• Seat Type: 3
• Shaft Dia.: 1 inch
• Metal Parts Material: Stainless Steel
• Spring Material: Stainless Steel
• Weight: 0.25 LB
