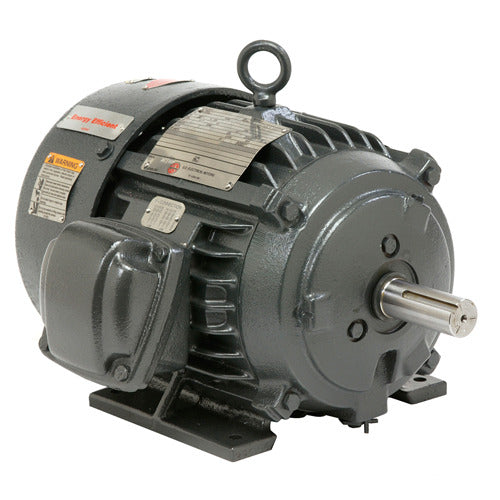

U.S. Motors X7P1B Explosion Proof Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors X7P1B is an explosion proof three phase motor designed for industrial applications. With a power rating of seven and a half horsepower, it operates at three thousand six hundred RPM and is suitable for a variety of environments.

• Operates at 230/460 voltage
• Designed with a TEFC enclosure for protection
• Features horizontal footed mounting for stability

Product Highlights

This motor is engineered for consistent use in demanding settings where safety and efficiency are crucial.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: X7P1B

Technical Specifications

• Service Factor: 1
• Duty: Continuous Duty
• Frequency: 60 Hz
• Mounting: Horizontal - Footed
• Insulation Class: F
• Frame Material: Cast Iron
• RPM: 3600
• Frame Size: 213T
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Amps: 18.6/9.3
• Voltage Rating: 230/460
• Poles: 2
• C Dimension: 19.2 inches
• Weight: 156.0 LB
• EAN or UPC: 786382092535
