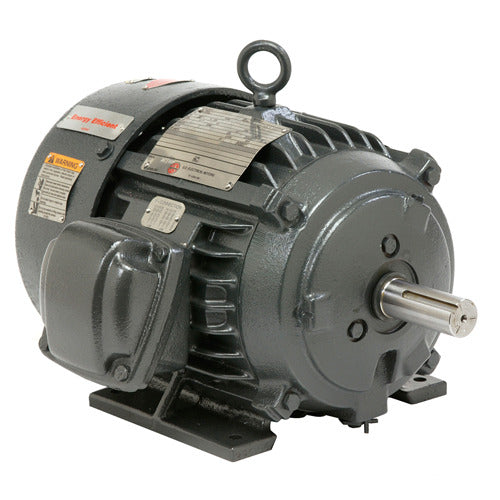

U.S. Motors X25P3B Explosion Proof Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors X25P3B is an explosion-proof three-phase horizontal footed motor designed for reliable performance in hazardous locations. It operates at twenty-five horsepower with a speed of twelve hundred RPM, making it suitable for various industrial applications.

• Continuous duty rating
• TEFC enclosure for optimal protection
• Designed for three-phase power systems

Product Highlights

This motor is suitable for applications that require robust and efficient operation, especially in environments where safety is paramount. It features a rigid base for stable mounting and offers an insulation class of F.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: X25P3B

Technical Specifications

• Duty: Continuous Duty
• Enclosure: TEFC
• Mounting: Horizontal - Footed
• Frame Material: Cast Iron
• Insulation: F
• Phase: Three Phase
• Full Load Efficiency: 93%
• Voltage Rating: 230/460
• Frame: 324T
• Poles: 6
• Full Load RPM: 1190 RPM
• Full Load Amps: 61/31
