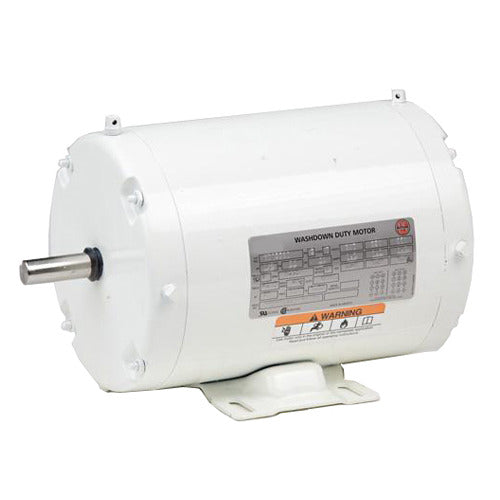

U.S. Motors WD2P2A14 Washdown Duty Three Phase TEFC Rigid Motor

Product Description

The U.S. Motors WD2P2A14 is designed for washdown duty applications. This three-phase motor features a TEFC enclosure that protects it from moisture and dust. It provides two horsepower and operates at eighteen hundred revolutions per minute. This motor is suitable for a variety of industrial settings where durability and reliability are essential.

• Two horsepower
• TEFC design for protection
• Rated for continuous duty

Product Highlights

Ideal for washdown environments, the WD2P2A14 is built to last and maintain performance under wet conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD2P2A14

Technical Specifications

• Phase: Three Phase
• C Dimension: Fourteen point seven inches
• Hz: Sixty Hz
• Frame: 145T
• RPM: Eighteen hundred RPM
• Duty: Continuous Duty
• Insulation: F Class
• Full Load Amps: Six point two - six / three
• Enclosure: TEFC
• Poles: Four
• Voltage Rating: Two hundred eight - two hundred thirty / four hundred sixty
• Mounting: Rigid
• Full Load Efficiency: Eighty-six point five percent
• Weight: Twenty-six pounds
• EAN or UPC: Seven eight six three eight two zero nine seven three seven zero
