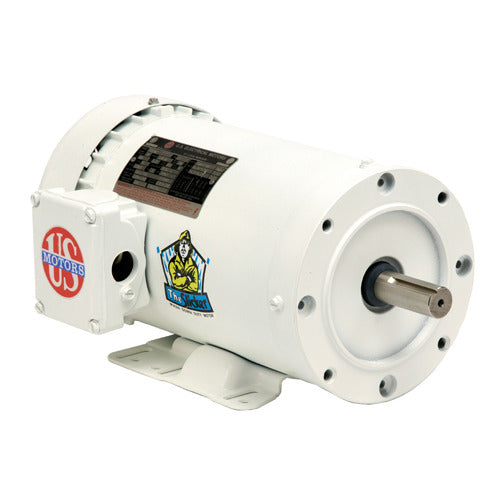

U.S. Motors WD15P1DFC Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors WD15P1DFC is a washdown duty three phase TEFC horizontal footed motor designed for reliable performance in various applications. This motor features a power rating of fifteen horsepower and operates at a speed of three thousand six hundred revolutions per minute. It is engineered to meet demanding operational requirements and is suitable for use in wet and harsh environments.

• Voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts, and one hundred ninety to three hundred eighty volts.
• Continuous duty design with a TEFC enclosure for added protection.
• Includes a 215TC frame size with a mounting configuration suitable for horizontal footed installation.

Product Highlights

This motor is ideal for industrial applications where reliability and efficiency are critical. Its high efficiency rating of ninety-three percent ensures lower energy consumption while maintaining powerful performance.

Product Information

Standard Information

• Brand: U.S. Motors
• Power: 15 hp

Technical Specifications

• Mounting: Horizontal - Footed
• Insulation: F
• Phase: Three Phase
• Hz: 50/60 Hz
• Full Load Amps: 38-35/17.4
• Frame: 215TC
• Voltage Rating: 208-230/460 & 190/380
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Full Load Efficiency: 93 %
• Duty: Continuous Duty
• RPM: 3600 rpm
• Poles: 2
• Motor Application: Washdown Duty
• Weight: 154.0 LB
• EAN or UPC: 786382106577
