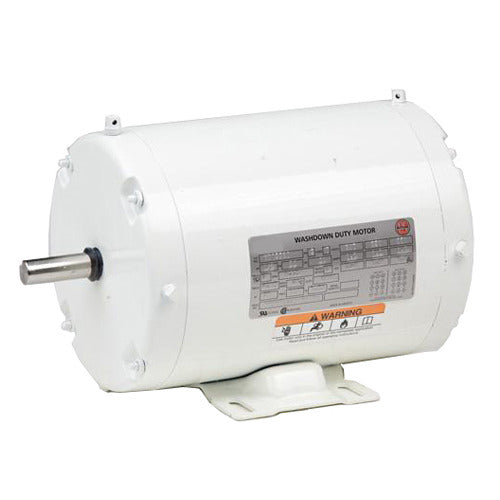

U.S. Motors WD10P2D Washdown Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors WD10P2D is a washdown duty three phase TEFC horizontal footed motor designed for demanding applications. This motor offers reliable performance with a power rating of ten horsepower and operates at an efficient speed of one thousand eight hundred rpm. The TEFC design provides protection from moisture and dust, making it suitable for wet environments.

• Ten horsepower power output
• Efficient performance with a full load efficiency of ninety-one point seven percent
• Suitable for continuous duty applications

Product Highlights

This motor is ideal for washdown applications where water and contaminants are present. It features a robust construction to withstand harsh conditions.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: WD10P2D

Technical Specifications

• Phase: Three Phase
• Full Load Efficiency: 91.7%
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Hz: 50/60 Hz
• Duty: Continuous Duty
• C Dimension: 19.2 inches
• Voltage Rating: 208-230/460 & 190/380
• Poles: 4
• Frame: 215T
• Full Load Amps: 26.5-23.9/11.9
• RPM: 1800 rpm
• Mounting: Horizontal - Footed
• Motor Application: Washdown Duty
• Service Factor: 1.15
• Full Load rpm: 1440 rpm, 1760 rpm
• Insulation: F
• Weight: 125.0 LB
• EAN or UPC: 786382097981
