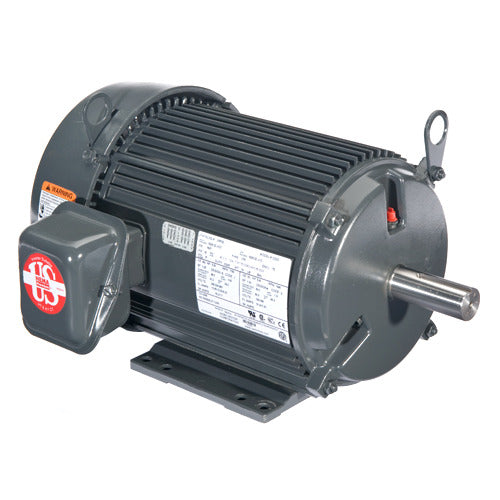

U.S. Motors U3D10C General Purpose Three Phase Horizontal - Footed Motor

Product Description

The U.S. Motors U3D10C is a general-purpose three-phase horizontal footed motor designed for various applications. This motor operates at a voltage rating of four hundred sixty volts and is engineered for continuous duty use.

• Motor Power: 3 hp, 2 hp
• Voltage: 460 V
• Frame Size: 213T

Product Highlights

This motor features a totally enclosed design, suitable for challenging environments. Its efficient performance is evident with a full load efficiency of eighty-two point five percent.

Product Information

Standard Information

• Motor Application: General Purpose
• Mounting: Horizontal - Footed

Technical Specifications

• Hz: 60 Hz
• Poles: 4/6
• Insulation Class: F
• Drive End Bearing: 6206-2Z-J/C3
• Full Load RPM: 1180 rpm, 1770 rpm
• Weight: 90.0 lb
• Service Factor: 1
• Full Load Amps: 4.2
