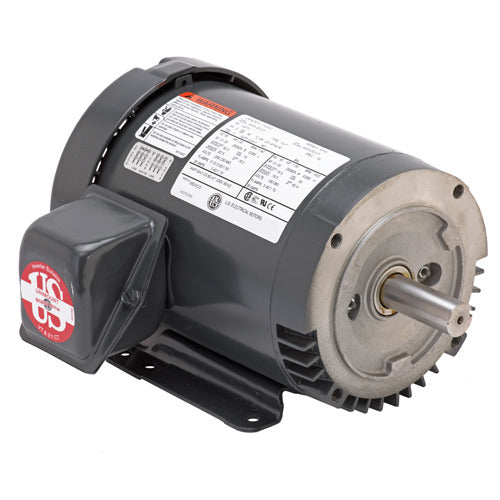

U.S. Motors U32P1GC General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U32P1GC is a general purpose three-phase electric motor designed for various industrial applications. This motor features a total enclosure, protecting it from environmental hazards while ensuring efficient operation. It operates at a speed of three thousand six hundred RPM and is suitable for use with a voltage rating of five hundred seventy-five volts.

• Service Factor: 1.25 for enhanced performance
• Efficiency Rating: 84% for effective energy use
• Frame Size: 143TC for standard mounting

Product Highlights

This motor is ideal for driving fans, blowers, compressors, and pumps in a range of industrial settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U32P1GC

Technical Specifications

• Enclosure: TEFC
• Phase: Three Phase
• Mounting: Horizontal - Footed
• RPM: 3600
• Frame Material: Rolled Steel
• Service Factor: 1.25
• Full Load Efficiency: 84%
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Hz: 60
• C Dimension: 12.1 inches
• Frame: 143TC
• Duty: Continuous Duty
• Voltage Rating: 575
• Poles: 2
• Insulation: F
• Full Load RPM: 3510
• Motor Application: General Purpose
• Full Load Amps: 1.6
• Weight: 30.0 LB
• EAN or UPC: 786382087739
