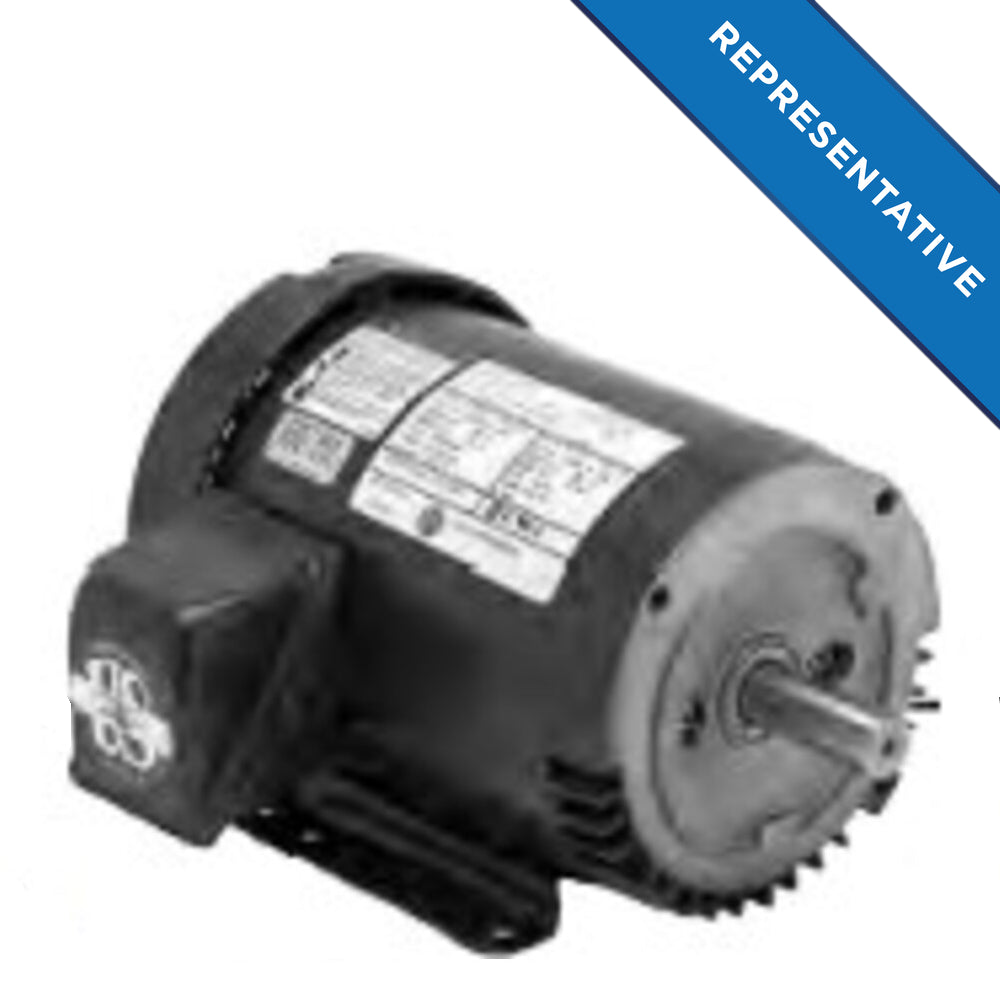

U.S. Motors U2P2GFC General Purpose Three Phase TEFC C-Face/Base Motor

Product Description

The U.S. Motors U2P2GFC is a general purpose three phase motor designed for a variety of applications. This TEFC (Totally Enclosed Fan Cooled) motor operates at 2 horsepower and has a rated speed of 1800 RPM. It is suitable for numerous industrial tasks including powering fans, blowers, and pumps.

• Motor type: AC, suitable for general purpose applications
• Voltage rating: 575 volts
• Frame size: 56C

Product Highlights

This motor is ideal for direct connection to equipment in commercial and industrial settings. The continuous duty rating ensures reliable performance for long durations.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: U2P2GFC

Technical Specifications

• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Phase: Three Phase
• Voltage Rating: 575 volts
• Mounting: C-Face/Base
• Poles: 4
• Enclosure: TEFC
• Motor Application: General Purpose
• Full Load Efficiency: 85.5%
• Frame: 56C
• Duty: Continuous Duty
• Insulation: F
• Full Load Amps: 2.5
• Service Factor: 1.25
• C Dimension: 13.8 inches
• Frequency: 60 Hz
• RPM: 1800
• Full Load RPM: 1725
• Weight: 49.5 lbs
• EAN or UPC: 786382116095
