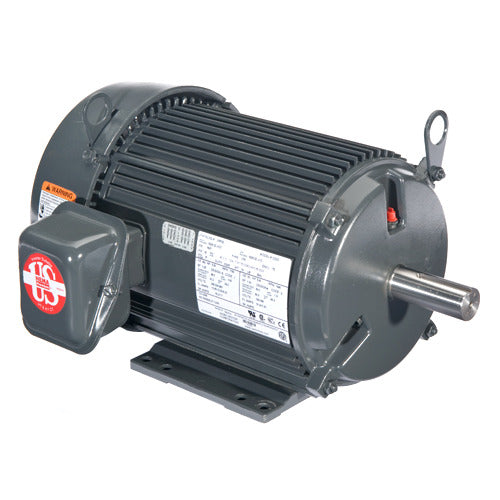

U.S. Motors U20P1H General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U20P1H is a general-purpose three-phase motor designed for various industrial applications. With a rated power of twenty horsepower and a speed of three thousand six hundred RPM, it operates at a voltage of two hundred. The motor features a totally enclosed fan cooled (TEFC) design, making it suitable for harsh environments.

• 20 horsepower rating
• Continuous duty operation
• Aluminum frame with horizontal footed mounting

Product Highlights

This motor is ideal for applications that require reliable performance in demanding settings.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: U20P1H

Technical Specifications

• Mounting: Horizontal - Footed
• Service Factor: 1.25
• Phase: Three Phase
• Poles: 2
• Full Load Efficiency: 91%
• Full Load RPM: 3535
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Frequency: 60 Hz
• Full Load Amps: 53
• Voltage Rating: 200
• Frame: 256T
• Frame Material: Aluminum
• Motor Application: General Purpose
• Duty: Continuous Duty
• Insulation: F
• C Dimension: 26.1 in
• Weight: 230.0 LB
• EAN or UPC: 786382087463
