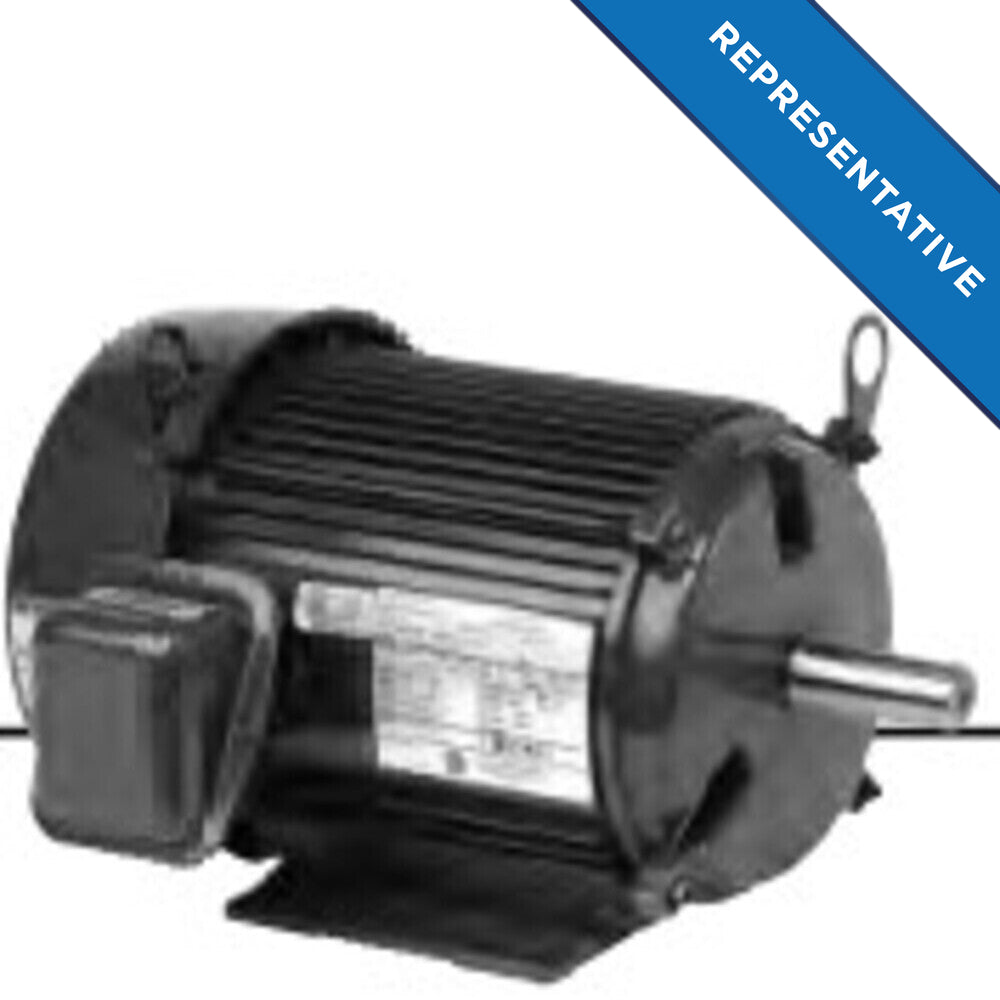

U.S. Motors U10P3G General Purpose Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors U10P3G is designed for general purpose applications. This three-phase motor features a totally enclosed, fan-cooled (TEFC) construction suitable for various industrial uses. It has a power output of ten horsepower and operates at a full load speed of twelve hundred rpm. With a voltage rating of five hundred seventy-five volts and a continuous duty design, this motor is reliable for demanding tasks.

• Power: 10 HP
• Speed: 1200 RPM
• Voltage: 575

Product Highlights

This motor is ideal for fans, blowers, compressors, and pumps. Its durable aluminum frame ensures longevity and efficiency in performance.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: 105530709

Technical Specifications

• Frame: 256T
• Weight: 250 LB
• Insulation: F
• Poles: 6
• Full Load Amps: 9.8
• Full Load Efficiency: 91.7%
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• Duty: Continuous Duty
