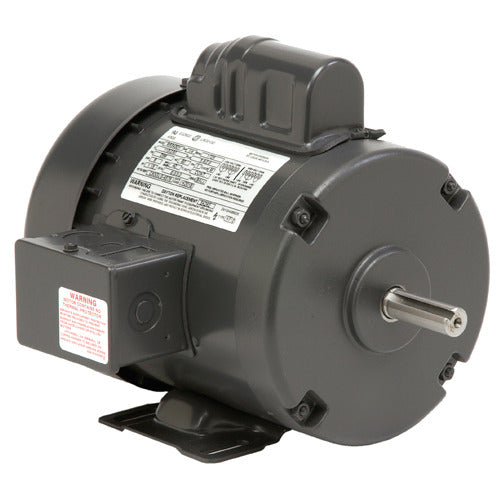

U.S. Motors T1CA1J General Purpose Single Phase TEFC Rigid Base Motor

Product Description

The U.S. Motors T1CA1J is a general-purpose single-phase motor designed for various applications. This motor operates at one horsepower and features a totally enclosed fan-cooled (TEFC) design for enhanced durability.

• Voltage rating of 115/208-230 for flexibility
• Capable of delivering a speed of 3600 RPM
• Rugged rigid base mounting for stability

Product Highlights

This motor is suitable for a variety of tasks, from HVAC applications to industrial machinery. Its robust design ensures reliable performance over time.

Product Information

Standard Information

• Motor Application: General Purpose
• Thermal Protection: Automatic Reset

Technical Specifications

• Design: N
• C Dimension: 12.3 inches
• Frame: 56
• Phase: Single Phase
• RPM: 3600 RPM
• Voltage Rating: 115/208-230
• Poles: 2
• Enclosure: TEFC
• Full Load Amps: 13.6/6.9-6.8
• Service Factor: 1.15
• Full Load Efficiency: 66.7%
• Weight: 27.0 lb
• EAN/UPC: 786382069216
