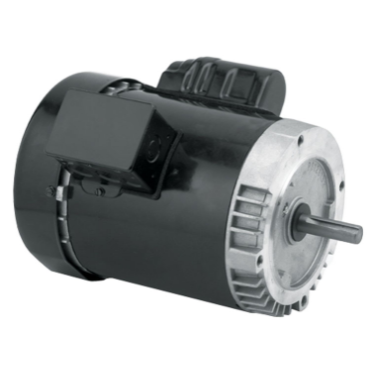

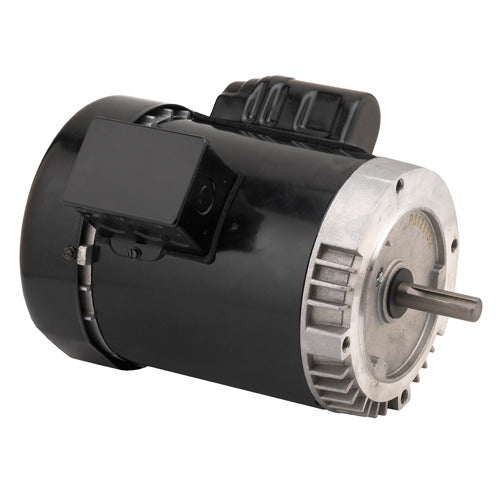

U.S. Motors T12C2ZCR General Purpose Single Phase TEFC C-Face Motor

Product Description

The U.S. Motors T12C2ZCR is a general purpose single phase TEFC C-face motor. It is designed for applications that require reliable performance and durability. This motor is ideal for HVAC systems, pumps, fans, and various machinery.

• Power: 1/2 horsepower
• Speed: 1800 RPM
• Voltage: 100-120 and 200-240

Product Highlights

This motor features a TEFC enclosure for protection against dust and moisture. It operates at a frequency of 60 Hz and has a continuous duty rating, making it suitable for prolonged use.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T12C2ZCR

Technical Specifications

• Insulation: B
• Poles: 4
• Enclosure Designation: TEFC - Totally Enclosed Fan Cooled
• HP: 1/2
• Full Load RPM: 1800 RPM
• Service Factor: 1.25
• Mounting: C-Face - Less Base
• Frame: 56C
• Weight: 25.0 LB
