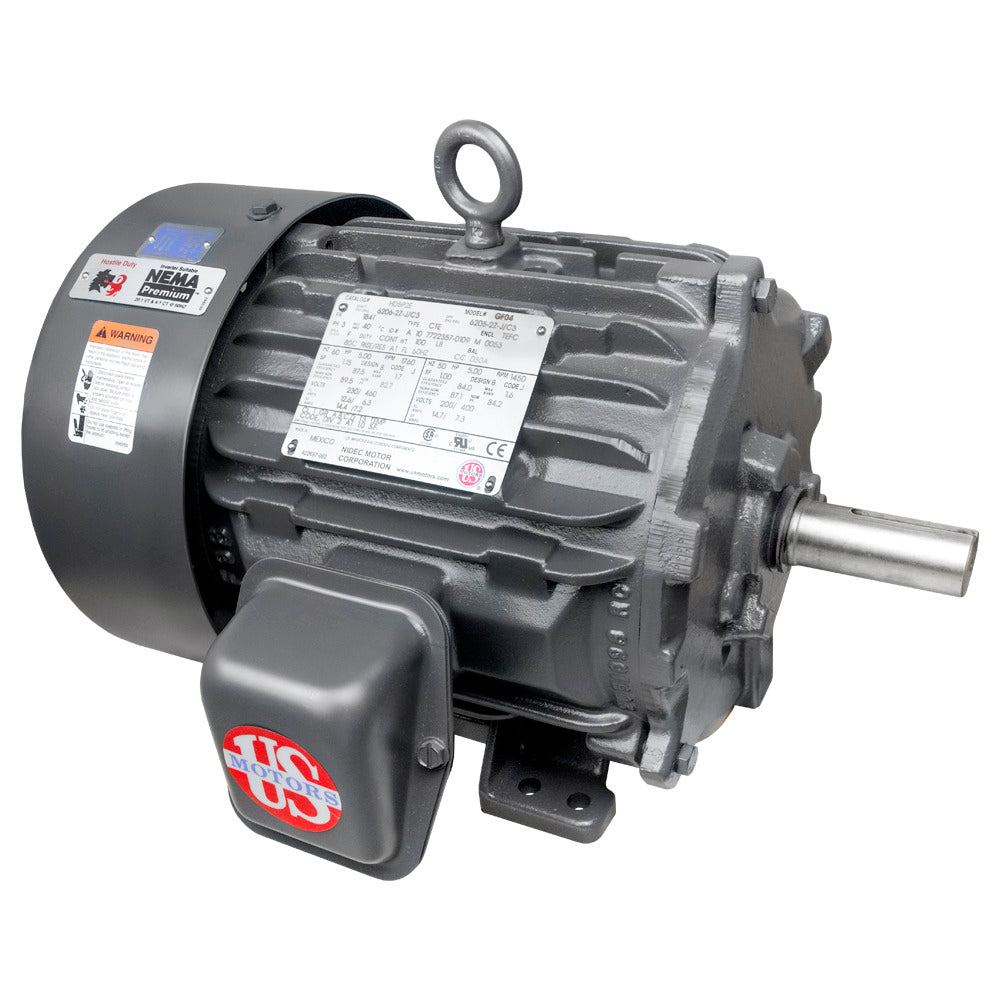

U.S. Motors HD7P1H Hostile Duty Three Phase TEFC Horizontal - Footed Motor

Product Description

The U.S. Motors HD7P1H is a reliable three-phase motor designed for hostile duty applications. This motor operates at a power of seven and a half horsepower, making it suitable for heavy-duty tasks. It features a TEFC (Totally Enclosed Fan Cooled) enclosure that protects the motor from dust and moisture, ensuring longevity and performance.

• Power: 7.5 hp
• Speed: 3600 rpm
• Mounting: Horizontal - Footed design

Product Highlights

This motor is designed for use in harsh environments, ideal for industries including pulp and paper, mines, and foundries. It operates on a voltage range of two hundred to two hundred eight volts and is built with a cast iron frame for durability.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: HD7P1H

Technical Specifications

• Motor Application: Hostile Duty
• Voltage Rating: 200-208
• Enclosure: TEFC
• Insulation: F
• Poles: 2
• Mounting: Horizontal - Footed
• Full Load rpm: 3525 rpm
• Phase: Three Phase
• Duty: Continuous Duty
• Frame: 213T
• Weight: 130 LB
• Full Load Efficiency: 89.5%
