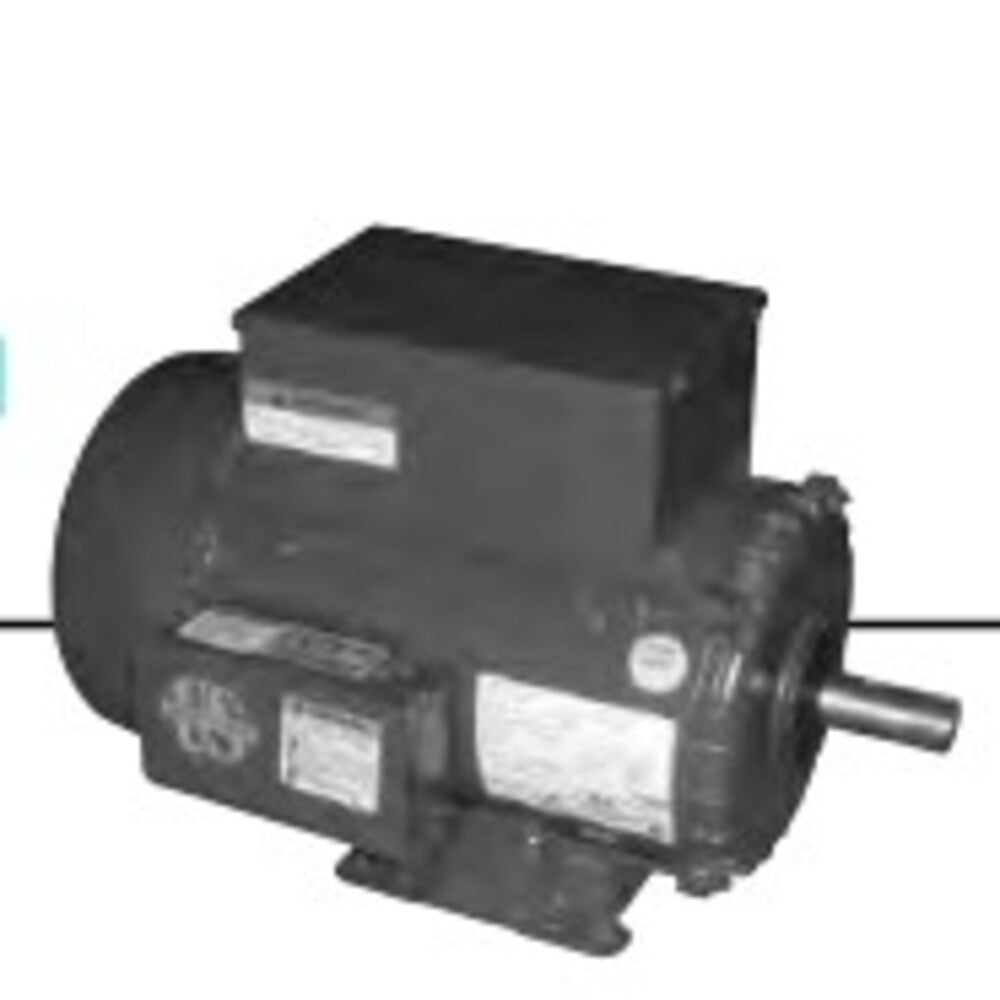

U.S. Motors FD1CM2PHC General Purpose Single Phase TEFC Rigid Motor

Product Description

The U.S. Motors FD1CM2PHC is a general-purpose single-phase TEFC rigid motor with a power rating of one horsepower. This motor features a design that allows it to operate efficiently in various applications.

• Full load efficiency of 71.4%
• Continuous duty rating for reliable operation
• TEFC enclosure for enhanced protection

Product Highlights

The FD1CM2PHC motor is built for durability and consistent performance in diverse settings. Its rigid mounting design and robust build make it suitable for use in commercial and industrial applications.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: FD1CM2PHC

Technical Specifications

• Power: 1 hp
• RPM: 1800
• Voltage Rating: 115/230
• Frame Size: 56HC
• Mounting Type: Rigid
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Service Factor: 1.15
• Full Load Amps: 14/7
• Thermal Protection: Manual Reset
• Full Load Efficiency: 71.4%
• Weight: 34.92 lbs
• Poles: 4
• Insulation Class: F
• C Dimension: 12.8 inches
• Duty Type: Continuous Duty
