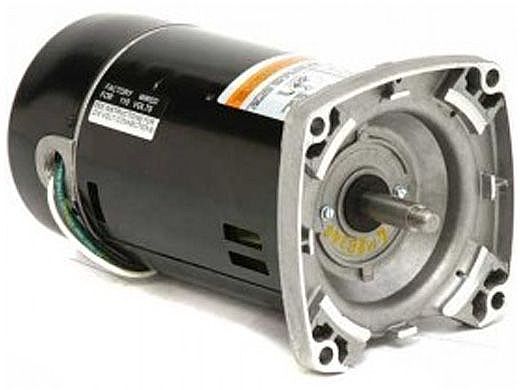

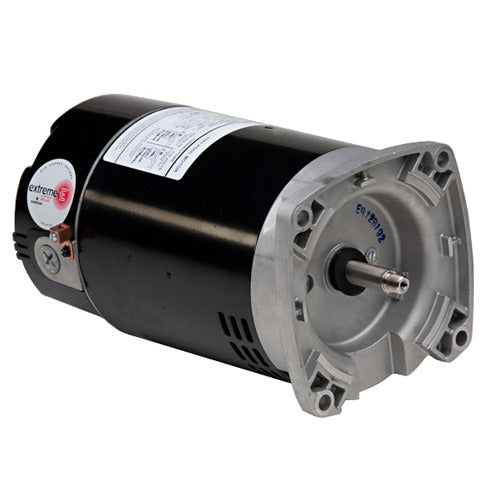

U.S. Motors EH491 Definite Purpose Three Phase ODP Square Flange Motor

Product Description

The U.S. Motors EH491 is a definite purpose three phase ODP square flange motor. With a power rating of one half horsepower, this motor is designed for specific applications such as pool and spa use. It operates at a full load speed of three thousand six hundred RPM, making it suitable for numerous operational needs.

• Power Rating: 1/2 HP
• Enclosure Type: ODP (Open Drip Proof)
• Voltage Type: 208-230/460 volts

Product Highlights

This motor is built to provide reliable performance in continuous duty applications. The square flange mount allows for easy installation in various setups, making it an excellent choice for trade professionals in need of dependable motor solutions.

Product Information

Standard Information

• Brand: U.S. Motors
• Part Number: EH491

Technical Specifications

• Mounting: Square Flange
• Enclosure: ODP
• Motor Application: Pump Motor, Definite Purpose
• Insulation: Class B
• RPM: 3600
• Poles: 2
• Frequency: 60 Hz
• Duty: Continuous Duty
• Voltage Rating: 208-230/460
• Service Factor: 1.9
• Weight: 23 LB
• C Dimension: 11.2 in
• Drive End Bearing: 6206-2Z-J/C3
• Open End Bearing: 6205-2Z-J/C3
