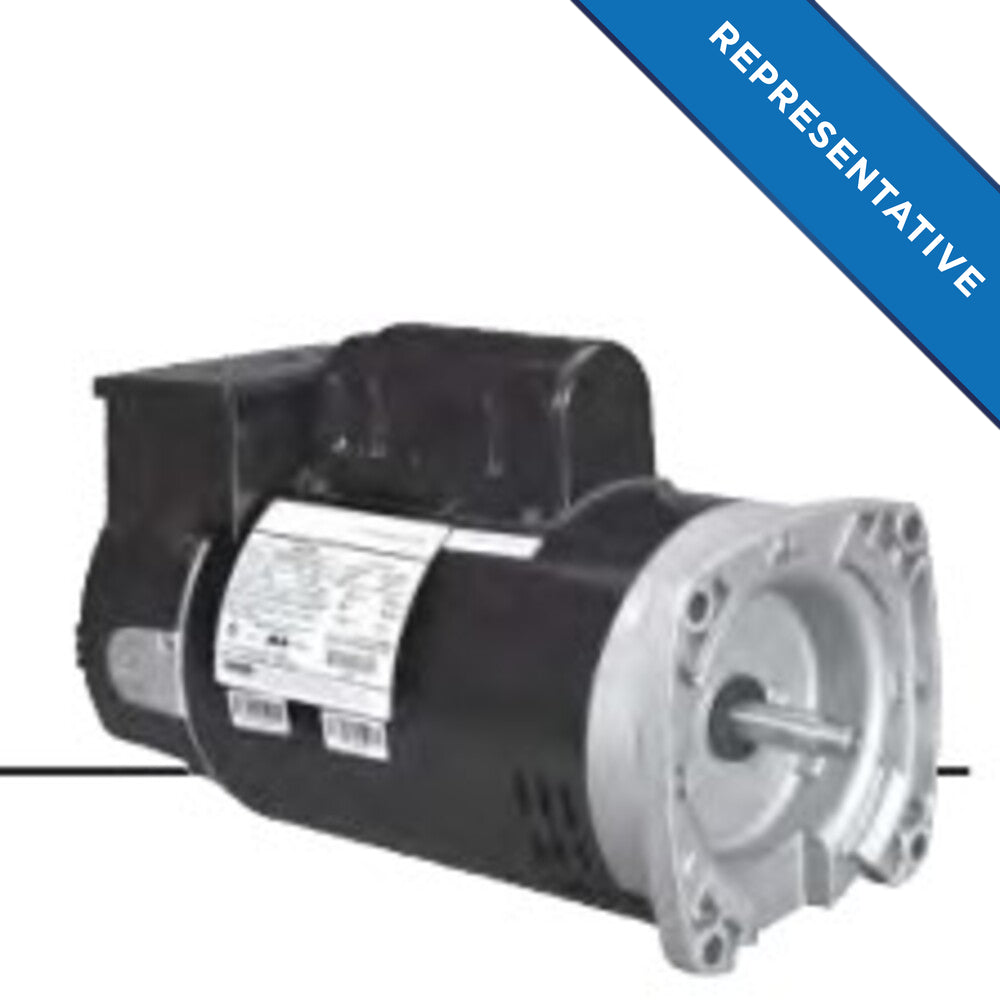

U.S. Motors EH281 Definite Purpose Three Phase ODP C-Face Motor

Product Description

The U.S. Motors EH281 is a definite purpose three-phase ODP C-face motor designed for various applications including pump motor usage. It offers a horsepower rating of one-half and operates at a speed of three thousand six hundred rpm. This motor is suitable for 208-230/460 voltage ratings and functions effectively at both sixty and fifty hertz. Its C-face mounting design allows for easier installation in constrained spaces.

• Power: 1/2 hp
• Speed: 3600 rpm
• Phase: Three

Product Highlights

The EH281 is a reliable choice for applications requiring continuous duty operations. Its open drip-proof enclosure provides added durability in varying environments.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: EH281

Technical Specifications

• Enclosure Designation: ODP - Open Drip Proof
• Full Load Amps: 1.33
• Insulation: B
• Service Factor: 1.6
• Weight: 23.0 LB
• C Dimension: 11.3 in
• Frame Size: 56C
