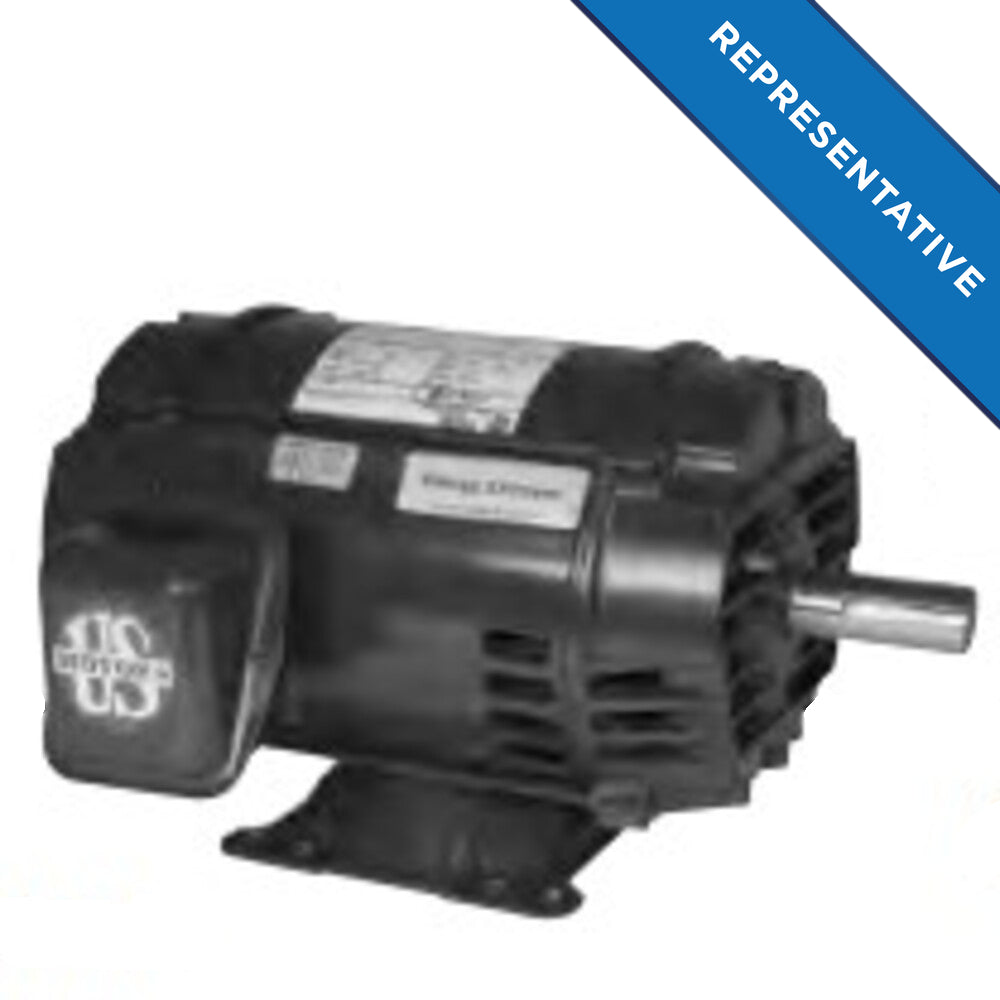

U.S. Motors D7PA2A General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D7PA2A is a three-phase motor designed for general-purpose applications. This motor has a power output of seven and a half horsepower and operates at a standard speed of one thousand eight hundred RPM. It features a voltage rating of two hundred eight to two hundred thirty or four hundred sixty volts, making it suitable for various industrial electrical systems.

• Enclosure: Open Drip Proof (ODP)
• Construction: Rolled Steel Frame
• Mounting: Horizontal - Footed Design

Product Highlights

The D7PA2A motor combines durability and efficiency, making it suitable for various applications including HVAC systems, conveyors, and material handling equipment.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D7PA2A

Technical Specifications

• Power: 7.5 HP
• Speed: 1800 RPM
• Enclosure Type: ODP
• Frame Size: 213T
• Voltage Rating: 208-230/460
• Full Load Amps: 20.5-18.5/9.2
• Service Factor: 1.15
• Efficiency: 91%
• Weight: 90 lbs
• Frequency: 60 Hz
