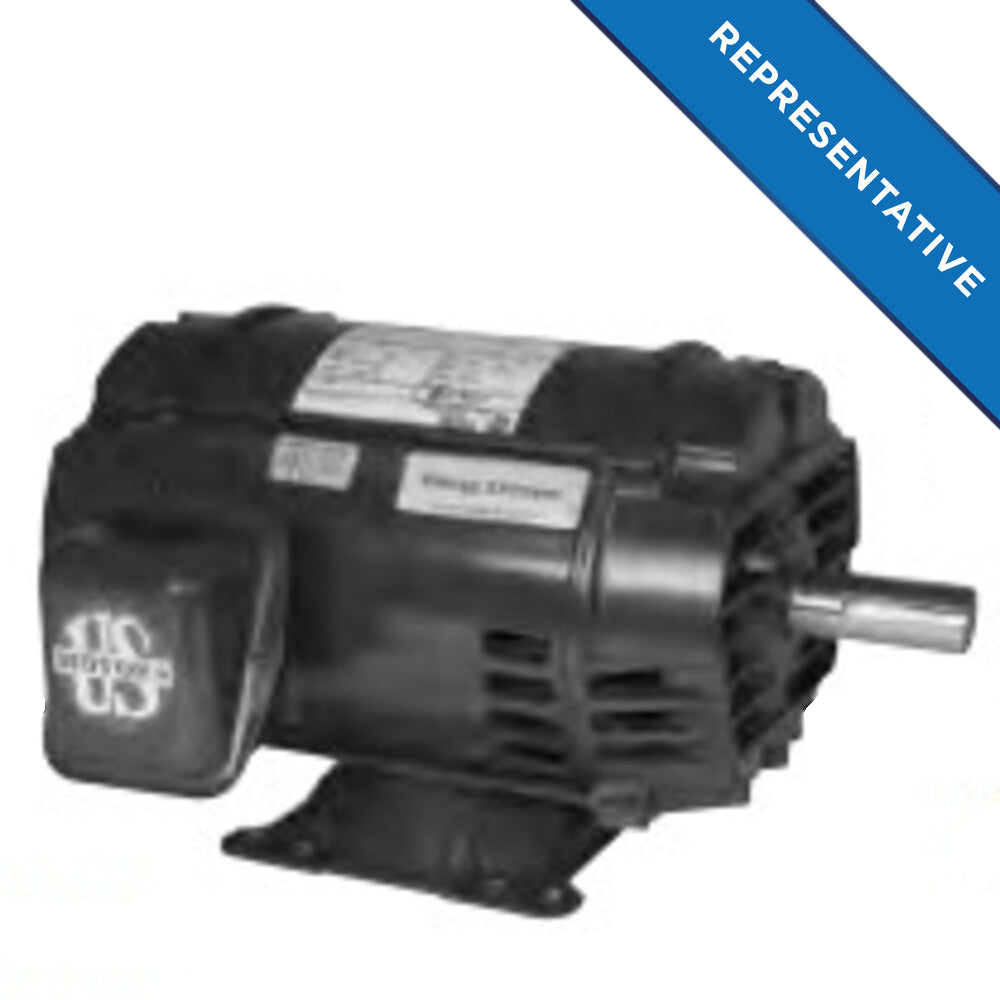

U.S. Motors D50P2FS General Purpose Three Phase ODP Horizontal - Footed Motor

Product Description

The U.S. Motors D50P2FS is a general-purpose three-phase motor designed for horizontal footed mounting. It operates at fifty horsepower and has a speed rating of one thousand eight hundred RPM. Ideal for a variety of mechanical applications, this motor supports 460 and 380 voltage ratings.

• Designed for continuous duty applications.
• ODP enclosure for protection against moisture and dust.
• Service factor of 1.15 for improved efficiency.

Product Highlights

This motor is suitable for HVAC systems, manufacturing machinery, and other industrial applications where reliable performance is required.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: D50P2FS

Technical Specifications

• Mounting: Horizontal - Footed
• Frame: 326TS
• Full Load rpm: 1470 rpm, 1780 rpm
• RPM: 1800 rpm
• Service Factor: 1.15
• Hz: 50/60 Hz
• Insulation: F
• Voltage Rating: 460 & 380
• Enclosure Designation: ODP - Open Drip Proof
• Poles: 4
• Full Load Efficiency: 94.5 %
• Full Load Amps: 56
• C Dimension: 25.7 inches
• Motor Application: General Purpose
• Duty: Continuous Duty
• Phase: Three Phase
• Weight: 415.0 pounds
• EAN or UPC: 786382096854
